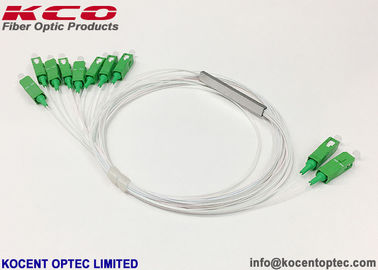

2x8 Fiber Optic Splitter PLC Splitter with Mini Blockless Tube Type for 1260 to 1650 nm Wavelength Range

  • 2x8 Fiber Optic Splitter PLC Splitter with Mini Blockless Tube Type for 1260 to 1650 nm Wavelength Range
  • 2x8 Fiber Optic Splitter PLC Splitter with Mini Blockless Tube Type for 1260 to 1650 nm Wavelength Range
  • 2x8 Fiber Optic Splitter PLC Splitter with Mini Blockless Tube Type for 1260 to 1650 nm Wavelength Range
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-Mini-2*8-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type Mini Blockless Tube Type Length 1.0m, 1.5m, 2.0m
Splitter Type 2*8 2x8 Split Way 2 Way Input & 8 Way Output
Connector SC/APC, LC/APC Cable 0.9mm
P/N KCO-Mini-2*8-SCA MOQ 1pc
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
SC/APC LC/APC 2*8 2x8 Fiber Optic Splitter Singlemode G657A2 FTTH FTTA
Product Description
FTTH FTTA 2x8 Fibre Optics Mini PLC Splitter SC/APC LC/APC 2xN Fibra Optica Splitters
Key Features
  • Singlemode PLC Splitters in a variety of package types and configurations
  • Optical performance 100% factory tested
  • UPC and APC polish types available for connectorized products
  • Low Insertion Loss
  • Low Back Reflection
  • Low PDL
Technical Description
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
The blockless splitter features small size, which is an intermediate choice between volume miniaturization and reliable fiber protection. It is suitable for installation in your system design and manufacturing.
Fiber Optic PLC splitters are characterized as uniform broadband power splitters featuring exceptional uniformity of insertion loss throughout all channels resulting in practical wavelength independency over all transmission range from 1260 to 1650 nm.
Applications
  • Long-Haul Tele/Data Communications
  • Fiber Optic Equipment and Systems
  • CATV Systems
  • Local Area Network, PON, and FTTH
  • Fiber Sensors
  • DWDM Networks

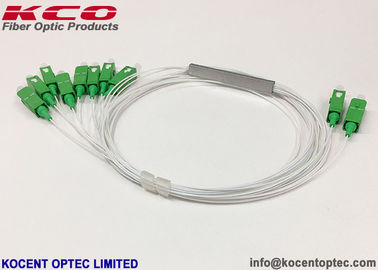

2x8 Fiber Optic Splitter PLC Splitter with Mini Blockless Tube Type for 1260 to 1650 nm Wavelength Range 0 2x8 Fiber Optic Splitter PLC Splitter with Mini Blockless Tube Type for 1260 to 1650 nm Wavelength Range 1
Technical Specifications
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Performance Specifications
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
OEM/ODM Service
We offer custom branding services for your products including cable, packaging, and labels. Contact our sales team for personalized support.
Packaging & Shipping
  • Standard Export Packaging (carton box, wooden box, pallet)
  • International express (UPS, TNT, DHL)
  • International air freight
  • Sea freight from major Chinese ports

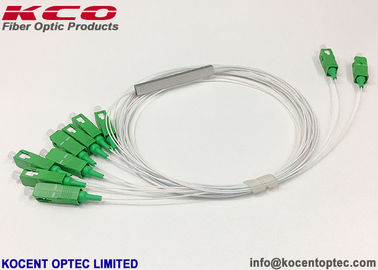

2x8 Fiber Optic Splitter PLC Splitter with Mini Blockless Tube Type for 1260 to 1650 nm Wavelength Range 2
