Duplex LC/UPC-SC/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers

  • Duplex LC/UPC-SC/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers
  • Duplex LC/UPC-SC/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers
  • Duplex LC/UPC-SC/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers
  • Duplex LC/UPC-SC/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers
  • Duplex LC/UPC-SC/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number LC-SC-UPC-MM-3.0mm-1.0m
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 LC/UPC DX Connector 2 SC/UPC DX
Mode Muti Mode Cover PVC, LSZH
Insertion Loss 0.2dB Return Loss 55dB
Diameter 3.0mm Length 1.0m, 2.0m, 3.0m,4.0m
Core 62.5/125
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description

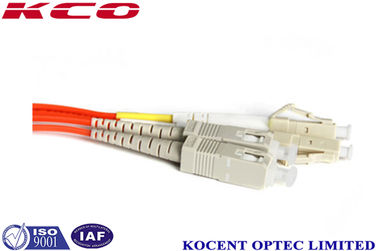

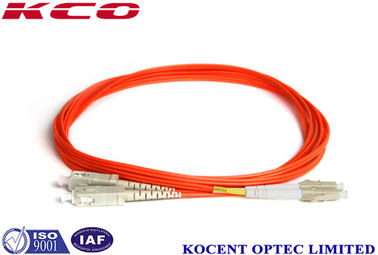

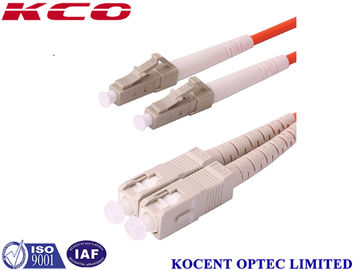

Fiber Optic Patch Cord MM DX Duplex LC/UPC-SC/UPC 3.0mm
Fiber Optic Patch Cord MM DX LC/UPC-SC/UPC 3.0mm PVC LSZH 1.0m. Kocent Optec Limited provides OEM service for all kinds of fiber optic patch cables, including common types of FC, LC, SC, ST, MT-RJ, E2000, MPO, MTP, ESCON, FDDI, DPLC, LC Uniboot, and SC Uniboot, with special expertise in LC uniboot patch cables.
We offer high-performance Duplex LC/UPC-SC/UPC optical fiber patch cords that save half the operation space required. These patch cords are the preferred option for data center high-density connectivity.
Fiber Optical Patch Cord Summary
A fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow rapid connection to CATV, optical switches, or other telecommunication equipment. Its thick protective layer connects optical transmitters, receivers, and terminal boxes. Patch cords are essential for networking, providing interconnection between optical transmission equipment and patch panels in wiring closets.
Key Features
  • High return loss, low insertion loss
  • Good exchangeability & durability
  • High reliability and stability
  • Complies with Telcordia, GR-326-Core, IEC and RoHS Standards
  • Multimode (MM) based on 50/62.5-125um fibre
  • Ceramic Ferrule
Applications
  • Fiber optic communication network
  • Fiber broadband access network
  • CATV
  • Active device termination
  • Metro and Local Area Networks
  • Telecommunication networks
  • Data processing networks
Ordering Options
  1. Connector type: FC, SC, LC, ST
  2. Ferrule End-face: PC, UPC, APC
  3. Core Type: Multi Mode 62.5/125
  4. Fiber Core: Duplex
  5. Cable Diameter: φ3.0mm, φ2.0mm, φ0.9mm
  6. Cable Length: 1, 2, 3 meter or customized
  7. Cable type: PVC, LSZH
Specifications
Mode SM MM
Polish UPC APC | PC
Insertion Loss Typical ≤0.2dB Maximum ≤0.3dB ≤0.25dB
Return Loss ≥50dB ≥65dB | ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strength > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB (+25+65 93 R.H.100 hours)
Duplex LC/UPC-SC/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers 0 Duplex LC/UPC-SC/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers 1 Duplex LC/UPC-SC/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers 2 Duplex LC/UPC-SC/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers 3
OEM/ODM Service
We can display your brand LOGO on cables, packaging bags, labels, or anywhere else. Our OEM and ODM service is always ready to accommodate your branding needs.
Packing
Standard Export Packing: Carton box, wooden box, wooden pallet.
Shipping
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
