OM1 Orange MT-RJ/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers

  • OM1 Orange MT-RJ/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers
  • OM1 Orange MT-RJ/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers
  • OM1 Orange MT-RJ/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers
  • OM1 Orange MT-RJ/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers
  • OM1 Orange MT-RJ/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MT-RJ-UPC-MM-3.0mm-2.0m
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector MT-RJ/UPC Mode Muti Mode
Cover PVC, LSZH Insertion Loss 0.2dB
Return Loss 55dB Diameter 3.0mm
Length 1.0m, 2.0m, 3.0m,4.0m Core 62.5/125
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description
OM1 Orange MTRJ E2K DIN MU PVC LSZH Fibre Optic Patch Cord Diameter 3.0mm
Product Overview
OM1 Orange MT-RJ/UPC PVC LSZH 2.0m Fiber Optic Patch Cord MM 3.0mm
Kocent Optec Limited provides OEM service for all fiber optic patch cables, including FC, LC, SC, ST, MT-RJ, E2000, MPO, MTP, ESCON, FDDI, DPLC, LC Uniboot, and SC Uniboot connectors. Our MT-RJ/UPC optical fiber patch cords offer high optical performance while saving 50% of the operation space required, making them ideal for data center high-density connectivity.
Key Features
  • High return loss, low insertion loss
  • Excellent exchangeability & durability
  • High reliability and stability
  • Complies with Telcordia GR-326-Core, IEC and RoHS Standards
  • Multimode (MM) based on 50/62.5-125um fibre
  • Ceramic Ferrule construction
Applications
  • Fiber optic communication networks
  • Optical Distribution Frames
  • CATV systems
  • Fiber instruments
  • Metro and Local Area Networks
  • Spectral measurement equipment
  • Data processing networks
Technical Specifications
Mode SM MM
Polish UPC APC | PC
Insertion Loss Typical ≤0.2dB
Maximum ≤0.3dB		 ≤0.25dB
Return Loss ≥50dB ≥65dB | ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strength > 10kg
Temperature ≤0.2dB (-40°C to +85°C sustain 100 hours)
Humidity ≤0.2dB (+25°C to +65°C at 93% R.H. for 100 hours)
Product Images

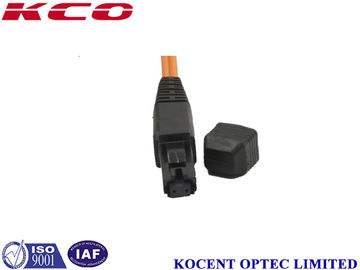

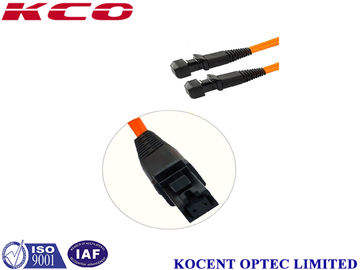

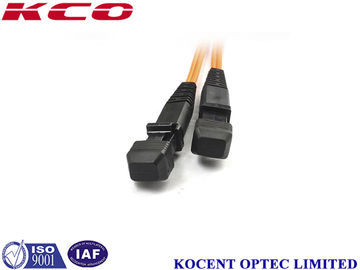

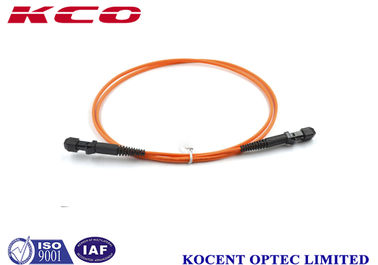

OM1 Orange MT-RJ/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers 0 OM1 Orange MT-RJ/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers 1 OM1 Orange MT-RJ/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers 2 OM1 Orange MT-RJ/UPC Fiber Optic Patch Cord with 3.0mm Diameter and 62.5/125 Core for High Density Data Centers 3
Ordering Options
  1. Connector type: MT-RJ
  2. Ferrule End-face: PC, UPC, APC
  3. Core Type: Multi Mode 62.5/125
  4. Cable Diameter: φ3.0mm, φ2.0mm, φ0.9mm
  5. Cable Length: 1, 2, 3 meter or customized
  6. Cable type: PVC, LSZH
OEM/ODM Service
We offer custom branding services for your cable, packaging, labels, or any visible surface. Our OEM and ODM services can accommodate your specific branding requirements.
Packaging & Shipping
Packaging: Standard export packaging options including carton boxes, wooden boxes, and wooden pallets.
Shipping Methods: International express (UPS, TNT, DHL), international air freight (CA, AA, EA), and sea freight.
