KCO-ODP-16W Fiber Optic Terminal Box Lightweight Chemical Resistance

  • KCO-ODP-16W Fiber Optic Terminal Box Lightweight Chemical Resistance
  • KCO-ODP-16W Fiber Optic Terminal Box Lightweight Chemical Resistance
  • KCO-ODP-16W Fiber Optic Terminal Box Lightweight Chemical Resistance
  • KCO-ODP-16W Fiber Optic Terminal Box Lightweight Chemical Resistance
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODP-16W
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS+PC Insertion Loss 0.15dB
Return Loss 55dB Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 16 Fibers Fo
High Light

optical termination box

,

fibre termination box
Leave a Message
Product Description

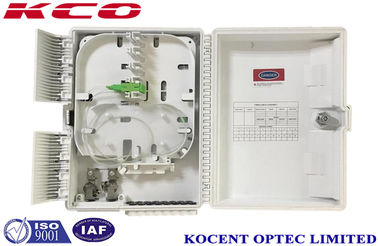

KCO-ODP-16W Water-proof Fiber Optic Splitter Box For 2*16 1*16 PLC Splitter Terminal Box



Descriptions:

- The water-proof fiber optic splitter box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

- The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.



Specification:

Product Name 16 core fiber optic distribution box(termination box)
Shape Total enclosed structure, be in nice shape
size 292mm(H)*218mm(W)*83mm(D)
Weight 1.5KG
Material PC+ABS

Material characteristic		 1. Wet-proof, water-proof, dust-proof, protection level up to IP67
2. Construction-lightweight plastic offers strength
3. Resistance to chemical and U.V attack
4. Wall mounting or pole mounting.
Item KCO-ODP-16W
Main Technical Data Capacity
Insertion loss ≤0.2dB

1*16 PLC splitter

2*16 PLC Splitter

SC/LC/FC/ST/E2000 adapter
UPC return loss ≥50dB
APC return loss ≥60dB



Products photos:

KCO-ODP-16W Fiber Optic Terminal Box Lightweight Chemical Resistance 0



KCO-ODP-16W Fiber Optic Terminal Box Lightweight Chemical Resistance 1

KCO-ODP-16W Fiber Optic Terminal Box Lightweight Chemical Resistance 2



KCO-ODP-16W Fiber Optic Terminal Box Lightweight Chemical Resistance 3

KCO-ODP-16W Fiber Optic Terminal Box Lightweight Chemical Resistance 4

Application:

- Widely used in FTTH access network.

- Telecommunication networks.

- CATV Networks.

- Data communications networks.

- Local Area Networks.



Features:

- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
- Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adapter installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
- Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.



Specifications:

- Operating Temperature: -25°C~+45°C

- Relative Hunmidity: ≤95%(40°C)

- Atmosphere Pressure: 70KPa~106KPa

- Insulated Resistance: ≥2x104MΩ/500v(DC)

- Dielectric Strength: ≥15KV(DC)/1min,no spark-over and no flying arc

- Fiber Bend Radius: ≥40mm



Dimension:

Model
Capacity
Dimension (LxWxH)
Weight
KCO-ODP-16W
1*16 PLC splitter, 16 SC adaptors
2*16 PLC Splitter, 16 SC adapters
292×218×83 mm
1.5kg

KCO-ODP-16W Fiber Optic Terminal Box Lightweight Chemical Resistance 5

Packing:

1. Wall mounting kits: 4 pieces
2. Screws: 4 pieces
3. Cable tie: 10 pieces
4. Heat shrink protective sleeves: 16 pieces
5. Key: 1 piece

KCO-ODP-16W Fiber Optic Terminal Box Lightweight Chemical Resistance 6
