GPON Ftth Distribution Box / Optical Fiber Termination Box Long Life Time

  • GPON Ftth Distribution Box / Optical Fiber Termination Box Long Life Time
  • GPON Ftth Distribution Box / Optical Fiber Termination Box Long Life Time
  • GPON Ftth Distribution Box / Optical Fiber Termination Box Long Life Time
  • GPON Ftth Distribution Box / Optical Fiber Termination Box Long Life Time
  • GPON Ftth Distribution Box / Optical Fiber Termination Box Long Life Time
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODP-12W
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month
Product Details
Material ABS+PC Insertion Loss 0.15dB
Return Loss 55dB Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 16 Fibers Fo
Highlight

fibre termination box

,

outdoor terminal box
Leave a Message
Product Description

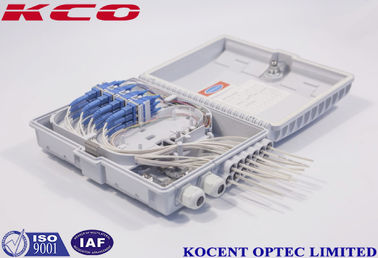

GPON FTTH Fiber Optic Distribution Box - KCO-ODP-12W
Outdoor Waterproof IP66 Distribution Box
12-port outdoor pole mounted fiber optic terminal box designed for FTTH drop cable entry and exit applications.
Product Overview
The KCO-ODP-12W fiber optic terminal box serves as a comprehensive distribution point in optical fiber transmission and communication networks. This robust enclosure integrates fiber splicing, splitting, distribution, storage, and cable connection functions within a single, solid protection unit.
Key Features
  • Constructed from durable ABS+PC plastic materials
  • Extended operational lifespan with reliable performance
  • Compatible with 1x4, 1x6, 1x8, and 1x12 PLC splitters
  • Rainfall resistant with IP65 outdoor rating
  • Supports up to 12 LC, FC, ST, SC, or E2000 adapters
  • Flexible installation: wall mounting and pole mounting
  • Reinforced cover with easy-open closing mechanism
  • 2 cable entry ports (max. 8mm diameter) for uncut cable installation
  • 2 M20 PG cable gland entry ports (max. 12mm cable diameter)
  • 12 exit ports dedicated for FTTH drop cables
Installation Method
GPON Ftth Distribution Box / Optical Fiber Termination Box Long Life Time 0
Product Images
GPON Ftth Distribution Box / Optical Fiber Termination Box Long Life Time 1
GPON Ftth Distribution Box / Optical Fiber Termination Box Long Life Time 2
GPON Ftth Distribution Box / Optical Fiber Termination Box Long Life Time 3
Box Details
GPON Ftth Distribution Box / Optical Fiber Termination Box Long Life Time 4
GPON Ftth Distribution Box / Optical Fiber Termination Box Long Life Time 5
Technical Specifications
Model KCO-ODP-12W
Material PC+ABS
Dimension 260*230*70mm
Cable Entry 1 uncut cable entrance: 10-16.5mm
Drop Cable Port 12 ports
Applicable Cable Diameter 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable
Max. Capacity 12 Fibers, 1 tray x 12F
Adapter Max. 12pcs SC simplex (LC, FC, MT optional)
Sealing Structure Mechanical sealing with PE waterproof sealing ring
PLC Splitter Max. micro plug-in 1x12 Splitter
Color Gray White or Black
IP Grade IP55
Operating Temperature -40°C~+80°C
Relative Humidity <95%(+40°C)
Insulated Resistance >2x10MΩ/500V(DC)
Installation Method Floor Standing / Wall Mounted / Pole Mounted / Corridor Mounted / Mounted in Cabinet
Additional Model Dimensions
Model Capacity Dimension (LxWxH) Weight
KCO-ODP-16W 1*16 PLC splitter, 16 SC adaptors
2*16 PLC Splitter, 16 SC adapters		 292*218*83 mm 1.5kg
GPON Ftth Distribution Box / Optical Fiber Termination Box Long Life Time 6
