Telecommunication Networks Fiber Optic Terminal Box / Outdoor Terminal Box

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODP-12W
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS+PC Insertion Loss 0.15dB
Return Loss 55dB Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 16 Fibers Fo
High Light

fibre termination box

,

outdoor terminal box

Leave a Message
Product Description

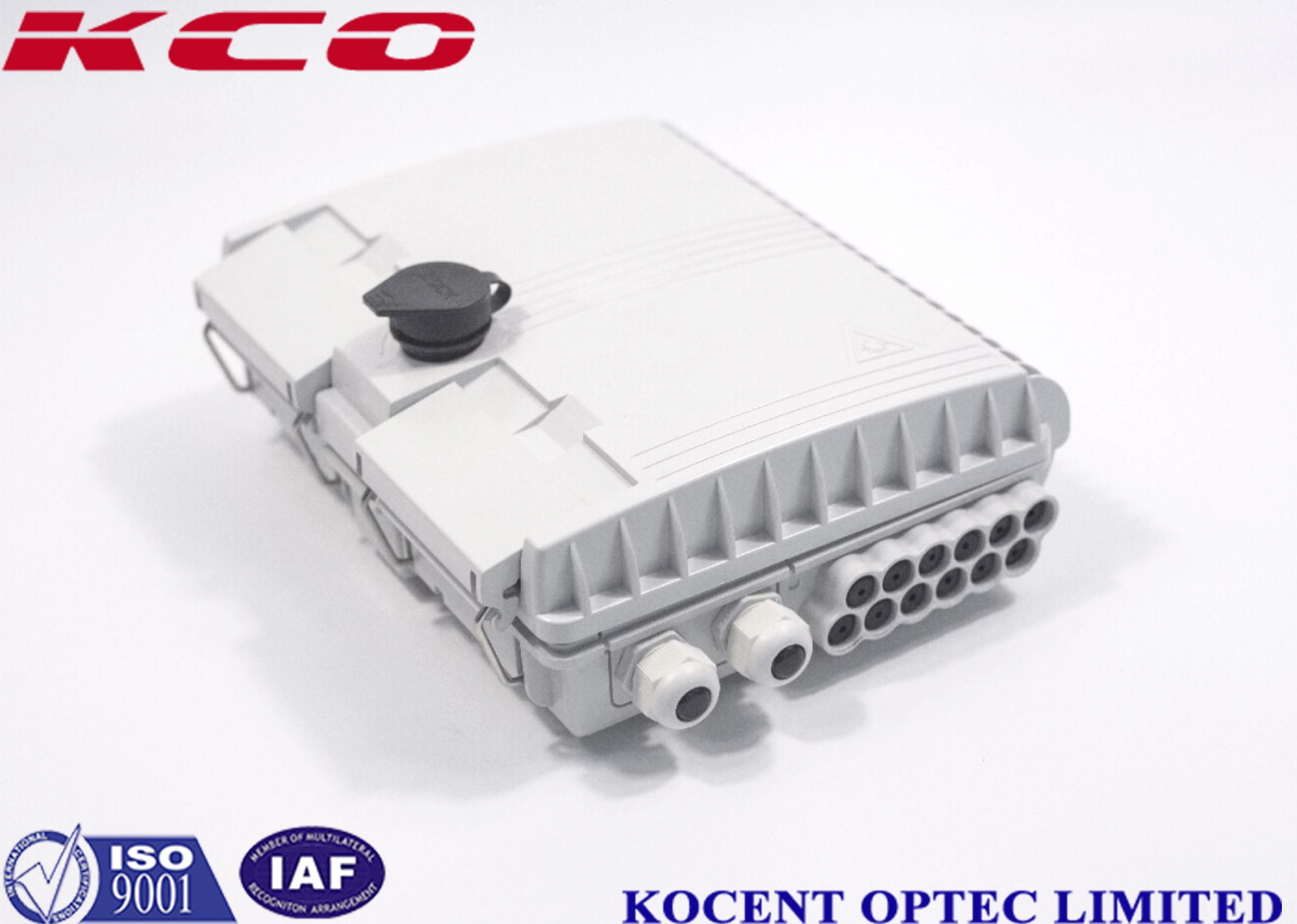

KCO-ODP-12W 12core Fiber Optic Distribution Splitter Termination Box Outdoor IP67 FDB​



Descriptions:
- KCO-ODP-12W 12core Fiber Optic Distribution Splitter Termination Box is able to hold up to 12 subscribers.

- It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

- It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.



Application
- Widely used in FTTH access network
- Telecommunication networks
- CATV networks
- Data communication networks

- Local area Networks

Wall mounting and pole mounting installation


Features
- Industry standard user interface, be made of high impact plastic
- Anti-UV, ultra violet resistant and rainfall resistant
- Suitable for SC, FC or ST, duplex LC, or E2000 adapter
- Wall and pole mountable

- 2 inlet ports, 12 outlet ports

- Can uploard 12 pcs of FC, SC, ST or E2000 simplex adapter or 12 pcs of LC duplex adapter.

- Can install 1 pc of 1*12 PLC splitter, or 1 pc of 1*8 PLC Spltiter or 2 pcs of 1*6 PLC splitter or 3 pcs of 1*4 PLC Splitter or 6 pcs of 1*2 PLC Splitter.

- Made by ABS + PC high quality platics, longer time life.

- IP67  Water-proof Level, suiable to istall outdoor.

- FTTH pre-installation and filed installation


Installation way:
Telecommunication Networks Fiber Optic Terminal Box / Outdoor Terminal Box 0



Products photos:
The distibution box is made by ABS & PC to splice and connect fibers in FTTX network system, and it uses key and buckles to close the box, and there is waterproof seal rubber around of the cover. All these designs keep the box sealed and the IP level is IP67.



There are 1 pcs splice tray and one adapter panel which can install max. 12 pcs SC simplex adapters (LC FC MT is optional).

At the bottom of box, it is designed to coil and store fibers. The whole box is able to hold up to 12 subscribers.

Telecommunication Networks Fiber Optic Terminal Box / Outdoor Terminal Box 1



The adapter plate can accommodate max. 12 pcs SC adapters, working with 1 pcs splice tray which can be flipped up for 12 splicing fibers.

Telecommunication Networks Fiber Optic Terminal Box / Outdoor Terminal Box 2



The metal parts are stainless steel which is used to fix the fiber optic cable.This box has 12 outlets protected by PE waterproof sealing ring for drop cable. The inlet or outlet cable can be fixed by the metal rack, and the distribution box can be installed on wall or pole with metal hoop and anti-rusting bolts, nuts.

Telecommunication Networks Fiber Optic Terminal Box / Outdoor Terminal Box 3



Technical data:

Work temperature: -40℃~+85℃

Relative humidity: ≤85%(+30℃)

Insert loss: ≤0.2dB

Return loss APC: ≥55dB

                   UPC: ≥50dB

Atmospheric pressure: 70Kpa~106Kpa

Return loss insert end: ≥60dB

Pull out life insulation: ≥1000times



Specifications:

Model KCO-ODP-12W
Material PC+ABS
Dimension 260*210*95mm
Cable Entry 1 uncut cable entrance: 10-16.5mm
Drop cable port 12 ports
Applicable cable diameter 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable
Max. Capacity 12 Fibers, 1 tray x 12F
Adapter Max. 12pcs SC simplex (LC, FC, MT optional)
Sealing structure Mechanical sealing with PE waterproof sealing ring
PLC Splitter Max. micro plug-in 1x12 Splitter
Color Gray White or Black
IP Grade IP55
Operating Temperature -40°C~+80°C
Relative Humidity <95%(+40°C)
Insulated Resistance >2x10MΩ/500V(DC)
Installation Method
(in overstriking)
Floor Standing / Wall Mounted / Pole Mounted /
Corridor Mounted / Mounted in Cabinet





OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Telecommunication Networks Fiber Optic Terminal Box / Outdoor Terminal Box 4



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
