Custom Color Fiber Optic Distribution Box 24 Port 24 Core FTTH FTTA GPON

  • Custom Color Fiber Optic Distribution Box 24 Port 24 Core FTTH FTTA GPON
  • Custom Color Fiber Optic Distribution Box 24 Port 24 Core FTTH FTTA GPON
  • Custom Color Fiber Optic Distribution Box 24 Port 24 Core FTTH FTTA GPON
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-FDP-24M
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month
Product Details
Part Number KCO-FDP-24M Material ABS+PC
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 24 Fibers Fo
Highlight

fibre termination box

,

outdoor terminal box
Leave a Message
Product Description
Custom Color Fiber Optic Distribution Box 24 Port 24 Core FTTH FTTA GPON
Product Overview

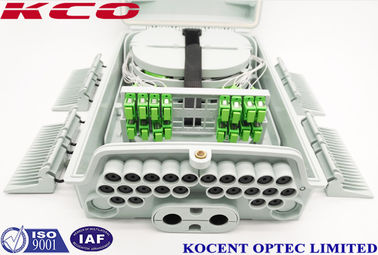

KCO-FDP-24M Fiber Optic CTO Distribution Box - Outdoor Water Proof 24-port 24-core FTTH FTTA GPON solution designed for reliable fiber optic network distribution.

Key Features
  • Water-proof design with IP-65 Protection Level
  • Suitable for indoor and outdoor use, wall mount and pole mount applications
  • Integrated with 4 flip-up splice cassettes and adapter holder
  • All stainless steel metal plate and anti-rusting bolts, nuts
  • Fiber bend radius control more than 40mm
  • Compatible with fusion splicer or mechanical splice
  • Optional installation of 2 pieces of 1*8 Splitter
  • Mechanical sealing structure and mid-span cable entry
  • 16/24 output ports for drop cable
Technical Specifications
ModelKCO-FDB-24M
MaterialPC+ABS
Dimension345×220×95mm
Cable Port1 uncut port, 2 reserved cable entrance
Cable DimensionUncut port: 10-16.5mm; Reserved ports: 8-16.5mm
Cable Output16/24 outputs for drop cable
Max. Capacity96 Fibers (4 trays, 24F/tray)
Sealing StructureMechanical sealing (buckle and screw)
PLC SplitterMax. micro 1x16 Splitter, 2 pcs 1×8 PLC Splitter
ColorGray
IP GradeIP65
ApplicationWall mount, pole mount
Weight1.7kg
Ordering Information
Capacity Splitter Connector Adapter Logo
24 cores1×2SC/UPCSC/UPCKCO
1×4SC/APCSC/APCcustomized
1×6FC/UPCFC/UPC...
1×8FC/APCFC/APC
1×12ST/UPCST/UPC
1×16LC/UPCLC/UPC
1×24LC/APCLC/APC
Product Images
Custom Color Fiber Optic Distribution Box 24 Port 24 Core FTTH FTTA GPON 0 Custom Color Fiber Optic Distribution Box 24 Port 24 Core FTTH FTTA GPON 1 Custom Color Fiber Optic Distribution Box 24 Port 24 Core FTTH FTTA GPON 2
OEM/ODM Services

We offer comprehensive OEM and ODM services. Custom branding available on products, packaging bags, labels, or any required location.

Packing & Shipping

Standard export packing with carton box, wooden box, or wooden pallet options.

Custom Color Fiber Optic Distribution Box 24 Port 24 Core FTTH FTTA GPON 3
Shipping Methods
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • Sea freight
