Outdoor Wall Mountable Metallic Optical Fiber Termination Box 72/96 Cores

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODB-72A
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 5,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material Steel Tape Cable Port 4 Cable Ports
Splitter 1x2, 1x4, 1x8, 1x12, 1x16, 1x24 Adapter SC, FC, LC, ST, E2000
Application Indoor, Wall Mount, Pole Mount Capacity 24/48/72/96 Cores
High Light

optical termination box


fibre termination box

Leave a Message
Product Description

KCO-ODB-72A 72core 96cores

Outdoor Wall-mountable Metallic Optical Terminal Fiber Distribution Box


The wall-mountable terminal box series is the auxiliary equipment of the terminal wiring in the optical fiber transmission and communication network. The terminal box is mainly used for the fixing of fiber optic cable terminal, the splicing of fiber optic cable and pigtail and the storage and protection of residual fiber.


Product Photo:

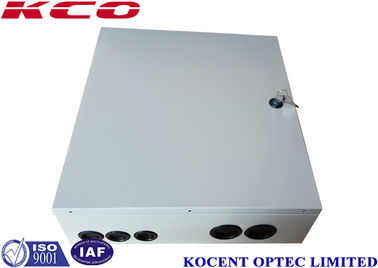

Outdoor Wall Mountable Metallic Optical Fiber Termination Box 72/96 Cores 0

Outdoor Wall Mountable Metallic Optical Fiber Termination Box 72/96 Cores 1

Over View:

- The Fiber Optic Distriution Box is available for small capacity communication system, wall mounting, reasonable and compact structure, harmonized with machine room.

- The Fiber Optic Distriution Box is composed of two parts, one links with optional cables for fusion connection between optical cables and fiber pigtail and another links with patch cords.

- The Fiber Optic Distriution Box provide fusion and storage appliance for optical cables.

- Reliable protection appliance of fixing, stripping and earthing for optical cables.

- Whole range protected design for fiber lay to ensure the bending radius=40mm.

- Provide various accessories to avoid any unexpected damage to the fiber.

- Suitable for the protective connection between cables and pigtails.
- Suitable for the connection between optical cables and optical communication device.
- Small volume, unique structure, easy installation, for indoor use.
- With common type of adapter plate, the box is suitable with all type of adapter such as FC, LC, SC, ST, E2000, ...
- Double doors design, more easy and convenient for maintain.
- Suitable for Pigtail, ribbon and bunch cable connect distribution
- Used for wall-mounted and pole mount applications
- Used in FTTH, Telecommunications, CATV ect.


Quick Information:

Name: 48 Fibers Outdoor Fiber Optic Distribution Box (FDB type)

Part number: KCO-ODB-72A

Capacity: 4 cores SC/FC/ST, 96 cores LC

Tray numner: 2 trays

Material: Steel tape

Thickness: 1.0mm/1.2mm

Size: 400*4000*100mm

Colow: Grey, Black (optinal)


Environmental Requirement
Working temperature
Relative humidity
Atmospheric pressure
Thunder-proof Technical Data
The grounding device is isolated with the cabinet, isolation resistance is no less than 2 104 MΩ/500V (DC);IR≥2 104 MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V (DC )/min, no puncture,no flashover; U≥3000V


Technical Data:

Insulation resistance
The insulation resistance between the metallic terminal of the optical cable terminal and the metal reinforcing core of the optical cable, between the metallic components of the optical cable, between the metallic component of the optical cable and the ground is greater than 20000MΩ (the test voltage is 500VDC)
Dielectric strength
cable terminal box metal components and fiber optic cable between the metal core, the light between the metal components of the optical cable between the metal components and ground in the 15KV DC voltage 1min without breakdown, no arcing phenomenon
Environment temperature
Relative humidity



Ordering information:

P/N Cores Tray number Adapter Pigtail Pigtail Diameter Pigtail Length Splitter
KCO-ODB-48A 48 cores 2 SC/UPC SC/UPC 0.9mm 0.5m 1x2
KCO-ODB-72A 72 cores 3 FC/UPC FC/UPC 2.0mm 1.0m 1x4
ST/UPC ST/UPC 3.0mm 1.5m 1x6
      LC/UPC LC/UPC Fan-out 0.9mm 2.0m 1x8
      E2000/UPC E2000/UPC Break out 2.0mm 1x12
      SC/APC SC/APC   1x16
      FC/APC FC/APC     1x24
      LC/APC LC/APC     1x32
      E2000/APC E2000/APC


Kocent Optec Limited supplys all capacity of terminal box, such as 4ports, 8 ports, 12ports, 36ports, 48ports, ... And can loading with telecom grade of pigtail and adpater. Please contact with our sales team to get more detail about this series of terminal box.


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Outdoor Wall Mountable Metallic Optical Fiber Termination Box 72/96 Cores 2

According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

Outdoor Wall Mountable Metallic Optical Fiber Termination Box 72/96 Cores 3
