Indoor Wallmount Mini Size Fiber Optic Terminal Box with Steel Tape Construction for FTTH Projects

  • Indoor Wallmount Mini Size Fiber Optic Terminal Box with Steel Tape Construction for FTTH Projects
  • Indoor Wallmount Mini Size Fiber Optic Terminal Box with Steel Tape Construction for FTTH Projects
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-FTB04M-SCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Tape Cable Port 1 Cable Ports
Splitter 1x2, 1x4 Adapter SC/UPC Or SC/APC
Application Outdoor, Wall Mount, Pole Mount Capacity 4 Cores
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description

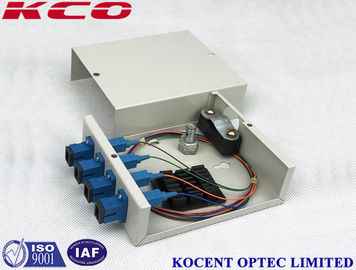

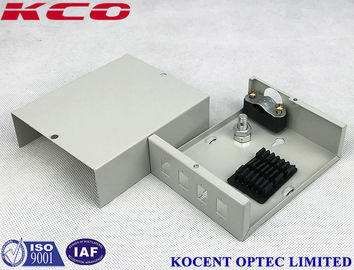

Indoor Wallmount Fiber Optic Terminal Box 4 Port Full-load Mini Size With SC/UPC Adapter
KCO-FTB04M fiber optic terminal box is designed for distribution and terminal connection in various optical fiber systems, particularly suited for mini-network terminal distribution where optical cables, patch cores or pigtails need to be connected.
Product Overview
The KCO-FTB04M-SCU model is configured for 4-core splicing and management, fully loaded with SC/UPC adapters and pigtails. The adapter ports can accommodate SC, LC, FC, and ST ports to meet specific customer requirements.
Key Features
  • Constructed with cold-roll steel and electrostatic painting
  • Compatible with various adapters: FC, SC, ST, LC
  • 4-8 fibers splicing module inside
  • Capacity for 4 adapters
  • Hinge with convenient press-pull button lock design
  • Designed for indoor wall-mounted applications
  • Mini size (115x95x35mm) and lightweight (0.3kg)
  • Ideal for FTTH (Fiber to the Home) projects
Applications
  • Pigtail, ribbon and bunch cable connection distribution
  • Wall-mounted installations
  • FTTH, Telecommunications, CATV systems
Specifications
Item KCO-FTB04M-SCU
Name SC/UPC single mode fiber optic terminal box
Size 115*95*35mm
Weight 0.3kg
Thickness 0.6mm
Cable port 2
Adapter port 4
Color Black/Grey
Model Variants
Model Capacity Dimension Remark Adapter and Pigtail
KCO-FTB04M-SCU 4 cores 115x95x35 mm 2*cable ports, 4*adapter ports Full load with 4*SC/UPC adapter and 4* SC/UPC Pigtail
KCO-FTB04M-SCA 4 cores 115x95x35 mm 2*cable ports, 4*adapter ports Full load with 4*SC/APC adapter and 4* SC/APC Pigtail
KCO-FTB04M-DLCU 8 cores 115x95x35 mm 2*cable ports, 4*adapter ports Full load with 4*Duplex LC/UPC adapter and 8* LC/UPC Pigtail
KCO-FTB04M-DLCA 8 cores 115x95x35 mm 2*cable ports, 4*adapter ports Full load with 4*Duplex LC/APC adapter and 8* LC/APC Pigtail
KCO-FTB04M-FCU 4 cores 115x95x35 mm 2*cable ports, 4*adapter ports Full load with 4*FC/UPC adapter and 4* FC/UPC Pigtail
KCO-FTB04M-FCA 4 cores 115x95x35 mm 2*cable ports, 4*adapter ports Full load with 4*FC/APC adapter and 4* FC/APC Pigtail
KCO-FTB04M-STU 4 cores 115x95x35 mm 2*cable ports, 4*adapter ports Full load with 4*ST/UPC adapter and 4*ST/UPC Pigtail
OEM/ODM Service
We offer custom branding options for cables, packaging, labels or any visible components. Our OEM and ODM services can accommodate your specific branding requirements.
Packaging
Standard export packaging options include carton boxes, wooden boxes, and wooden pallets.
Shipping Options
  • International express: UPS, TNT, DHL
  • International air: CA, AA, EA
  • Sea freight
Indoor Wallmount Mini Size Fiber Optic Terminal Box with Steel Tape Construction for FTTH Projects 0
Indoor Wallmount Mini Size Fiber Optic Terminal Box with Steel Tape Construction for FTTH Projects 1
Indoor Wallmount Mini Size Fiber Optic Terminal Box with Steel Tape Construction for FTTH Projects 2
Indoor Wallmount Mini Size Fiber Optic Terminal Box with Steel Tape Construction for FTTH Projects 3
