8 Port Wall Mount Indoor Fiber Optic Termination Box with IP55 Protection and Metallic Black Finish

  • 8 Port Wall Mount Indoor Fiber Optic Termination Box with IP55 Protection and Metallic Black Finish
  • 8 Port Wall Mount Indoor Fiber Optic Termination Box with IP55 Protection and Metallic Black Finish
  • 8 Port Wall Mount Indoor Fiber Optic Termination Box with IP55 Protection and Metallic Black Finish
  • 8 Port Wall Mount Indoor Fiber Optic Termination Box with IP55 Protection and Metallic Black Finish
  • 8 Port Wall Mount Indoor Fiber Optic Termination Box with IP55 Protection and Metallic Black Finish
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-FTB08M-SCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Tape Cable Port 2 Cable Ports
Splitter 1x2, 1x4 Adapter SC/UPC Or SC/APC
Application Wall Mount Capacity 8 Cores
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
IP55 Fiber Optical Wall Mount Termination Box - 8 Port FC/ST/SC/LC/E2000 Indoor Metallic Black
The KCO-FTB08M fiber optic terminal box is designed for 8-port terminal connections, providing distribution and terminal connection for various optical fiber systems. Ideal for mini-network terminal distribution where optical cables, patch cores, or pigtails need connection.
Key Features
  • Cold rolled sheet steel shell with electrostatic spraying
  • Fiber access, pigtail drop and fixed function
  • Provides fiber connector protection and pigtail fiber storage
  • Strength core of fiber can be fixed inside the box
  • Can connect fiber metallic outer jacket for earth lead function
  • Suitable for both ribbon fiber and normal fiber
  • Hinge and convenient press-pull button lock design
  • Mini size and lightweight for wall-mounted applications
Applications
  • Indoor fiber cable straight through or branch continuity
  • Wire distribution and end connection of optical fiber systems
  • Local Area Network (LAN)
  • Wide Area Network (WAN)
  • CATV Network
  • FTTX System
  • Test Instruments
  • Fiber to the home (FTTH) projects
Specifications
Item KCO-FTB08M-SCU
Name SC/UPC single mode fiber optic terminal box
Size 140×130×30mm
Weight 0.35kg
Thickness 0.6mm
Cable port 2
Adapter port 8
Color Black/Grey
Model Variations
Model Capacity Dimension Remark Adapter and Pigtail
KCO-FTB08M-SCU 8 cores 115×95×35 mm 2×cable ports, 8×adapter ports Full load with 8×SC/UPC adapter and 8×SC/UPC Pigtail
KCO-FTB08M-SCA 8 cores 115×95×35 mm 2×cable ports, 8×adapter ports Full load with 8×SC/APC adapter and 8×SC/APC Pigtail
KCO-FTB08M-DLCU 8 cores 115×95×35 mm 2×cable ports, 8×adapter ports Full load with 8×Duplex LC/UPC adapter and 8×LC/UPC Pigtail
KCO-FTB08M-DLCA 8 cores 115×95×35 mm 2×cable ports, 8×adapter ports Full load with 8×Duplex LC/APC adapter and 8×LC/APC Pigtail
KCO-FTB08M-FCU 8 cores 115×95×35 mm 2×cable ports, 8×adapter ports Full load with 8×FC/UPC adapter and 8×FC/UPC Pigtail
KCO-FTB08M-FCA 8 cores 115×95×35 mm 2×cable ports, 8×adapter ports Full load with 8×FC/APC adapter and 8×FC/APC Pigtail
KCO-FTB08M-STU 8 cores 115×95×35 mm 2×cable ports, 8×adapter ports Full load with 8×ST/UPC adapter and 8×ST/UPC Pigtail
Product Images

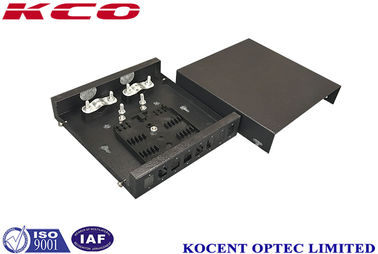

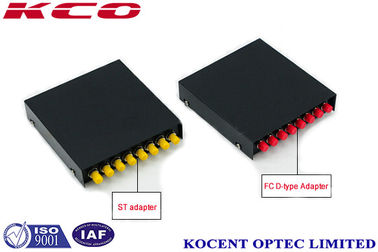

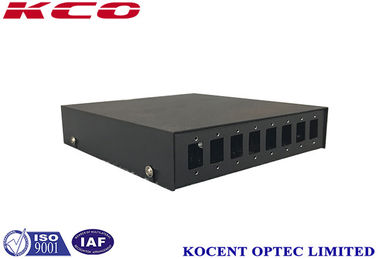

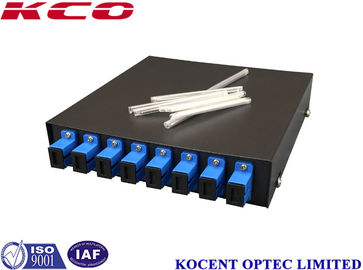

8 Port Wall Mount Indoor Fiber Optic Termination Box with IP55 Protection and Metallic Black Finish 0 8 Port Wall Mount Indoor Fiber Optic Termination Box with IP55 Protection and Metallic Black Finish 1 8 Port Wall Mount Indoor Fiber Optic Termination Box with IP55 Protection and Metallic Black Finish 2
OEM/ODM Service
Custom branding available for goods, packaging, labels, or any visible area. Our OEM and ODM service can accommodate your specific requirements.
Packing & Shipping
  • Standard export packing options: carton box, wooden box, wooden pallet
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • Sea freight available
8 Port Wall Mount Indoor Fiber Optic Termination Box with IP55 Protection and Metallic Black Finish 3 8 Port Wall Mount Indoor Fiber Optic Termination Box with IP55 Protection and Metallic Black Finish 4
