48 Port LC OM4 Fiber Optic Patch Panel 1U Rack Mount for 19' Distribution Frame

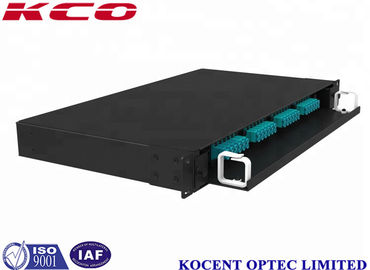

  • 48 Port LC OM4 Fiber Optic Patch Panel 1U Rack Mount for 19' Distribution Frame

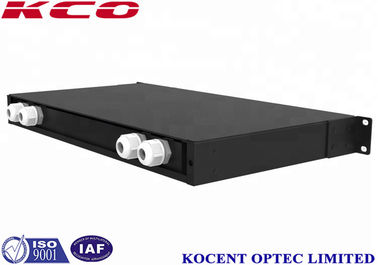

  • 48 Port LC OM4 Fiber Optic Patch Panel 1U Rack Mount for 19' Distribution Frame

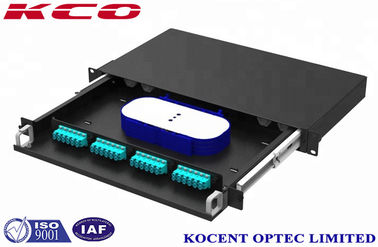

  • 48 Port LC OM4 Fiber Optic Patch Panel 1U Rack Mount for 19' Distribution Frame
  • 48 Port LC OM4 Fiber Optic Patch Panel 1U Rack Mount for 19' Distribution Frame
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number Slide Patch Panel
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Insertion Loss 0.15dB
Return Loss 55dB Connector SC, FC, ST, LC, E2000, Etc
Application 19' Fiber Optic Distribution Frame Capacity 48 Fibers
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
48 Port LC OM4 Fiber Optic Rack Mount Patch Panels
Type 1U Metallic Black Steel Material with slide design for easy access and maintenance.
Product Overview
Kocent Optec Limited brings over 10 years of OEM/ODM expertise in fiber optic patch panels. We accommodate custom designs for patch panels, wall mount terminal boxes, and fiber optic cabinets. Materials available in steel or aluminum alloy with color options including black, grey, and white.
Key Specifications
  • Height: 1U rack mountable
  • Part Number: KCO-SPN18-A2
  • Dimensions: H×W×D = 1U×482×250(mm)
  • Cable input ports: 2pcs M20 (maximum 4pcs)
  • Fiber capacity: 48 fibers
  • Material options: Steel or aluminum alloy
  • Free logo printing for orders exceeding 200 units
Applications
  • FTTH/FTTx/FTTB deployments
  • LAN infrastructure
  • Data center installations
  • Local area network connectivity
Product Features
  • Integrated design with case body, fiber splice tray, and adapter frame
  • Dual-function design for cable fusion and patch cord connection
  • Combined fusion, connection, and fiber management system
  • Special plastic rings maintain >40mm fiber bending radius
  • Versatile adapter panel supports multiple connector types
  • Bottom cable entry with protective rubber components
Technical Specifications
Parameter Value
Type 19" Slide type rack mount patch panel
Insertion Loss ≤ 0.2dB
Return Loss 50dB (UPC), 60dB (APC)
Durability 1000 mating cycles
Wavelength 850nm, 1310nm, 1550nm
Operating Temperature -25°C to +40°C
Storage Temperature -25°C to +55°C
Relative Humidity ≤85% at +30°C
Environmental Specifications
  • Temperature range: -45°C to +85°C
  • Relative humidity: ≤85% at +30°C
  • Atmospheric pressure: 70KPa to 106KPa
Performance Qualifications
  • Connector loss: ≤0.2dB
  • Insulation resistance: >1000MΩ/500V(DC)
OEM/ODM Services
Custom branding available for products, packaging, and labels. Our team supports all OEM/ODM requirements.
48 Port LC OM4 Fiber Optic Patch Panel 1U Rack Mount for 19' Distribution Frame 0
Packaging
Standard export packaging options include carton boxes, wooden cases, and wooden pallets.
48 Port LC OM4 Fiber Optic Patch Panel 1U Rack Mount for 19' Distribution Frame 1
Shipping Options
  • International express: DHL, UPS, TNT
  • International air freight
  • Ocean freight
48 Port LC OM4 Fiber Optic Patch Panel 1U Rack Mount for 19' Distribution Frame 2
