48 Port IP65 Rated Fiber Termination Box with 48 Fibers Capacity for FTTH Networks

  • 48 Port IP65 Rated Fiber Termination Box with 48 Fibers Capacity for FTTH Networks
  • 48 Port IP65 Rated Fiber Termination Box with 48 Fibers Capacity for FTTH Networks
  • 48 Port IP65 Rated Fiber Termination Box with 48 Fibers Capacity for FTTH Networks
  • 48 Port IP65 Rated Fiber Termination Box with 48 Fibers Capacity for FTTH Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODP-48G
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS, ABS+PC, SMC P/N KCO-ODP-48G
Color White, Grey Connector SC, ST, LC, FC, E2000, Etc
Application Indoor IP55 Capacity 48 Ports SC/FC/ST/E2000 Simplex Or 48 Ports LC Suplex
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description

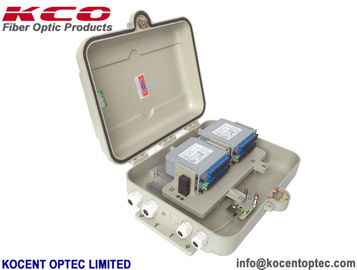

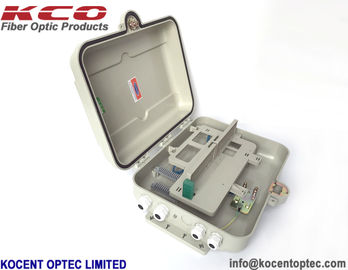

48 Port ABS Wall Mount Fiber Termination Box KCO-ODP-48G FTTH Outdoor FDB ODP
The KCO-ODP-48G is a high-performance fiber optic distribution termination box designed for both outdoor and indoor applications. This versatile enclosure features 48 port adapters, supporting SC simplex, FC simplex, ST simplex, E2000 simplex, or LC duplex adapters.
48 Port IP65 Rated Fiber Termination Box with 48 Fibers Capacity for FTTH Networks 0 48 Port IP65 Rated Fiber Termination Box with 48 Fibers Capacity for FTTH Networks 1 48 Port IP65 Rated Fiber Termination Box with 48 Fibers Capacity for FTTH Networks 2
Key Features
  • Constructed from durable ABS, ABS+PC plastic, or SMC materials
  • Extended product lifespan for reliable performance
  • Supports up to 48 LC, FC, ST, SC, or E2000 adapters
  • Designed for wall mounting applications
  • Includes 4 waterproof cable entry ports
  • Adapter plate supports maximum 48 ports
  • Splitter plate accommodates up to 2 units of 1×16 or 2×16 LGX splitters
  • Integrated solution for fiber splicing, splitting, distribution, and storage
  • IP65 rated for superior environmental protection
Technical Specifications
Model KCO-ODP-48G
Material PC+ABS, ABS, or SMC
Dimensions 430×340×130mm
Weight 2.5kg
Cable Entry 4 ports (10-16.5mm diameter)
Capacity 48 fibers (2 trays × 24 fibers)
Operating Temperature -40°C to +80°C
IP Rating IP65
Installation Options
The KCO-ODP-48G supports multiple installation methods including floor standing, wall mounted, pole mounted, corridor mounted, or mounted in cabinet configurations.
Packing Information
Packing Unit 1pc/box
Package Dimensions 450×360×150mm
Package Weight 2.55kg
48 Port IP65 Rated Fiber Termination Box with 48 Fibers Capacity for FTTH Networks 3
Shipping Options
  • International express services (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Ocean freight
Customization & OEM Services
We offer comprehensive OEM/ODM services including custom branding on products, packaging, and labels. Free logo printing is available for orders exceeding 1000 units, with free lettering for orders over 10,000 units. The box can be supplied empty or pre-loaded with adapters, pigtails, or splitters as required.
