KCO-FTB-02N 2 Port 2 Core Fiber Optic Termination Box FTTH Indoor Face Plate Socket IP55 Rated for SC/UPC SC/APC

  • KCO-FTB-02N 2 Port 2 Core Fiber Optic Termination Box FTTH Indoor Face Plate Socket IP55 Rated for SC/UPC SC/APC
  • KCO-FTB-02N 2 Port 2 Core Fiber Optic Termination Box FTTH Indoor Face Plate Socket IP55 Rated for SC/UPC SC/APC
  • KCO-FTB-02N 2 Port 2 Core Fiber Optic Termination Box FTTH Indoor Face Plate Socket IP55 Rated for SC/UPC SC/APC
  • KCO-FTB-02N 2 Port 2 Core Fiber Optic Termination Box FTTH Indoor Face Plate Socket IP55 Rated for SC/UPC SC/APC
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-FTB-02N
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS, ABS+PC P/N KCO-FTB-02N
Color White, Grey Connector SC, ST, LC, FC, E2000, Etc
Application Indoor IP55 Capacity 4 Ports SC/FC/ST/E2000 Simplex, LC Duplex
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
KCO-FTB-02N 2 Port 2 Core Fiber Optical Termination Box FTTH Indoor Face Plate Socket SC/UPC SC/APC
KCO-FTB-02N 2port 2core Fiber Optical Termination Box is designed for FTTH indoor applications with SC/UPC or SC/APC face plate sockets. Kocent Optec Limited provides OEM services for all ODF boxes, distribution boxes, and terminal boxes.
Product Features
  • Designed for indoor applications with 2 port adapter capacity
  • Supports SC simplex, FC simplex, ST simplex, E2000 simplex or LC simplex adapters
  • Suitable for wall mount or desktop socket box installation
  • Termination point for feeder cable to connect with drop cable in FTTx networks
  • Integrates fiber splicing, splitting, distribution, storage and cable connection
  • Ideal solution for optical termination in branch networks for FTTH environments
  • Long lifespan with durable ABS or ABS+PC plastic construction
  • Cover features 2 reinforcing closing pieces for easy operation
Technical Specifications
Model KCO-FTB-02N
Material PC+ABS or ABS
Dimension 102×80×23mm
Cable Entry 2 cable entrance for FTTH drop cable or indoor cable
Drop Cable Port 02 ports
Applicable Cable Diameter 2×3mm FTTH drop cable, 2×5mm figure 8 FTTH drop cable
Max. Capacity 1 Fibers, 1 tray × 4F
Adapter Max. 2pcs SC simplex (LC, FC, MT optional)
Sealing Structure Mechanical sealing with PE waterproof sealing ring
PLC Splitter Max. micro plug-in 1×2 Splitter
Color Gray White or Black
IP Grade IP55
Operating Temperature -40°C to +80°C
Relative Humidity <95% (+40°C)
Insulated Resistance >2×10MΩ/500V(DC)
Installation Method Floor Standing / Wall Mounted / Pole Mounted / Corridor Mounted / Mounted in Cabinet

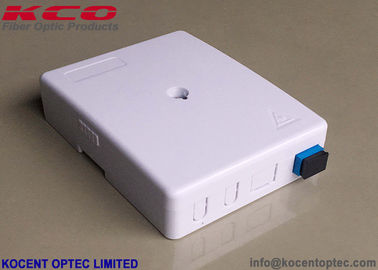

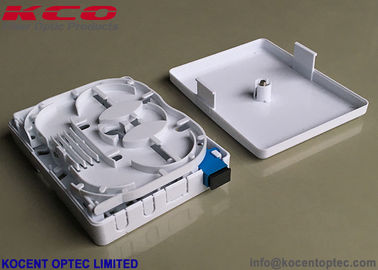

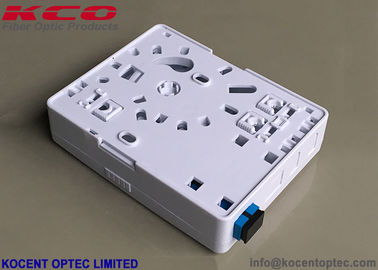

Product Images
KCO-FTB-02N 2 Port 2 Core Fiber Optic Termination Box FTTH Indoor Face Plate Socket IP55 Rated for SC/UPC SC/APC 0 KCO-FTB-02N 2 Port 2 Core Fiber Optic Termination Box FTTH Indoor Face Plate Socket IP55 Rated for SC/UPC SC/APC 1 KCO-FTB-02N 2 Port 2 Core Fiber Optic Termination Box FTTH Indoor Face Plate Socket IP55 Rated for SC/UPC SC/APC 2 KCO-FTB-02N 2 Port 2 Core Fiber Optic Termination Box FTTH Indoor Face Plate Socket IP55 Rated for SC/UPC SC/APC 3 KCO-FTB-02N 2 Port 2 Core Fiber Optic Termination Box FTTH Indoor Face Plate Socket IP55 Rated for SC/UPC SC/APC 4
OEM/ODM Services
We offer custom branding services for orders exceeding 1000 pieces (free logo printing) or 10000 pieces (free logo lettering). Customization options include packaging, labels, and product branding.
Packaging & Shipping
Standard export packaging includes carton boxes, wooden boxes, or wooden pallets. Shipping options include international express (UPS, TNT, DHL), air freight, or sea freight.
KCO-FTB-02N 2 Port 2 Core Fiber Optic Termination Box FTTH Indoor Face Plate Socket IP55 Rated for SC/UPC SC/APC 5 KCO-FTB-02N 2 Port 2 Core Fiber Optic Termination Box FTTH Indoor Face Plate Socket IP55 Rated for SC/UPC SC/APC 6
Note: Product can be supplied as empty box, with adapters, with pigtails, or with splitters as per customer requirements. Contact our sales team for customized solutions.
