16 Ports FTTH Drop Cable Port Fiber Access Terminal Box with 16 Fibers Capacity and ABS+PC Material

  • 16 Ports FTTH Drop Cable Port Fiber Access Terminal Box with 16 Fibers Capacity and ABS+PC Material
  • 16 Ports FTTH Drop Cable Port Fiber Access Terminal Box with 16 Fibers Capacity and ABS+PC Material
  • 16 Ports FTTH Drop Cable Port Fiber Access Terminal Box with 16 Fibers Capacity and ABS+PC Material
  • 16 Ports FTTH Drop Cable Port Fiber Access Terminal Box with 16 Fibers Capacity and ABS+PC Material
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-0416W
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number KCO-0416B Material ABS+PC
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 16 Fibers Fo
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
16 FTTH Drop Cable Port Fiber Access Terminal Box KCO-0416W White Color ABS PC Material
KCO-0416W White Color ABS+PC Material 16 FTTH Drop Cable Port Fiber Access Terminal Box

KCO-0416W is a fiber optic terminal enclosure box designed with 16 ports for FTTH drop cable and 4 ports for outdoor fiber optic cable. Available in three colors: Black (KCO-0416B), White (KCO-0416W), and Grey (KCO-0516G).

Key Applications
  • Wall mounting and pole mounting installation options
  • FTTH pre-installation and field installation
  • Compatible with 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable
  • Supports up to 16 subscribers as a splitter box and 96 splicing points as splice closure
  • Functions as both splicing closure and termination point for feeder cable to drop cable in FTTX network systems
Design Features
  • Integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box
  • Compact size with flip-over cover for easy operation
  • Hinge-jointed splice trays for convenient access and operation
  • Designed to prevent operation damage during installation
Specifications
Model KCO-0416W
Material PC+ABS
Dimension 287*172*102mm
Cable Port 2 uncut port + 2 reserved cable entrance
Cable Dimension 2 uncut port: 10-16.5mm; 2 reserved port: 8-16.5mm
Cable Outport 16 outputs for drop cable
Max. Capacity 24 Fibers
Sealing structure Mechanical sealing (buckle and screw)
PLC Splitter Max. micro 1x16 Splitter, 2 pcs 1*8 PLC Splitter
Color Gray/Black/White
IP Grade IP65
Application Wall mount, pole mount
Weight 1.20kg
Technical Data
  • Environmental requirements:
    • Working temperature: -40℃~+85℃
    • Relative humidity: ≤85%(+30℃)
    • Atmospheric pressure: 70KPa~106Kpa
  • Insertion loss: ≤0.2dB
  • Return loss:
    • UPC return loss: ≥50dB
    • APC return loss: ≥60dB
  • Life of insertion and extraction: >1000 times
  • Grounding device isolated with cabinet, isolation resistance is less
  • Withstand voltage between grounding device and cabinet: ≥3000V(DC)/min (no puncture, no flashover)
Product Features
  • Water-proof design with IP-65 Protection Level
  • Suitable for indoor and outdoor use, wall mount and pole mount
  • Integrated with 4pcs flap-up splice cassette and adaptor holder
  • All stainless metal plate and anti-rusting bolts, nuts
  • Fiber bend radius control more than 40mm
  • Compatible with fusion splicer or mechanical splice
  • Option to install 2 Pcs of 1*8 Splitter
  • Mechanical sealing structure and mid-span cable entry
  • 16 outports for drop cable
Product Images

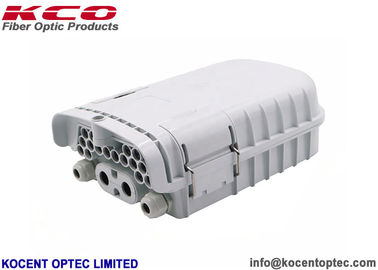

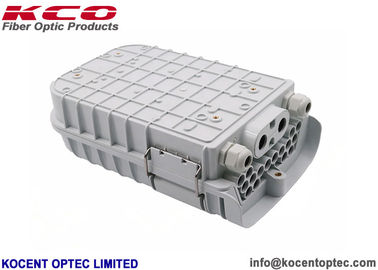

16 Ports FTTH Drop Cable Port Fiber Access Terminal Box with 16 Fibers Capacity and ABS+PC Material 0 16 Ports FTTH Drop Cable Port Fiber Access Terminal Box with 16 Fibers Capacity and ABS+PC Material 1 16 Ports FTTH Drop Cable Port Fiber Access Terminal Box with 16 Fibers Capacity and ABS+PC Material 2 16 Ports FTTH Drop Cable Port Fiber Access Terminal Box with 16 Fibers Capacity and ABS+PC Material 3
Ordering Information
Item Capacity Splitter Connector Adapter Logo
KCO-0416B 16 cores 1*2 SC/UPC SC/UPC KCO
1*4 SC/APC SC/APC customized
1*6 FC/UPC FC/UPC ...
1*8 FC/APC FC/APC
1*12 ST/UPC ST/UPC
1*16 LC/UPC LC/UPC
... ... ...
OEM/ODM Service

We offer custom branding options for your logo on the goods, packaging, labels or any visible location. Our OEM and ODM service is available to meet your specific requirements.

Packing

Standard Export Packing options include carton box, wooden box, and wooden pallet.

16 Ports FTTH Drop Cable Port Fiber Access Terminal Box with 16 Fibers Capacity and ABS+PC Material 4
Shipping Options
  • International express services: UPS, TNT, DHL, etc.
  • International air freight: CA, AA, EA, etc.
  • Sea freight
