24 Port Outdoor IP65 Fiber Optic Termination Box with ABS+PC Material for FTTH Mini Splitter

  • 24 Port Outdoor IP65 Fiber Optic Termination Box with ABS+PC Material for FTTH Mini Splitter
  • 24 Port Outdoor IP65 Fiber Optic Termination Box with ABS+PC Material for FTTH Mini Splitter
  • 24 Port Outdoor IP65 Fiber Optic Termination Box with ABS+PC Material for FTTH Mini Splitter
  • 24 Port Outdoor IP65 Fiber Optic Termination Box with ABS+PC Material for FTTH Mini Splitter
  • 24 Port Outdoor IP65 Fiber Optic Termination Box with ABS+PC Material for FTTH Mini Splitter
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-FAT-24B
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS, ABS+PC P/N KCO-FAT-24B
Color Black Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor IP65 Capacity 24 Ports SC Simplex Or 24 Ports LC Duplex
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
24 Port Distribution FDB Fibre Termination Box KCO-FAT-24B For Mini Splitter
The KCO-FAT-24B is an outdoor wall mount and pole mounted fiber optic termination box designed for FTTH drop cable entry or exit. Available in black (KCO-FAT-24B), white (KCO-FAT-24W), and grey (KCO-FAT-24G), this box integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection unit.
Quick Specifications
Item KCO-FAT-24B
Port 24
Tensile strength test >50 N
Tight buffer diameter 250μm & 900μm
Adapter Type SC/FC/LC
Applicable mode Single mode & Multimode
Working temperature -25~+60°C
Size (H*W*D) mm 340*250*110
Key Features
  • P/N: KCO-FAT-24
  • Material: ABS or ABS+PC construction
  • Long lifespan: approximately 20 years
  • Accommodates 1x4, 1x6, 1x8, 1x12, 1x16, 1x24 PLC splitters
  • Rainfall resistant with IP65 outdoor rating
  • Supports 24 LC, FC, ST, SC, or E2000 adapters
  • Flexible installation: wall mounting or pole mounting
  • Cover features 2 reinforcing closing pieces for easy operation
  • 2 cable entry ports (max. 8mm diameter) for uncut cable entry
  • 1 M20 PG cable gland entry port (max. 12mm cable)
  • 24 exit ports for FTTH drop cables
Product Images

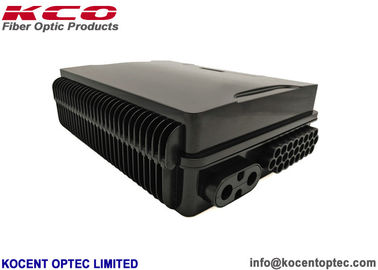

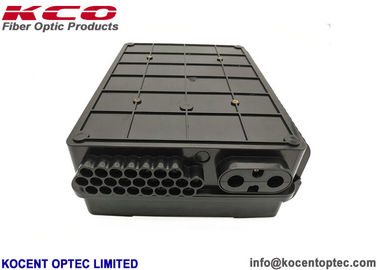

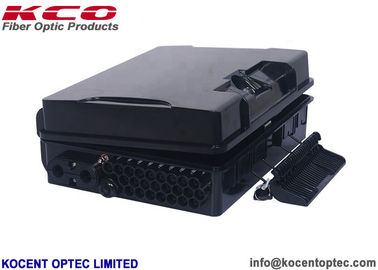

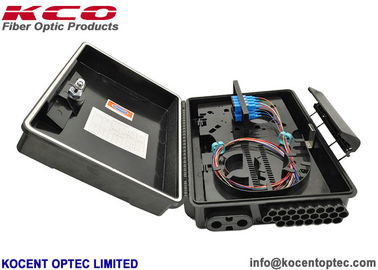

24 Port Outdoor IP65 Fiber Optic Termination Box with ABS+PC Material for FTTH Mini Splitter 0 24 Port Outdoor IP65 Fiber Optic Termination Box with ABS+PC Material for FTTH Mini Splitter 1
Technical Specifications
Model KCO-FAT-24
Material PC+ABS or ABS
Dimension 340*250*110mm
Cable Entry 2 cable entrance: 10-16.5mm
Drop cable port 24 ports
Applicable cable diameter 2*3mm FTTH drop cable, 2*5mm figure 24 FTTH drop cable
Max. Capacity 24 Fibers, 1 tray x 12F
Adapter Max. 24pcs SC simplex (LC, FC, E2000,... optional)
Sealing structure Mechanical sealing with PE waterproof sealing ring
PLC Splitter Max. micro plug-in 1x24 Splitter
Color Gray, White or Black
IP Grade IP65
Operating Temperature -40°C~+80°C
Relative Humidity <95%(+40°C)
Insulated Resistance >2x10MΩ/500V(DC)
Installation Method Floor Standing / Wall Mounted / Pole Mounted / Corridor Mounted / Mounted in Cabinet
Dimensions & Weight
Model Capacity Dimension (LxWxH) Weight
KCO-FAT-24B 1*24 PLC splitter, 24 SC adaptors 350*250*110MM 1.5kg
Packing 1pc/box 380*270*120MM
OEM/ODM Services
We offer custom branding options for your logo on cables, packaging, labels, or any visible surface. Our OEM and ODM services are available to meet your specific requirements.
Packing & Shipping
Standard export packing includes carton boxes, wooden boxes, or wooden pallets. Shipping options include:
  • International express: UPS, TNT, DHL
  • International air: CA, AA, EA
  • By sea: COSCO, HUYNDAI
  • Standard shipping ports: Shenzhen, Hongkong, Ningbo
24 Port Outdoor IP65 Fiber Optic Termination Box with ABS+PC Material for FTTH Mini Splitter 2
