FDB Outdoor Fiber Optic Terminal Box 24 Port KCO-NAP-0424B Anti UV Black Color

  • FDB Outdoor Fiber Optic Terminal Box 24 Port KCO-NAP-0424B Anti UV Black Color
  • FDB Outdoor Fiber Optic Terminal Box 24 Port KCO-NAP-0424B Anti UV Black Color
  • FDB Outdoor Fiber Optic Terminal Box 24 Port KCO-NAP-0424B Anti UV Black Color
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-NAP-0424B
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number KCO-NAP-0424B Material ABS+PC
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 24 Fibers Fo
High Light

optical termination box

,

fibre termination box
Leave a Message
Product Description





Outdoor Fiber Optic FDB Distribution Box 24 Port KCO-NAP-0424B Anti UV Black Color





Description:

KCO-NAP-0424B outdoor fiber optic distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.



Features:

Water-proof design with IP65 Protection level

Integrated with flap-up splice trays

Maximum 120 fiber splice capacity, stainless anti-rust bolts and nuts

Easy for maintenance and expansion, neat cabling.

Fiber bend radius control more than 40mm.

180 degree access with buckled lock structure.

1x8 or 1x16 1x24 PLC Splitter can be installed in each splice tray as option.

24 pcs of mechanical ports for 3-7mm drop cable.

2 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm)



Application:

       Wall mounting and pole mounting installation

       FTTH pre-installation and filed installation

       2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable



Technical Data:

Model KCO-NAP-0424B
Material PC+ABS
Size 340*220*95
PLC 1pcs 1x16 steel tube PLC Splitter
Adapter 24pcs SC/UPC or SC/APC Adapters
Color Gray/Black
Net. Weight 1.85kg
Work Temperature -40 ~+75degree
Max Capacity Splice 120 Fibers (5 trays,24fiber/tray)
Relative Humidity ≤ 85% (+30 degree)
Atmospheric Pressure 70Kpa~106Kpa
Insert Loss ≤ 0.2dB
UPC Return Loss ≥ 50dB
APC Return Loss ≥ 60dB
Insert and Pull out Life ≥ 1000 times
Insulation The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current)
Withstand Voltage

Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current)



Usage:

- Wall mounting installation,

- Pole mounting installation,

- FTTH pre-installation,

- Filed installation,

- 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable.



Product photo:

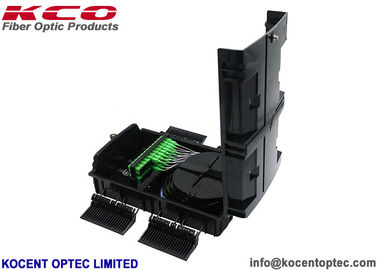

FDB Outdoor Fiber Optic Terminal Box 24 Port KCO-NAP-0424B Anti UV Black Color 0

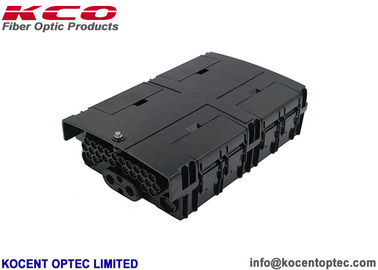

FDB Outdoor Fiber Optic Terminal Box 24 Port KCO-NAP-0424B Anti UV Black Color 1

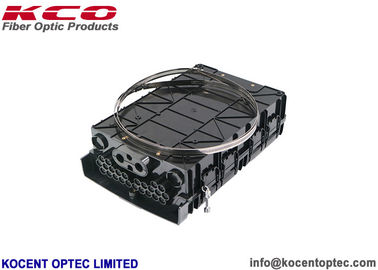

FDB Outdoor Fiber Optic Terminal Box 24 Port KCO-NAP-0424B Anti UV Black Color 2




Ordering information:
Item Capacity Splitter Connector Adapter Logo
KCO-NAP-0424B 16 cores 1*2 SC/UPC SC/UPC KCO
1*4 SC/APC SC/APC customized
1*6 FC/UPC FC/UPC …
1*8 FC/APC FC/APC
1*12 ST/UPC ST/UPC
1*16 LC/UPC LC/UPC
... ... ...


OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
FDB Outdoor Fiber Optic Terminal Box 24 Port KCO-NAP-0424B Anti UV Black Color 3



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
