Outdoor Fiber Optic Terminal Box 24 Port Waterproof IP65 with 120 Fiber Splice Capacity for FTTH Networks

  • Outdoor Fiber Optic Terminal Box 24 Port Waterproof IP65 with 120 Fiber Splice Capacity for FTTH Networks
  • Outdoor Fiber Optic Terminal Box 24 Port Waterproof IP65 with 120 Fiber Splice Capacity for FTTH Networks
  • Outdoor Fiber Optic Terminal Box 24 Port Waterproof IP65 with 120 Fiber Splice Capacity for FTTH Networks
  • Outdoor Fiber Optic Terminal Box 24 Port Waterproof IP65 with 120 Fiber Splice Capacity for FTTH Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-NAP-0424B
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number KCO-NAP-0424B Material ABS+PC
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 24 Fibers Fo
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
FDB Outdoor Fiber Optic Terminal Box 24 Port KCO-NAP-0424B Anti UV Black Color
The KCO-NAP-0424B outdoor fiber optic distribution box serves as a termination point for feeder cables to connect with drop cables in FTTx communication network systems. This robust unit integrates fiber splicing, splitting, distribution, storage, and cable connection functions while providing solid protection and management for FTTx network infrastructure.
Key Features
  • Water-proof design with IP65 protection rating
  • Integrated flap-up splice trays for easy access
  • Maximum 120 fiber splice capacity with stainless anti-rust hardware
  • Optimized for maintenance and expansion with neat cabling
  • Fiber bend radius control exceeding 40mm
  • 180° access with secure buckled lock structure
  • Optional 1x8, 1x16 or 1x24 PLC splitter installation per splice tray
  • 24 mechanical ports for 3-7mm drop cables
  • 2 mid-span cable entrances (10-16.5mm) for uncut cables plus 2 reserved distribution cable gland entrances (8-13.5mm)
Applications
  • Wall mounting and pole mounting installations
  • FTTH pre-installation and field deployment
  • Compatible with 2*3mm indoor FTTH drop cables and outdoor figure-8 FTTH self-supporting drop cables
Technical Specifications
Model KCO-NAP-0424B
Material PC+ABS
Dimensions 340×220×95mm
PLC Splitter 1×16 steel tube PLC splitter
Adapters 24× SC/UPC or SC/APC adapters
Color Gray/Black
Net Weight 1.85kg
Operating Temperature -40°C to +75°C
Maximum Capacity 120 fiber splices (5 trays, 24 fibers/tray)
Relative Humidity ≤85% at +30°C
Atmospheric Pressure 70-106kPa
Insertion Loss ≤0.2dB
UPC Return Loss ≥50dB
APC Return Loss ≥60dB
Insertion/Extraction Cycles ≥1000 times
Insulation Resistance ≥1000MΩ/500V DC
Withstand Voltage ≥3000V DC for 1 minute (no breakdown/flashover)
Installation Options
  • Wall mounting installation
  • Pole mounting installation
  • FTTH pre-installation
  • Field installation
  • Compatible with 2×3mm indoor FTTH drop cables and outdoor figure-8 FTTH self-supporting drop cables
Product Images

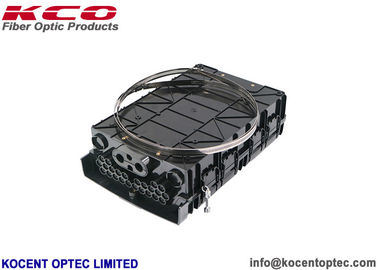

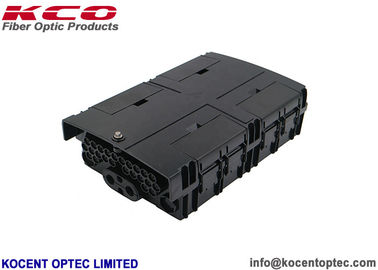

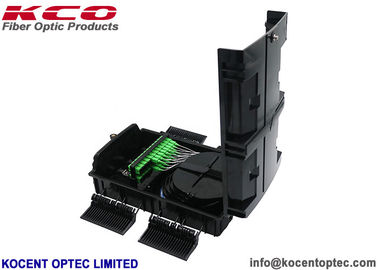

Outdoor Fiber Optic Terminal Box 24 Port Waterproof IP65 with 120 Fiber Splice Capacity for FTTH Networks 0 Outdoor Fiber Optic Terminal Box 24 Port Waterproof IP65 with 120 Fiber Splice Capacity for FTTH Networks 1 Outdoor Fiber Optic Terminal Box 24 Port Waterproof IP65 with 120 Fiber Splice Capacity for FTTH Networks 2
Ordering Information
Item Capacity Splitter Connector Adapter Logo
KCO-NAP-0424B 16 cores 1×2 SC/UPC SC/UPC KCO
1×4 SC/APC SC/APC Customized
1×6 FC/UPC FC/UPC
1×8 FC/APC FC/APC
1×12 ST/UPC ST/UPC
1×16 LC/UPC LC/UPC
OEM/ODM Services
We offer complete OEM/ODM services to customize products with your brand logo on cables, packaging, labels, or any visible components.
Packaging
Standard export packaging options include carton boxes, wooden boxes, and wooden pallets.
Outdoor Fiber Optic Terminal Box 24 Port Waterproof IP65 with 120 Fiber Splice Capacity for FTTH Networks 3
Shipping Options
  • International express services (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Ocean freight
