Waterproof IP65 Fiber Optic Distribution Box with ABS+PC Material and SC/ST/LC/FC/E2000 Connectors for Wall or Pole Mounting

  • Waterproof IP65 Fiber Optic Distribution Box with ABS+PC Material and SC/ST/LC/FC/E2000 Connectors for Wall or Pole Mounting
  • Waterproof IP65 Fiber Optic Distribution Box with ABS+PC Material and SC/ST/LC/FC/E2000 Connectors for Wall or Pole Mounting
  • Waterproof IP65 Fiber Optic Distribution Box with ABS+PC Material and SC/ST/LC/FC/E2000 Connectors for Wall or Pole Mounting
  • Waterproof IP65 Fiber Optic Distribution Box with ABS+PC Material and SC/ST/LC/FC/E2000 Connectors for Wall or Pole Mounting
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-NAP-0424B
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number KCO-NAP-0424B Material ABS+PC
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 24 Fibers Fo
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
Waterproof IP65 Optical Fiber Distribution Box FAT NAP CTO FDB 24 Core Outdoor
KCO-NAP-0424B outdoor fiber optic distribution box serves as a termination point for feeder cable to connect with drop cable in FTTx communication network systems. This unit integrates fiber splicing, splitting, distribution, storage, and cable connection in one compact solution while providing solid protection and management for FTTx network infrastructure.
Key Features
  • Total enclosed structure for maximum protection
  • Constructed from PC+ABS material: wet-proof, water-proof, dust-proof, and anti-aging with IP65 protection level
  • Integrated solution for clamping feeder/drop cables, fiber splicing, fixation, storage, and distribution
  • Separate paths for cables, pigtails, and patch cords to prevent interference
  • Cassette type SC/LC/PLC adaptor installation for easy maintenance
  • Flip-up distribution panel with expression port for feeder cable placement
  • Wall-mounted or pole-mounted installation options for indoor/outdoor use
Applications
  • Wall mounting and pole mounting installation
  • FTTH pre-installation and field installation
  • Compatible with 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable
Environmental Specifications
  • Working temperature: -40℃ to +85℃
  • Relative humidity: ≤85% at +30℃
  • Atmospheric pressure: 70KPa to 106Kpa
Technical Specifications
Parameter Specification
Insertion loss ≤0.2dB
Return loss (UPC) ≥50dB
Return loss (APC) ≥60dB
Insertion/extraction life >1000 times
Thunder-proof Specifications
  • Grounding device isolated with cabinet (isolation resistance <1000mΩ/500V DC)
  • Withstand voltage between grounding device and cabinet: ≥3000V DC/min (no puncture/flashover)
Product Specifications
Model KCO-NAP-0424B
Material PC+ABS
Size (mm) 340×220×95
PLC Splitter 1×16 steel tube
Adapters 24×SC/UPC or SC/APC
Color Gray/Black
Net Weight 1.85kg
Max Capacity 120 fibers (5 trays, 24 fiber/tray)
Ordering Information
Item Capacity Splitter Connector Adapter Logo
KCO-NAP-0424B 16 cores 1×2 SC/UPC SC/UPC KCO or customized
1×4 SC/APC SC/APC
1×6 FC/UPC FC/UPC
1×8 FC/APC FC/APC
1×12 ST/UPC ST/UPC
1×16 LC/UPC LC/UPC
OEM/ODM Service
Custom branding available for goods, packaging, labels, etc. Our OEM and ODM services can accommodate your specific requirements.
Packing
Standard export packing options include carton boxes, wooden boxes, and wooden pallets.
Shipping
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • Sea freight
Product Images

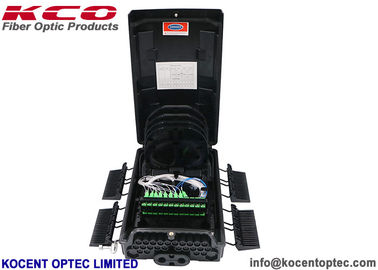

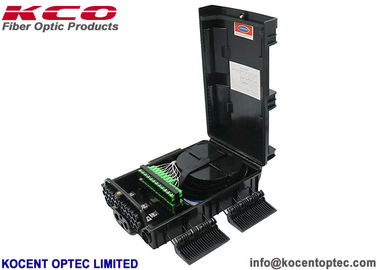

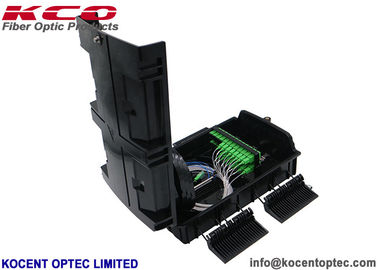

Waterproof IP65 Fiber Optic Distribution Box with ABS+PC Material and SC/ST/LC/FC/E2000 Connectors for Wall or Pole Mounting 0 Waterproof IP65 Fiber Optic Distribution Box with ABS+PC Material and SC/ST/LC/FC/E2000 Connectors for Wall or Pole Mounting 1 Waterproof IP65 Fiber Optic Distribution Box with ABS+PC Material and SC/ST/LC/FC/E2000 Connectors for Wall or Pole Mounting 2 Waterproof IP65 Fiber Optic Distribution Box with ABS+PC Material and SC/ST/LC/FC/E2000 Connectors for Wall or Pole Mounting 3 Waterproof IP65 Fiber Optic Distribution Box with ABS+PC Material and SC/ST/LC/FC/E2000 Connectors for Wall or Pole Mounting 4
Waterproof IP65 Fiber Optic Distribution Box with ABS+PC Material and SC/ST/LC/FC/E2000 Connectors for Wall or Pole Mounting 5
