2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications

  • 2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications
  • 2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications
  • 2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications
  • 2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications
  • 2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications
  • 2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-FP-02W
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS, PC Insertion Loss 0.15dB
Return Loss 55dB Connector SC, FC, ST, LC, E2000, Etc
Application Indoor Capacity 2 Fibers
P/N KCO-FP-02W Color White/ Black/ Customized
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
2 Port Fiber Optic Termination Box SC/APC Optical Fiber Socket Face Plate
The KCO-FP-02W fiber termination box is a wall-mount outlet designed to hold up to 2 subscribers, serving as a termination point for drop cables to connect with patch cables in FTTH indoor applications. This compact solution integrates fiber splicing, termination, storage, and cable connection in one solid protection box.
Key Features
  • Dust-proof design with IP-45 Protection Level
  • Integrated with splice cassette and cable management rods
  • Maintains proper fiber radius (>40mm) for optimal performance
  • Easy maintenance and capacity extension
  • Compatible with both fusion splice and mechanical splice
  • Embedded surface design for easy installation/removal
  • 2 ports cable entrance for patch cable
  • Middle screw for easy sealing
  • Lightweight and compact design
  • High-quality ABS or ABS+PC material construction
  • Reliable earth device and fiber optic cable fixing
Technical Specifications
Part Number KCO-FP-02W
Dimensions 86×86×25mm
Capacity 2 cores (for SC), 4 cores (for LC)
Material Plastic ABS/ABS+PC
Cable Compatibility Indoor cable or FTTH drop cable (Max. 10mm diameter)
Adapter Types SC, LC, FC, ST, E2000
Color White
Performance Qualifications
Nominal work wavelength: 850nm, 1310nm, 1550nm
Connectors loss: ≤0.2dB
Insert loss: ≤0.2dB
Return loss: ≥50dB (UPC), ≥60dB (APC)
Insulation resistance: >1000MΩ/500V(DC)
Operating Conditions
Temperature: -45°C to +85°C
Relative humidity: ≤85% at +30°C
Atmospheric pressure: 70KPa~106KPa
Applications
  • FTTH, FTTx, FTTB networks
  • LAN installations
  • Data centers
  • Local area networks
Product Images

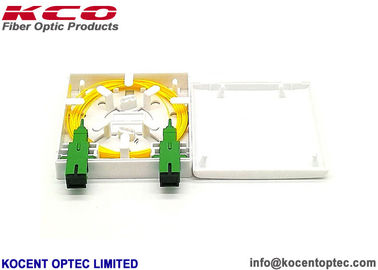

2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications 0

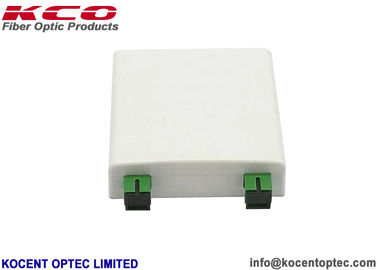

2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications 1

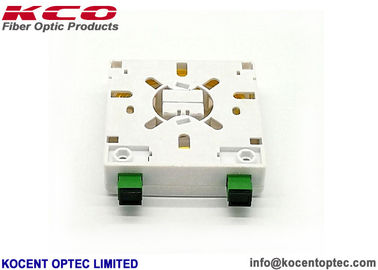

2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications 2

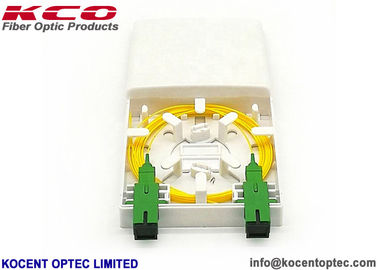

2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications 3

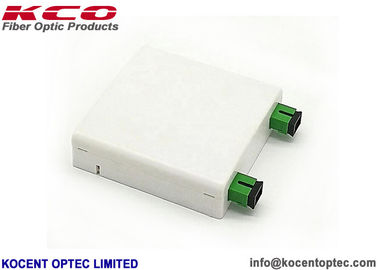

2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications 4
OEM/ODM Service Available
We offer custom branding options for your fiber optic products, including logo placement on cables, packaging, labels, or any visible surface. Contact our sales team to discuss your specific requirements.
2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications 5
2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications 6
Packaging & Shipping
Packaging: Standard export packing (carton box, wooden box, or wooden pallet)
Shipping Methods: International express (UPS, TNT, DHL), air freight, or sea freight
Standard Port: Shenzhen, Ningbo
2 Fibers Capacity Fiber Optic Termination Box with 0.15dB Insertion Loss and 55dB Return Loss for FTTH Applications 7
