Fiber Optic Terminal Box Indoor Termination Cabinet with 2 Fibers Capacity 0.15dB Insertion Loss and 55dB Return Loss

  • Fiber Optic Terminal Box Indoor Termination Cabinet with 2 Fibers Capacity 0.15dB Insertion Loss and 55dB Return Loss
  • Fiber Optic Terminal Box Indoor Termination Cabinet with 2 Fibers Capacity 0.15dB Insertion Loss and 55dB Return Loss
  • Fiber Optic Terminal Box Indoor Termination Cabinet with 2 Fibers Capacity 0.15dB Insertion Loss and 55dB Return Loss
  • Fiber Optic Terminal Box Indoor Termination Cabinet with 2 Fibers Capacity 0.15dB Insertion Loss and 55dB Return Loss
  • Fiber Optic Terminal Box Indoor Termination Cabinet with 2 Fibers Capacity 0.15dB Insertion Loss and 55dB Return Loss
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-FP-02W
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS, PC Insertion Loss 0.15dB
Return Loss 55dB Connector SC, FC, ST, LC, E2000, Etc
Application Indoor Capacity 2 Fibers
P/N KCO-FP-02W Color White/ Black/ Customized
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
ONU Access Roseta Fiber Optic Terminal Box 2P Connection Indoor Termination Cabinet
The KCO-FP-02W is a fiber optic ONU access box designed for FTTH (Fiber To The Home) applications. This termination box serves as the connection point between the NAP box and the customer's premises, connecting outdoor FTTH drop cables with indoor cables. The compact wall-mount unit supports up to 2 subscribers with adapter ports compatible with SC, DLC, and FC connectors.
Key Features
  • Dust-proof design with IP-45 Protection Level
  • Integrated splice cassette and cable management rods
  • Maintains proper fiber bend radius for optimal performance
  • Easy maintenance and capacity expansion
  • Compatible with FTTH, FTTO, and FTTD applications
  • Reduced installation strength with clasp cover design
  • Slim profile (86×86×25mm) matches standard A86 wall panels
  • Supports multiple fiber interfaces (SC, LC, FC, ST, E2000)
  • Omnidirectional cable protection with large-diameter wrapping posts
Technical Specifications
Part Number KCO-FP-02W
Dimensions 86×86×25mm
Capacity 2 cores (SC) / 4 cores (LC)
Material ABS or ABS+PC plastic
Cable Compatibility Indoor cable or FTTH drop cable (max. 10mm diameter)
Adapter Types SC, LC, FC, ST, E2000
Color White
Fiber Optic Terminal Box Indoor Termination Cabinet with 2 Fibers Capacity 0.15dB Insertion Loss and 55dB Return Loss 0
Applications
  • FTTH/FTTx/FTTB deployments
  • Local Area Networks (LAN)
  • Data center installations
  • Various telecommunications networks
Operating Conditions
  • Temperature range: -45°C to +85°C
  • Relative humidity: ≤85% at +30°C
  • Atmospheric pressure: 70KPa~106KPa
Performance Qualifications
  • Wavelength: 850nm, 1310nm, 1550nm
  • Connector loss: ≤0.2dB
  • Insertion loss: ≤0.2dB
  • Return loss: ≥50dB (UPC), ≥60dB (APC)
  • Insulation resistance: >1000MΩ/500V (DC)
Product Images

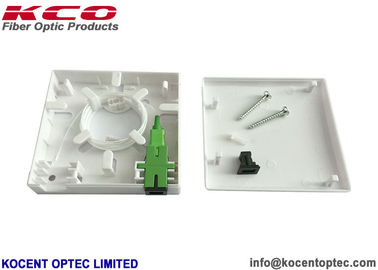

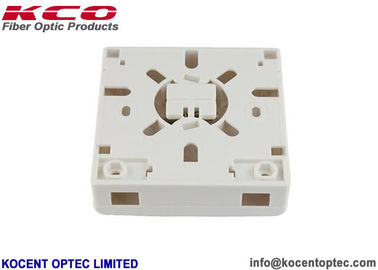

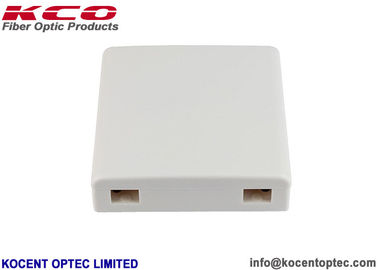

Fiber Optic Terminal Box Indoor Termination Cabinet with 2 Fibers Capacity 0.15dB Insertion Loss and 55dB Return Loss 1 Fiber Optic Terminal Box Indoor Termination Cabinet with 2 Fibers Capacity 0.15dB Insertion Loss and 55dB Return Loss 2 Fiber Optic Terminal Box Indoor Termination Cabinet with 2 Fibers Capacity 0.15dB Insertion Loss and 55dB Return Loss 3
OEM/ODM Services
Custom branding options available for cables, packaging, labels, and other components. Contact our sales team for personalized OEM/ODM solutions.

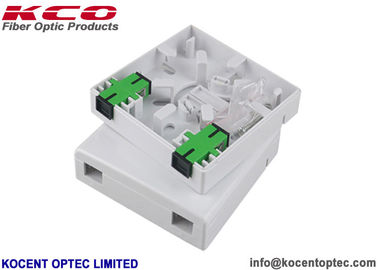

Fiber Optic Terminal Box Indoor Termination Cabinet with 2 Fibers Capacity 0.15dB Insertion Loss and 55dB Return Loss 4
Packaging & Shipping
Standard export packaging options include carton boxes, wooden cases, and pallets. Available shipping methods:
  • International express (UPS, TNT, DHL)
  • International air freight
  • Ocean shipping
Standard departure port: Shenzhen or Ningbo
Fiber Optic Terminal Box Indoor Termination Cabinet with 2 Fibers Capacity 0.15dB Insertion Loss and 55dB Return Loss 5
