Outdoor Fiber Optic Terminal Box with 8 Ports 24 Fibers Capacity and ABS+PC Material for 5G FTTx Networks

  • Outdoor Fiber Optic Terminal Box with 8 Ports 24 Fibers Capacity and ABS+PC Material for 5G FTTx Networks
  • Outdoor Fiber Optic Terminal Box with 8 Ports 24 Fibers Capacity and ABS+PC Material for 5G FTTx Networks
  • Outdoor Fiber Optic Terminal Box with 8 Ports 24 Fibers Capacity and ABS+PC Material for 5G FTTx Networks
  • Outdoor Fiber Optic Terminal Box with 8 Ports 24 Fibers Capacity and ABS+PC Material for 5G FTTx Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-NAP-0208W
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number KCO-NAP-0208W Material ABS+PC
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 24 Fibers Fo
Highlight

fibre termination box

,

outdoor terminal box
Leave a Message
Product Description
Outdoor Fiber Optic Terminal Box CTO FTB OTB FDB Waterproof 8 Port 5G FTTx 8
Product Overview
The KCO round head type fiber optic outdoor distribution box is specially designed for FTTx projects. Available in 8, 12, 16 and 24 port configurations to meet various FTTx project requirements. Features IP65 waterproof rating and supports wall-mounting or pole-mounting installation.
Key Features
  • Designed for 5G FTTx networks with 8 fiber ports
  • IP65 waterproof rating for outdoor durability
  • Supports 1x8 mini type splitter or 1x8 LGX splitter installation
  • Can be configured with Huawei Mini SC waterproof connectors
  • Maximum 12 fiber splicing capacity per tray
  • Integrates fiber splicing, splitting, distribution and storage
  • Mechanical seal provides excellent protection and easy installation
  • Available with full accessories including adapters and splitters
Applications
  • Wall mounting installation
  • Pole mounting installation
  • FTTH pre-installation
  • Field installation
  • Compatible with 2*3mm indoor FTTH drop cable and outdoor figure-8 FTTH self-supporting drop cable
Specifications
Item KCO-0208W/A KCO-0208W/B KCO-0208W/C
Material PC+ABS / ABS
Entry ports 1 Midspan+2 Cable gland (total 4 ports) 1 Midspan (total 2 ports) 1 Midspan (total 2 ports)
Outlet ports 8
Cores 8
Color Grey / black or white (optional)
IP degree 65
PLC installation support(1x8) support(1x8) support(1x8)
PLC type Insert type mini type insert type
Inlet cable dimension midspan(13.5mm)/cable gland(12mm) midspan(13.5mm) midspan(13.5mm)
Dimension 287x172x102mm
Technical Data
Model KCO-NAP-0208W
Material PC+ABS / ABS
Size 287*172*102mm
PLC 1pcs 1x8 steel tube PLC Splitter / 1*8 LGX box type splitter
Adapter 8pcs SC/UPC or SC/APC Adapters
Net Weight 1.15kg
Work Temperature -40 ~ +75°C
Max Capacity Splice 12 Fibers (1 trays,12fiber/tray)
Insert Loss ≤ 0.2dB
UPC Return Loss ≥ 50dB
APC Return Loss ≥ 60dB

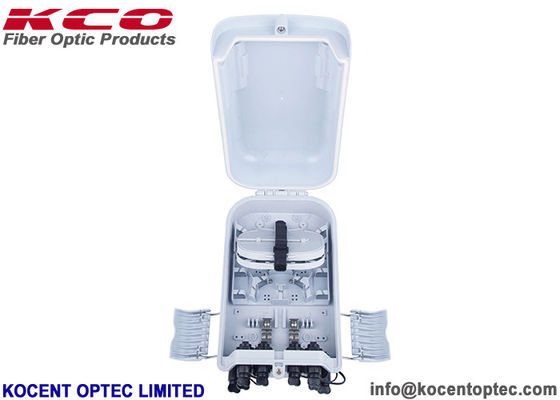

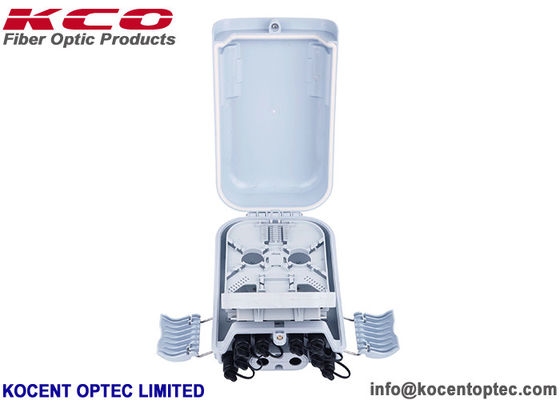

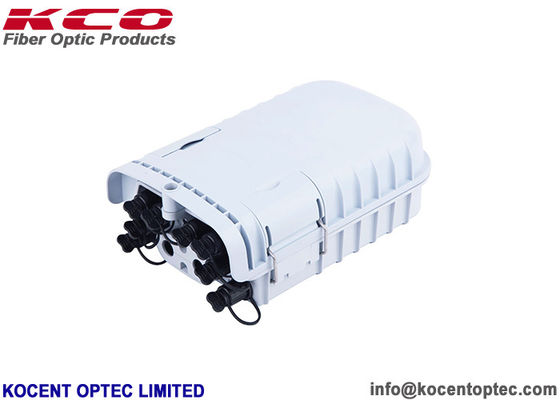

Product Images
Outdoor Fiber Optic Terminal Box with 8 Ports 24 Fibers Capacity and ABS+PC Material for 5G FTTx Networks 0 Outdoor Fiber Optic Terminal Box with 8 Ports 24 Fibers Capacity and ABS+PC Material for 5G FTTx Networks 1 Outdoor Fiber Optic Terminal Box with 8 Ports 24 Fibers Capacity and ABS+PC Material for 5G FTTx Networks 2 Outdoor Fiber Optic Terminal Box with 8 Ports 24 Fibers Capacity and ABS+PC Material for 5G FTTx Networks 3 Outdoor Fiber Optic Terminal Box with 8 Ports 24 Fibers Capacity and ABS+PC Material for 5G FTTx Networks 4 Outdoor Fiber Optic Terminal Box with 8 Ports 24 Fibers Capacity and ABS+PC Material for 5G FTTx Networks 5
Ordering Information
Item Capacity Splitter Connector Adapter Logo
KCO-NAP-0208W 12 cores 1*2 SC/UPC SC/UPC KCO
1*4 SC/APC SC/APC customized
1*6 FC/UPC FC/UPC ...
1*8 FC/APC FC/APC
OEM/ODM Service
Custom branding available for cable, packaging, labels or any visible component. Our OEM and ODM services can accommodate your specific requirements.
Packaging & Shipping
  • Standard export packaging: carton box, wooden box, or wooden pallet
  • International express: UPS, TNT, DHL
  • International air: CA, AA, EA
  • Sea freight available
Outdoor Fiber Optic Terminal Box with 8 Ports 24 Fibers Capacity and ABS+PC Material for 5G FTTx Networks 6 Outdoor Fiber Optic Terminal Box with 8 Ports 24 Fibers Capacity and ABS+PC Material for 5G FTTx Networks 7
