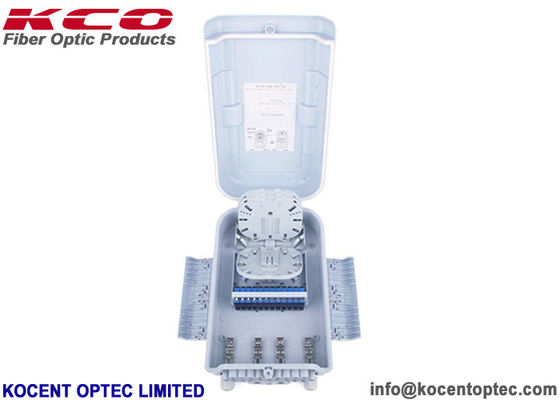

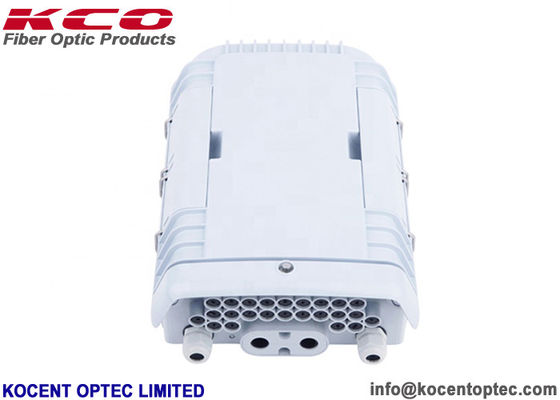

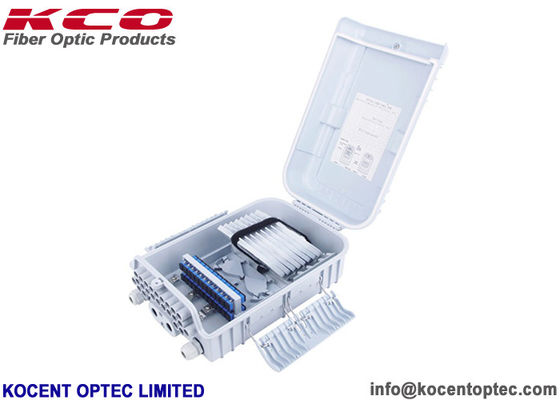

5G FTTA Fiber Optic Distribution Terminal Box with 96 Fibers Capacity ABS+PC Material for Wall or Pole Mounting

  • 5G FTTA Fiber Optic Distribution Terminal Box with 96 Fibers Capacity ABS+PC Material for Wall or Pole Mounting
  • 5G FTTA Fiber Optic Distribution Terminal Box with 96 Fibers Capacity ABS+PC Material for Wall or Pole Mounting
  • 5G FTTA Fiber Optic Distribution Terminal Box with 96 Fibers Capacity ABS+PC Material for Wall or Pole Mounting
  • 5G FTTA Fiber Optic Distribution Terminal Box with 96 Fibers Capacity ABS+PC Material for Wall or Pole Mounting
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-NAP-0424W
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Part Number KCO-NAP-0424W Material ABS+PC
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 96 Fibers Fo
Highlight

fibre termination box

,

outdoor terminal box
Leave a Message
Product Description
5G FTTA Fiber Optic Distribution Terminal Box 24 Port FDB 24 Core NAP 24 Fiber ODB
The 5G FTTA 24 Port Fiber Distribution Box serves as a termination point for feeder cables to connect with drop cables in FTTx communication network systems. This unit enables fiber splicing, splitting, and distribution while providing robust protection and management for FTTx network infrastructure.
Applications
  • Wall mounting installation
  • Pole mounting installation
  • FTTH pre-installation
  • Field installation
  • Compatible with 2*3mm indoor FTTH drop cables and outdoor figure-8 FTTH self-supporting drop cables
Technical Specifications
Environmental Requirement Main Technical Data Capacity
Working temperature: -40℃~+75℃ Insertion loss: ≤0.2dB 1×8 1×16 PLC splitter, 24 SC/LC adaptors
Relative humidity: ≤85℃(+30℃) UPC return loss: ≥50dB
Atmospheric pressure: 70KPa~106KPa APC return loss: ≥60dB
Product Specifications
Item KCO-NAP-0424W/A KCO-NAP-0424W/B KCO-NAP-0424W/C
Material PC+ABS / ABS
Entry ports 1 Midspan+2 Cable gland (total 4 ports) 1 Midspan (total 2 ports) 1 Midspan (total 2 ports)
Outlet ports 24
Cores 24
Color Grey / black or white (optional)
IP degree 65
PLC installation Support (1×8)
Standard Accessories
  • Wall mounting kits: 4 pieces
  • Screws: 4 pieces
  • Cable tie: 10 pieces
  • Heat shrink protective sleeves: 16 pieces
  • Key: 1 piece
5G FTTA Fiber Optic Distribution Terminal Box with 96 Fibers Capacity ABS+PC Material for Wall or Pole Mounting 0
Detailed Technical Data
Model KCO-NAP-0424W
Material PC+ABS / ABS
Size 253×212×106mm
PLC 1pcs 1×16 steel tube PLC Splitter/ 1 pcs 1×24 steel tube PLC Splitter
Adapter 24pcs SC/UPC or SC/APC Adapters
Net Weight 1.3kg
Work Temperature -40 ~ +75°C
Ordering Information
Item Capacity Splitter Connector Adapter Logo
KCO-NAP-0224W 12 cores 1×2 SC/UPC SC/UPC KCO
1×4 SC/APC SC/APC Customized
OEM/ODM Service
We offer custom branding services for your products, including cable, packaging, labels, and other components. Our OEM and ODM services are available to meet your specific requirements.
Packaging & Shipping
Standard export packaging options include carton boxes, wooden boxes, and wooden pallets. Shipping methods available:
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • Sea freight
5G FTTA Fiber Optic Distribution Terminal Box with 96 Fibers Capacity ABS+PC Material for Wall or Pole Mounting 1
