PM Polarization Maintaining Fiber Optic Circulator 3 Port with FC APC Connector for 1064nm and 1310nm Wavelengths

  • PM Polarization Maintaining Fiber Optic Circulator 3 Port with FC APC Connector for 1064nm and 1310nm Wavelengths
  • PM Polarization Maintaining Fiber Optic Circulator 3 Port with FC APC Connector for 1064nm and 1310nm Wavelengths
  • PM Polarization Maintaining Fiber Optic Circulator 3 Port with FC APC Connector for 1064nm and 1310nm Wavelengths
  • PM Polarization Maintaining Fiber Optic Circulator 3 Port with FC APC Connector for 1064nm and 1310nm Wavelengths
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-PMFOC-3P-FCU-xxxxnm
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steelless Tube Type Length 1.0m
Type 1*2 1x2 Port No. 3 Port, Three Port
Connector FC/APC Cable 0.9mm
Wavelength 1064nm, 1310nm, 1490nm, 1550nm
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
PM Polarization Maintaining Fiber Optic Splitter Circulator 3 Port FC APC Single Mode
Product Description
PM Polarization Maintaining Fibre Optical Circulator Three Port 1310nm 1550nm FC APC Single Mode
  • Available in two types: single mode fiber optic circulator and PM (polarization maintaining) fiber optic circulator
  • Non-reciprocating, unidirectional, three-port devices for various optical setups
  • Center wavelength options: 1064, 1310 (O-Band), or 1550 nm (C-Band)
  • Fast axis blocked design for operation with light launched into the slow axis
  • Enables directional light travel while isolating reverse-direction light
  • Available with no connectors, FC/PC connectors, FC/APC connectors, or custom connectors
  • Applications include add/drop multiplexing in optical communication systems, bi-directional pumping, fiber sensing, and dispersion compensation

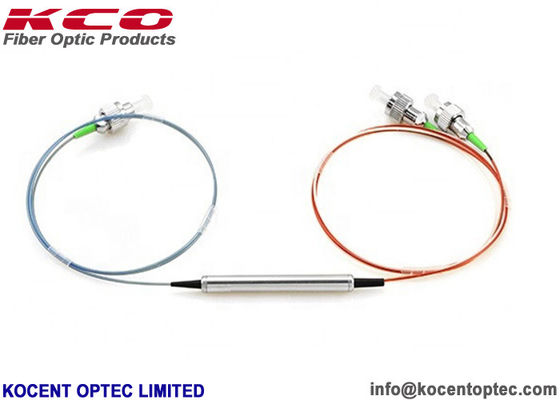

PM Polarization Maintaining Fiber Optic Circulator 3 Port with FC APC Connector for 1064nm and 1310nm Wavelengths 0
Key Characteristics
  • Non-Reciprocating operation
  • Unidirectional functionality
  • Center Wavelengths: 1064 nm, 1310 nm, or 1550 nm
  • Polarization-Maintaining Fiber options: Bare Fiber, FC/PC Connectors, or FC/APC Connectors
  • Fast Axis Blocking design

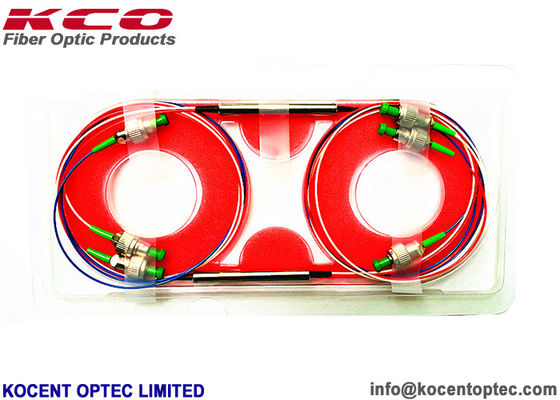

PM Polarization Maintaining Fiber Optic Circulator 3 Port with FC APC Connector for 1064nm and 1310nm Wavelengths 1
Applications
  • Fiber Sensors
  • EDFA (Erbium-Doped Fiber Amplifiers)
  • CATV Fiber Optic Links
  • Fiber Optic System Testing
  • Fiber Optic LAN Systems
  • Telecommunication networks
  • Add-Drop Multiplexing
  • Bidirectional Pumping
  • Bidirectional Signal Transmission Systems
  • Coupling In-Line Chromatic Dispersion Compensation Devices
Key Features
  • High Channel Isolation
  • Low Insertion Loss
  • High Return Loss
  • Low Polarization Dependent Loss (PDL)
  • High Stability and Reliability
  • Compact in-Line Package
  • Epoxy Free Optical Patch Cord
  • High-Power Options for 1064nm and 1550 nm
Product Images

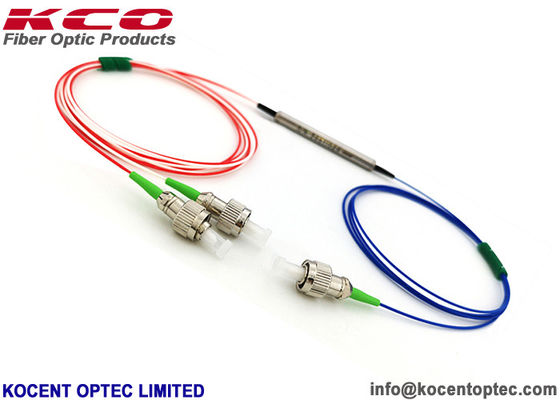

PM Polarization Maintaining Fiber Optic Circulator 3 Port with FC APC Connector for 1064nm and 1310nm Wavelengths 2
PM Polarization Maintaining Fiber Optic Circulator 3 Port with FC APC Connector for 1064nm and 1310nm Wavelengths 3
PM Polarization Maintaining Fiber Optic Circulator 3 Port with FC APC Connector for 1064nm and 1310nm Wavelengths 4
Technical Specifications
Grade GRADE P GRADE A
Construction Port1 to Port 2, Port2 to Port3
Operation Wavelength(nm) 1310/1550/1585
Standard Input Loss(23°C) 0.4 0.5
Max. Insertion Loss(23°C) 0.5 0.6
Max. Isolation(dB) 50
Min. Isolation(dB) 40
Directivity(dB) 50
PDL(dB) 0.15
PMD(ps) 0.1
RL(dB) 50
Bandwidth(nm) +/-30
Max. Operating Power(mw) 500/300
Operating Temperature(°C) 0~70
Storage Temperature(°C) -40~85
OEM/ODM Services
We offer custom branding options for cables, packaging, labels, and other components. Our OEM and ODM services can accommodate your specific requirements.
Packing & Shipping
Packing Options:
Standard export packing with carton boxes, wooden boxes, or wooden pallets.
Shipping Methods:
  • International express services (UPS, TNT, DHL, etc.)
  • International air freight (CA, AA, EA, etc.)
  • Sea freight
PM Polarization Maintaining Fiber Optic Circulator 3 Port with FC APC Connector for 1064nm and 1310nm Wavelengths 5
