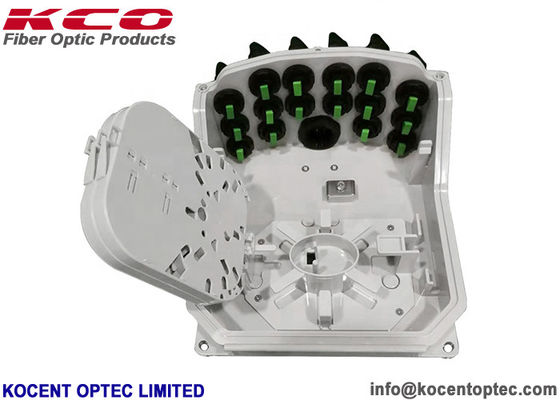

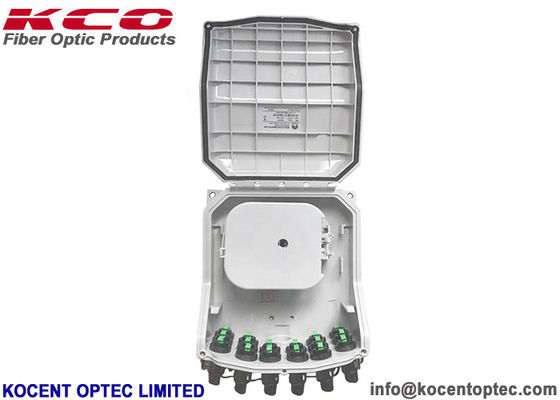

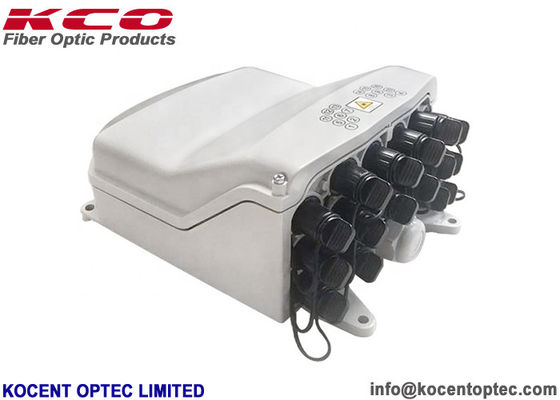

16 Port Fiber Optic Termination Box with 1x16 PLC Splitter Capacity and Huawei Mini SC Connector for FTTx Networks

  • 16 Port Fiber Optic Termination Box with 1x16 PLC Splitter Capacity and Huawei Mini SC Connector for FTTx Networks
  • 16 Port Fiber Optic Termination Box with 1x16 PLC Splitter Capacity and Huawei Mini SC Connector for FTTx Networks
  • 16 Port Fiber Optic Termination Box with 1x16 PLC Splitter Capacity and Huawei Mini SC Connector for FTTx Networks
  • 16 Port Fiber Optic Termination Box with 1x16 PLC Splitter Capacity and Huawei Mini SC Connector for FTTx Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-NAP-0216S
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS, ABS+PC P/N KCO-NAP-0216S
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Indoor IP55 Capacity 48 Ports SC Simplex Or 96 Ports LC
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
Huawei Mini SC H Connector Fibre Optic Termination Box 16 Port PLC Fiber Optic Splitter KCO-NAP-0216S
Product Description

GPX147 Outdoor Fibra Optica Access Terminal Box 16 Port SC/APC KCO-NAP-0216S FAT Box is designed for FTTx network systems, serving as a termination point between feeder and drop cables. This robust enclosure integrates fiber splicing, splitting, distribution, storage, and cable connection in a single protective unit.

Key Features
  • Holds up to 16 subscribers with 16 output ports for drop cables
  • Compatible with Huawei mini SC APC waterproof connectors
  • IP-65 water-proof design for outdoor applications
  • All stainless metal plate with anti-rusting hardware
  • Fiber bend radius control (>40mm) for optimal performance
  • Supports both fusion splicer and mechanical splice methods
  • Wall mount and pole mount options available
Quick Specifications
  • Part Number: KCO-NAP-0216S
  • Material: ABS+PC construction
  • Dimensions: 260×215×115mm
  • Weight: 1.20kg
  • Capacity: 1×16 PLC splitter (mini type with SC connector)
  • Temperature Range: -40℃ to +85℃
  • Color: Light Gray
Technical Specifications
Parameter Value
IP Protection Grade 65
Maximum Cable Diameter 18mm
Adapter Type Waterproof SC simplex
Insertion Loss ≤0.15dB
UPC Return Loss ≥50dB
APC Return Loss ≥60dB
Insulation Resistance ≥2×10⁴MΩ/500V (DC)
Voltage Resistance ≥3000V (DC)/min
16 Port Fiber Optic Termination Box with 1x16 PLC Splitter Capacity and Huawei Mini SC Connector for FTTx Networks 0 16 Port Fiber Optic Termination Box with 1x16 PLC Splitter Capacity and Huawei Mini SC Connector for FTTx Networks 1
Environmental Specifications
  • Working temperature: -40℃ to +85℃
  • Relative humidity: ≤85% at +30℃
  • Atmospheric pressure: 70KPa to 106Kpa
Packing & Shipping
  • Packing: 1pc/carton box (standard export packing available)
  • Shipping Options: International express (DHL, UPS, TNT), air freight, or sea freight
  • Standard Ports: Shenzhen, Hongkong, Ningbo
OEM/ODM Services

Custom branding available for cables, packaging, labels, and other components upon request.
