16 Cores IP65 Waterproof Fiber Optic Terminal Box with Mechanical Sealing Structure for FTTx Networks

  • 16 Cores IP65 Waterproof Fiber Optic Terminal Box with Mechanical Sealing Structure for FTTx Networks
  • 16 Cores IP65 Waterproof Fiber Optic Terminal Box with Mechanical Sealing Structure for FTTx Networks
  • 16 Cores IP65 Waterproof Fiber Optic Terminal Box with Mechanical Sealing Structure for FTTx Networks
  • 16 Cores IP65 Waterproof Fiber Optic Terminal Box with Mechanical Sealing Structure for FTTx Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-NAP-0216S
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS, ABS+PC P/N KCO-NAP-0216S
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Indoor IP55 Capacity 48 Ports SC Simplex Or 96 Ports LC
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
GPX147 FAT Fiber Optic Terminal Box 16 Cores KCO-NAP-0216S
KCO-NAP-0216S Outdoor Optical Fiber Distribution Box / 16 Cores GPX147 FAT Box
Quick Information
  • Product name: Outdoor fibre optic distribution box
  • P/N: KCO-NAP-0216S
  • Color: Light Gray
  • Material: ABS+PC
  • Size: 260*215*115mm
  • Weight: About 1.20kgs
  • Packing: 1pc/carton box
  • Installation: Pole mount, wall mount
  • Water-proof class: IP65
Product Description
The KCO-NAP-0216S outdoor fiber optic distribution splitter box serves as a termination point for feeder cable to connect with drop cable in FTTx communication network systems. Designed for outdoor applications, this fiber access termination box supports up to 16 subscribers.
This robust enclosure integrates fiber splicing, splitting, distribution, storage and cable connection in one protective housing. It can accommodate 1×8 mini type fiber optic PLC splitter and is compatible with Huawei mini SC APC waterproof connectors.
Applications
  • FTTA, FTTH, FTTB, FTTC, FTTO
  • Telecommunication Networks
  • Local Area Networks
  • CATV Systems
Key Features
  • 16 output ports for drop cable
  • Optional installation of 1×16 splitter
  • Suitable for indoor/outdoor, wall or pole mounting
  • IP65 waterproof protection
  • Stainless steel plates with anti-rust hardware
  • Fiber bend radius control (>40mm)
  • Compatible with fusion splicers or mechanical splices
  • Mechanical sealing structure with mid-span cable entry
Technical Specifications
Model KCO-NAP-0216S
IP Protection Grade 65
Material ABS+PC
Splice Trays 1
Max Cable Diameter 18mm
Capacity PLC1×8, PLC1×16, 16SC
Operating Temperature -40℃ to +85℃
Adapter Waterproof SC simplex
Weight 1.2kg
Dimensions 260×215×115mm
Technical Data
  • Environmental Requirements:
    Working temperature: -40℃~+85℃
    Relative humidity: ≤85% (+30℃)
    Atmospheric pressure: 70KPa~106Kpa
  • Performance:
    Insertion loss: ≤0.15dB
    UPC return loss: ≥50dB
    APC return loss: ≥60dB
  • Thunder Protection:
    Insulation resistance: ≥2×10⁴MΩ/500V (DC)
    Voltage resistance: ≥3000V (DC)/min
Product Images

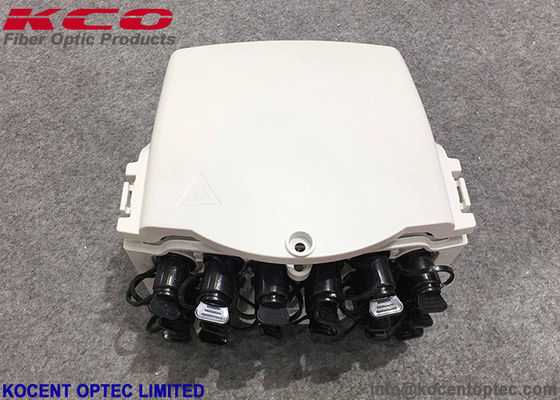

16 Cores IP65 Waterproof Fiber Optic Terminal Box with Mechanical Sealing Structure for FTTx Networks 0

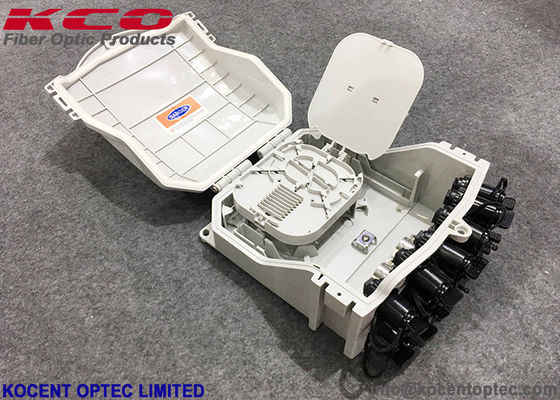

16 Cores IP65 Waterproof Fiber Optic Terminal Box with Mechanical Sealing Structure for FTTx Networks 1

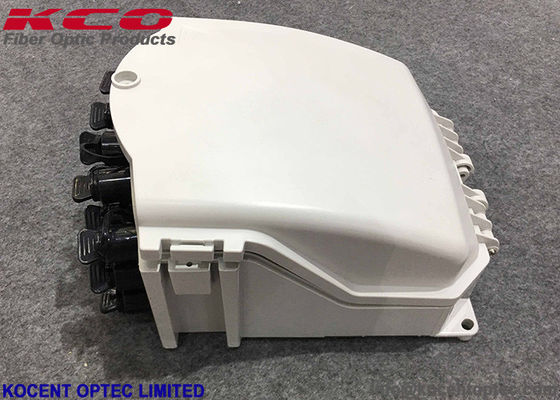

16 Cores IP65 Waterproof Fiber Optic Terminal Box with Mechanical Sealing Structure for FTTx Networks 2
16 Cores IP65 Waterproof Fiber Optic Terminal Box with Mechanical Sealing Structure for FTTx Networks 3
OEM/ODM Services
Custom branding available for cables, packaging, labels or any visible components. Our OEM and ODM services can accommodate your specific requirements.
Packaging & Shipping
  • Packaging: Standard export packaging with carton boxes, wooden boxes, or pallets
  • Shipping Methods:
    • International express: UPS, TNT, DHL
    • Air freight: CA, AA, EA
    • Sea freight: COSCO, HUYNDAI
    • Ports: Shenzhen, Hongkong, Ningbo
