Outdoor Fiber Optic Distribution Box with 24 Ports IP65 Rated for FTTH Wall or Pole Mount 1x16 2x16 Splitter

  • Outdoor Fiber Optic Distribution Box with 24 Ports IP65 Rated for FTTH Wall or Pole Mount 1x16 2x16 Splitter
  • Outdoor Fiber Optic Distribution Box with 24 Ports IP65 Rated for FTTH Wall or Pole Mount 1x16 2x16 Splitter
  • Outdoor Fiber Optic Distribution Box with 24 Ports IP65 Rated for FTTH Wall or Pole Mount 1x16 2x16 Splitter
  • Outdoor Fiber Optic Distribution Box with 24 Ports IP65 Rated for FTTH Wall or Pole Mount 1x16 2x16 Splitter
  • Outdoor Fiber Optic Distribution Box with 24 Ports IP65 Rated for FTTH Wall or Pole Mount 1x16 2x16 Splitter
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-SMC-0224X
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material SMC, ABS, ABS+PC P/N KCO-SMC-0224X
Color White, Grey Connector SC, ST, LC, FC, E2000, Etc
Application Indoor IP65 Capacity 24 Ports
Cable Port 2 Port Max. Capacity 24 Fiber For SC, 48 Fiber For LC
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
Wall / Pole Mount Outdoor Fiber Optic Distribution Box 1*16 2*16 Splitter KCO-SMC-0224X
The KCO-SMC-0224X is a versatile outdoor fiber optic distribution terminal box designed for both wall and pole mounting applications. This dual-purpose enclosure serves as both a distribution box and splitter box, accommodating up to 24 port adapters with various connector types.
Key Features
  • Constructed from high-quality SMC plastic for durability
  • Supports installation of 24pcs LC, FC, ST, SC, or E2000 adapters
  • Four waterproof cable entry ports for secure connections
  • Adapter plate capacity: maximum 24 ports
  • Splitter plate capacity: 1pc 1*16 or 2*16 LGX splitter or 2pcs 1*8 Splitter with SC port
  • IP65 rated for outdoor protection
  • Flexible installation options: wall, pole, floor standing, or cabinet mounted
Applications
  • FTTH outdoor projects
  • Wall mounting and pole mounting installations
  • FTTH pre-installation and field installation with 2*3mm indoor FTTH drop cable
  • Outdoor figure-8 FTTH self-supporting drop cable
Product Specifications
Model KCO-SMC-0224X
Material SMC Plastic (PC+ABS or ABS or customized)
Dimension 390*310*130mm
Weight 3.5kgs
Cable Entry 02 cable entrance: 10-16.5mm
Max. Capacity 24 Fibers, 1tray x 24F
Adapter Max. 24pcs SC simplex (LC, FC, MT optional)
Sealing structure Mechanical sealing with PE waterproof sealing ring
PLC Splitter Max. LGX 1*16 Splitter
IP Grade IP65
Operating Temperature -40°C~+80°C
Relative Humidity <95%(+40°C)
Insulated Resistance >2x10MΩ/500V(DC)
Product Images

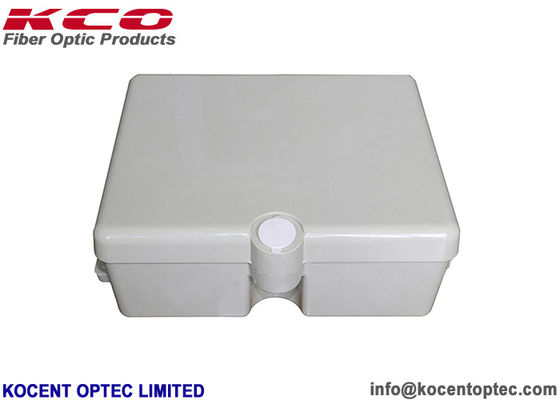

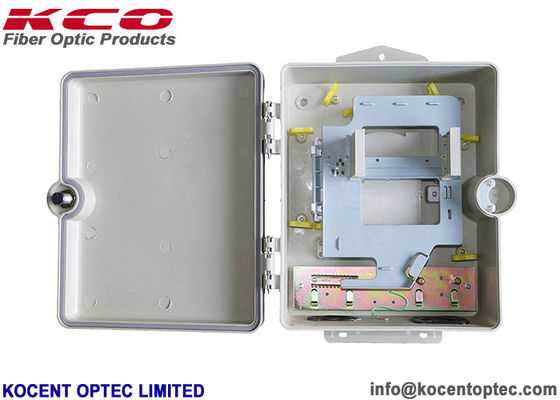

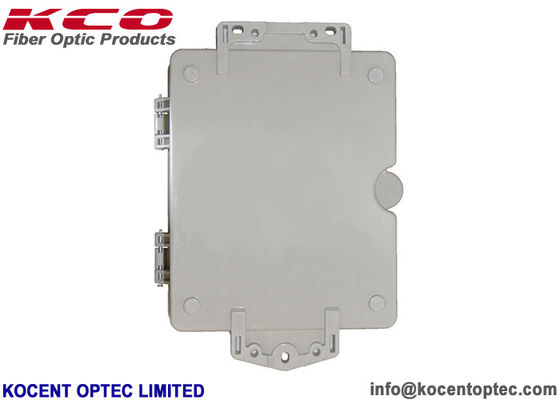

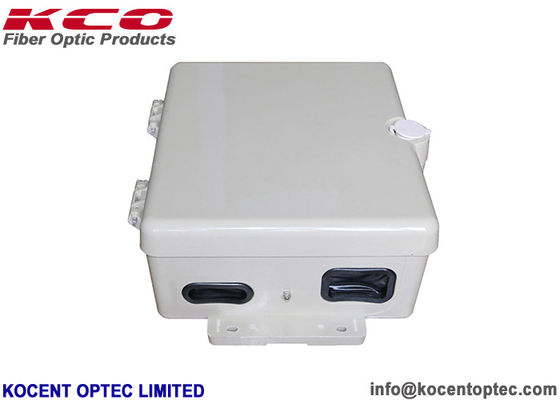

Outdoor Fiber Optic Distribution Box with 24 Ports IP65 Rated for FTTH Wall or Pole Mount 1x16 2x16 Splitter 0 Outdoor Fiber Optic Distribution Box with 24 Ports IP65 Rated for FTTH Wall or Pole Mount 1x16 2x16 Splitter 1 Outdoor Fiber Optic Distribution Box with 24 Ports IP65 Rated for FTTH Wall or Pole Mount 1x16 2x16 Splitter 2 Outdoor Fiber Optic Distribution Box with 24 Ports IP65 Rated for FTTH Wall or Pole Mount 1x16 2x16 Splitter 3 Outdoor Fiber Optic Distribution Box with 24 Ports IP65 Rated for FTTH Wall or Pole Mount 1x16 2x16 Splitter 4
Additional Information

Kocent Optec Limited provides comprehensive OEM services for all ODF boxes, distribution boxes, and terminal boxes. Custom logo printing is available for orders exceeding 1000 pieces, with free lettering for orders over 10,000 pieces.

The box can be supplied empty or pre-loaded with adapters, pigtails, or splitters as requested. Our complete fiber optic product supply chain ensures flexible configuration options to meet your specific requirements.

Packaging & Shipping
  • Standard export packing: carton box, wooden box, or wooden pallet
  • Shipping options: international express (UPS, TNT, DHL), air freight, or sea freight
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
Outdoor Fiber Optic Distribution Box with 24 Ports IP65 Rated for FTTH Wall or Pole Mount 1x16 2x16 Splitter 5
