1U 12 Core Fiber Optic Terminal Box for 19'' Distribution Frame with Steel Material

  • 1U 12 Core Fiber Optic Terminal Box for 19'' Distribution Frame with Steel Material
  • 1U 12 Core Fiber Optic Terminal Box for 19'' Distribution Frame with Steel Material
  • 1U 12 Core Fiber Optic Terminal Box for 19'' Distribution Frame with Steel Material
  • 1U 12 Core Fiber Optic Terminal Box for 19'' Distribution Frame with Steel Material
  • 1U 12 Core Fiber Optic Terminal Box for 19'' Distribution Frame with Steel Material
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODFU-12
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC, FC, ST, LC, E2000, Etc Application 19' Fiber Optic Distribution Frame
Capacity 12 Fibers Type Distribution Unit
Material Steel Thickness 1.2mm
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
1U 12 Core Fiber Optic Terminal Box - Steel Material for 19'' Distribution Frame

The 12FO Fiber Optic Distribution Box is a 1U 12-core fiber optic ODF unit designed for 19'' distribution frames. This ODF unit box serves as a complete fiber management system for cable inputting, fixing, protecting, and splicing with pigtails.

Key Features
  • Composed of case body, fiber optical splice tray and adaptor fixing frame
  • Divided into two functional parts: optical cable fusion connection and patch cord connection
  • Combines fusion, connection, surplus fiber holding, and patch cord holding in one integrated unit
  • Special plastic rings ensure fiber bending radius >40mm
  • Adapter panel supports various adapter types (SC, LC, FC, ST, E2000)
  • Bottom cable entry with protective rubber parts
  • Flexible configuration for easy installation and maintenance
Quick Specifications
Part Number KCO-ODFU-12
Size 485×300×44.5mm
Capacity 12 cores (for SC), 24 cores (for LC)
Material Steel
Compatible Cables Outdoor cable, indoor cable, FTTH cable
Max Cable Diameter 22.0mm
Adapter Types SC, LC, FC, ST, E2000
Product Dimensions
P/N Capacity Dimension Weight
KCO-ODFU-12 12 cores 485×300×45mm 3.9kg
KCO-ODFU-24 24 cores 485×300×75mm 4.7kg
KCO-ODFU-48 48 cores 485×300×140mm 6.9kg
KCO-ODFU-72 72 cores 485×300×198mm 9.2kg
KCO-ODFU-96 96 cores 485×300×252mm 11kg
KCO-ODFU-144 144 cores 485×300×340mm 14kg
Applications
  • FTTH, FTTx, FTTB networks
  • LAN installations
  • Data centers
  • Local area networks

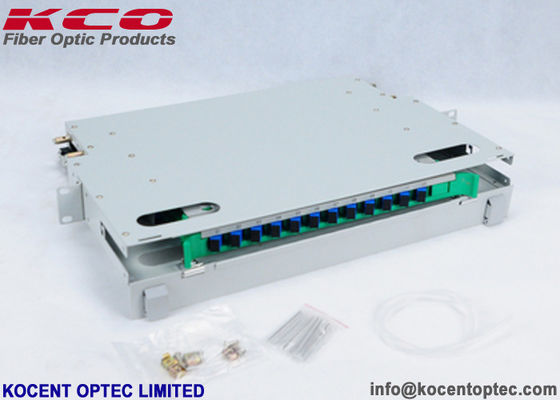

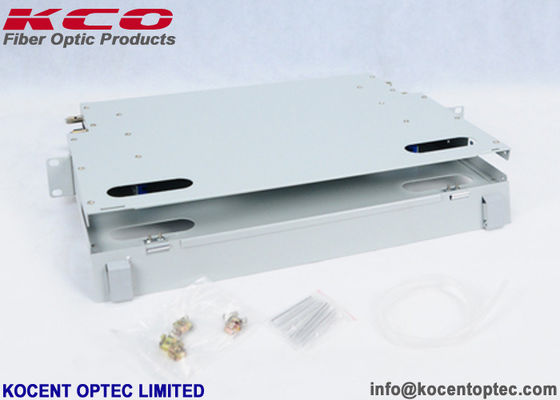

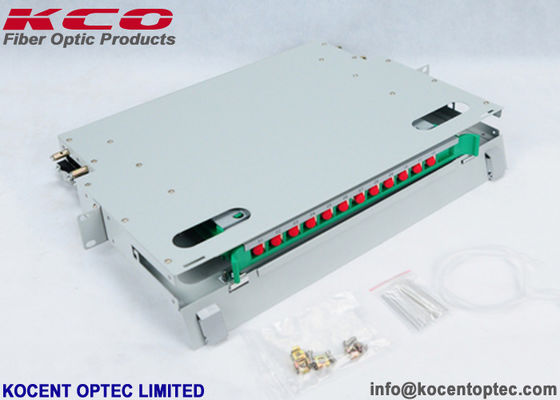

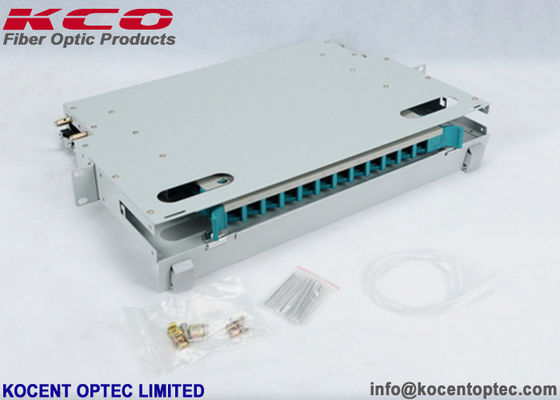

Product Images
1U 12 Core Fiber Optic Terminal Box for 19'' Distribution Frame with Steel Material 0
1U 12 Core Fiber Optic Terminal Box for 19'' Distribution Frame with Steel Material 1
Operating Conditions
Temperature: -45°C to +85°C
Humidity: ≤85% at +30°C
Atmospheric Pressure: 70KPa~106KPa
Technical Specifications
Wavelength: 850nm, 1310nm, 1550nm
Connector Loss: ≤0.2dB
Insertion Loss: ≤0.2dB
Return Loss: ≥50dB (UPC), ≥60dB (APC)
Insulation Resistance: >1000MΩ/500V(DC)
OEM/ODM Services

Custom branding options available for cables, packaging, labels, and products. Contact our sales team for OEM/ODM support.

Packaging & Shipping
Packaging: Standard export packing (carton box, wooden box, pallet)
Shipping Methods: International express (UPS, TNT, DHL), air freight, sea freight
Export Ports: Shenzhen, Hongkong, Ningbo
Export Airports: Shenzhen, Hongkong, Hangzhou, Shanghai
