Steel 24 Core Fiber Optic Distribution Box with 19'' Standard and 1.0mm Thickness for FTTX Applications

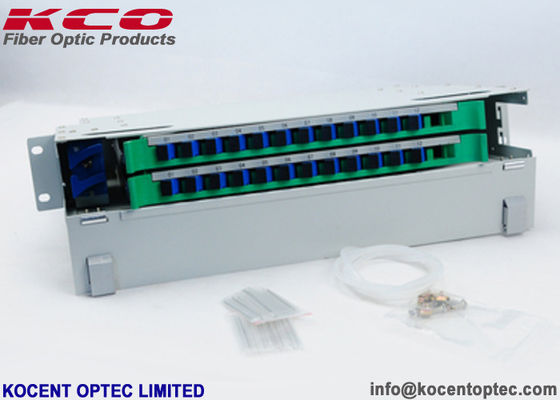

  • Steel 24 Core Fiber Optic Distribution Box with 19'' Standard and 1.0mm Thickness for FTTX Applications

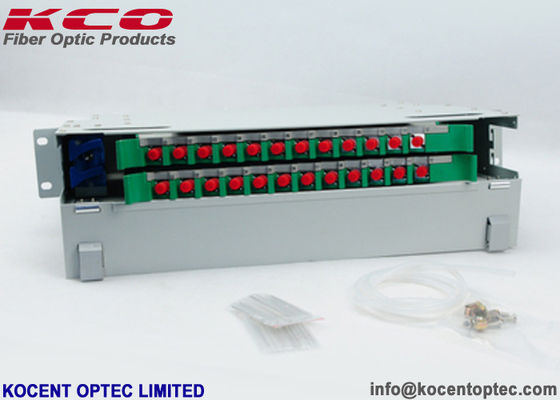

  • Steel 24 Core Fiber Optic Distribution Box with 19'' Standard and 1.0mm Thickness for FTTX Applications

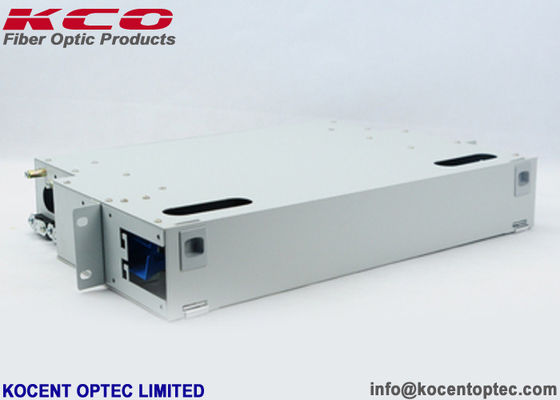

  • Steel 24 Core Fiber Optic Distribution Box with 19'' Standard and 1.0mm Thickness for FTTX Applications

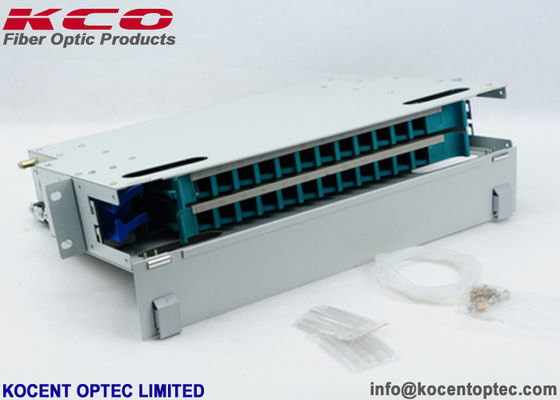

  • Steel 24 Core Fiber Optic Distribution Box with 19'' Standard and 1.0mm Thickness for FTTX Applications
  • Steel 24 Core Fiber Optic Distribution Box with 19'' Standard and 1.0mm Thickness for FTTX Applications
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODFU-24
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC, FC, ST, LC, E2000, Etc Application 19' Fiber Optic Distribution Frame
Capacity 24 Fibers Type Distribution Unit
Material Steel Thickness 1.0mm
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
Steel 24FO Fiber Optic Distribution Box 24 Core 19'' Fiber Terminal Patch Panel
The 24FO Fiber Optic Distribution Box is a professional-grade 24-core fiber optic ODF unit designed for 19" rack installation. This fiber terminal patch panel provides comprehensive cable management including fixation, termination, splicing, distribution, and protection of fiber cores and pigtails.
Key Features
  • 19" standard rack installation with universal compatibility
  • Available in multiple core configurations (12, 24, 48, 72, 96, 144 cores)
  • Supports various adapter types (SC, LC, FC, ST, E2000)
  • Flexible configuration with easy installation and maintenance
  • Removable front/rear doors and side panels for accessibility
  • Optional cooling fans and adjustable cable entry points
  • High-grade security with toughened glass door and lock
  • Compact flat-pack shipping (approximately 1/3 assembled volume)
Technical Specifications
Part Number Capacity Dimensions Weight
KCO-ODFU-12 12 cores 485×300×45mm 3.9kg
KCO-ODFU-24 24 cores 485×300×75mm 4.7kg
KCO-ODFU-48 48 cores 485×300×140mm 6.9kg
KCO-ODFU-72 72 cores 485×300×198mm 9.2kg
KCO-ODFU-96 96 cores 485×300×252mm 11kg
KCO-ODFU-144 144 cores 485×300×340mm 14kg
Performance Qualifications
Nominal wavelength: 850nm, 1310nm, 1550nm
Connector loss ≤0.2dB
Insertion loss ≤0.2dB
Return loss ≥50dB (UPC), ≥60dB (APC)
Insulation resistance >1000MΩ/500V(DC)
Operating Conditions
Temperature range: -45°C to +85°C
Relative humidity ≤85% at +30°C
Atmospheric pressure: 70KPa~106KPa
Applications
  • FTTX networks (FTTH, FTTB, FTTO, FTTC, FTTA)
  • Local Area Networks (LAN)
  • Data centers
  • Telecommunication infrastructure
OEM/ODM Services
Custom branding options available for products, packaging, and labels. Contact our sales team for personalized solutions.
Steel 24 Core Fiber Optic Distribution Box with 19'' Standard and 1.0mm Thickness for FTTX Applications 0
Packaging & Shipping
Packaging: Standard export packing with carton boxes, wooden cases, or pallets.
Shipping Methods: International express (DHL, UPS, TNT), air freight, or sea freight.
Export Ports: Shenzhen, Hong Kong, Ningbo (sea); Shenzhen, Hong Kong, Hangzhou, Shanghai (air).
