72 Core Rack Mount Fiber Optic Terminal Box with SC FC LC Connectors for 19' Distribution Frame

  • 72 Core Rack Mount Fiber Optic Terminal Box with SC FC LC Connectors for 19' Distribution Frame
  • 72 Core Rack Mount Fiber Optic Terminal Box with SC FC LC Connectors for 19' Distribution Frame
  • 72 Core Rack Mount Fiber Optic Terminal Box with SC FC LC Connectors for 19' Distribution Frame
  • 72 Core Rack Mount Fiber Optic Terminal Box with SC FC LC Connectors for 19' Distribution Frame
  • 72 Core Rack Mount Fiber Optic Terminal Box with SC FC LC Connectors for 19' Distribution Frame
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODFU-72
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC, FC, ST, LC, E2000, Etc Application 19' Fiber Optic Distribution Frame
Capacity 72 Fibers Type Distribution Unit
Material Steel Thickness 1.0mm
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
FC SC LC Patch Panel Fiber Optic Terminal Box 72 Core Rack Mount ODF Unit
The 72FO Rackmount Fiber Optic Distribution Box is a professional-grade ODF unit designed for fiber optic communication rooms. This 72-core fiber optic patch panel provides cable fixation, termination, and line adjustment capabilities, making it an essential component for information room infrastructure.
Key Features
  • 19" standard rack mount design for universal compatibility
  • Available in 1U, 2U, 3U, 4U or 6U height configurations
  • Supports 12-144 core capacity (12 core per tray)
  • Compatible with multiple adapter types: SC, LC, FC, ST, E2000
  • Integrated cable input, fixation, protection, and splicing functions
  • Can be installed in distribution frames or composite cabinets
  • Flexible configuration with easy installation and maintenance
Dimensions & Specifications
Model Capacity Dimensions Weight
KCO-ODFU-12 12 cores 485×300×45mm 3.9kg
KCO-ODFU-24 24 cores 485×300×75mm 4.7kg
KCO-ODFU-48 48 cores 485×300×140mm 6.9kg
KCO-ODFU-72 72 cores 485×300×198mm 9.2kg
KCO-ODFU-96 96 cores 485×300×252mm 11kg
KCO-ODFU-144 144 cores 485×300×340mm 14kg
Technical Parameters
  • Operating temperature: -5°C to +45°C
  • Relative humidity: ≤85% at 30°C
  • Atmospheric pressure: 70-166 KPa
  • Connector attenuation: ≤0.5dB
  • Insertion loss: ≤0.3dB
  • Return loss: APC ≥60dB, UPC ≥50dB, PC ≥45dB
  • High voltage protection: ≥3000V (DC) for 1min
  • Isolation resistance: ≥100MΩ/500V (DC)
  • 30° adapter arrangement ensures fiber bending radius ≥40mm
Structural Features
  • High-quality cold-rolled plate construction with electrostatic spray finish
  • Imported locks on downward and side doors
  • Bar adapter panel supports FC, SC, ST, LC adapters
  • Includes reinforced core and cable fixation seat
Performance Advantages
  • Excellent sealing performance with flexible configuration
  • Combines fiber splicing, cable storage, and distribution functions
  • Easy operation with reliable grounding for safety
  • Full fiber protection maintaining ≥40mm bending radius
Product Images

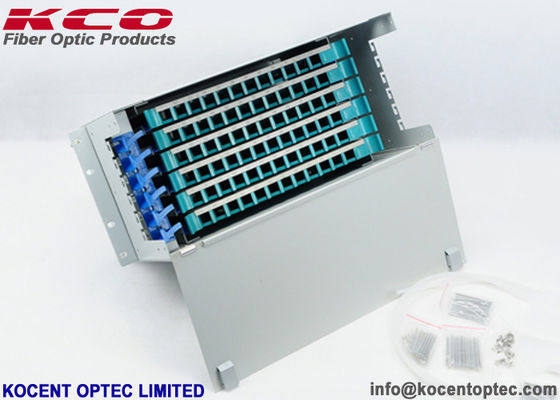

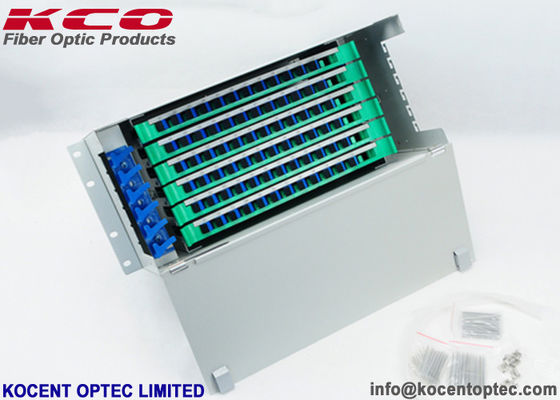

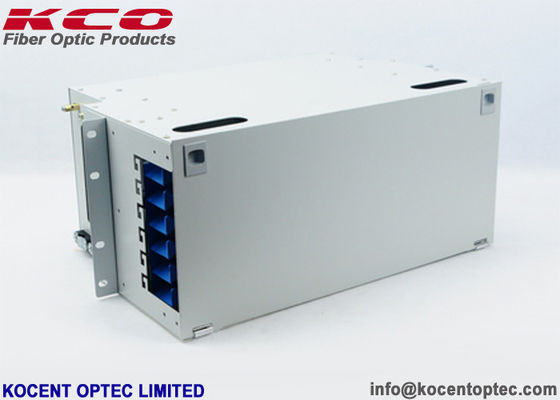

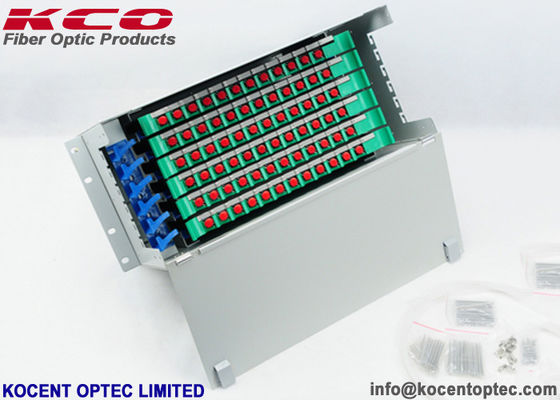

72 Core Rack Mount Fiber Optic Terminal Box with SC FC LC Connectors for 19' Distribution Frame 0 72 Core Rack Mount Fiber Optic Terminal Box with SC FC LC Connectors for 19' Distribution Frame 1 72 Core Rack Mount Fiber Optic Terminal Box with SC FC LC Connectors for 19' Distribution Frame 2
OEM/ODM Services
We offer custom branding services for your logo on cables, packaging, labels, or any visible location. Contact our sales team for OEM/ODM support.
Packaging & Shipping
  • Standard export packaging options: carton box, wooden box, or wooden pallet
  • Shipping methods: International express (UPS, TNT, DHL), air freight, or sea freight
  • Standard export ports: Shenzhen, Hong Kong, Ningbo, Shanghai
