FC SC LC Patch Panel Fiber Optic Terminal Box 72 Core Rack Mount ODF Unit

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODFU-72
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC, FC, ST, LC, E2000, Etc Application 19' Fiber Optic Distribution Frame
Capacity 72 Fibers Type Distribution Unit
Material Steel Thickness 1.0mm
High Light

optical termination box

,

fibre termination box

Leave a Message
Product Description

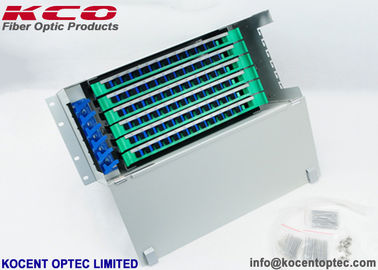

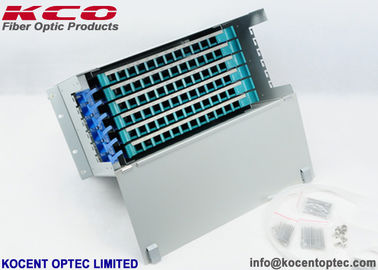

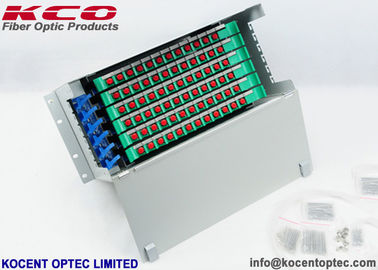

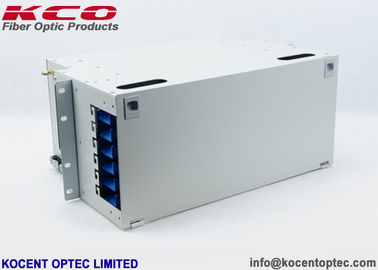

72FO Rackmount Fiber Optic Distribution Box / 72core Fiber Optic ODF Unit / FC SC LC Patch Panel





Description:

- ODF unit is an optical fiber wiring equipment specially designed for optical fiber communication room. It has the functions of fiber cable fixation and protection, optical cable termination function and line adjustment function. It is an indispensable part of the information room

- ODF unit box, fiber optic splicing and distribution box, also named ODF fiber management system.

- 19"standard installation has good versatility.

- The high of unit box can be 1U, 2U, 3U, 4U or 6U. We can supply full loaded with adapter and pigtail of diber optic ditribution unit.

- It can be 12 cores, 24 cores, 48 cores, 72 cores, 96 cores and even 144 cores.

- With common adapter port, we can use many type of fiber optic adapter on it such as SC, LC, FC square, ST, E2000, etc.

- It is used for cable inputting, fixing, protecting, and splicing with pigtails. The product is specially designed for fiber distribution in fiber optic communication service center.

- It can be installed in the distribution frame, and can be also assembly with digital distribution unit, and audio distribution unit together in one fiber optic composite cabinet.

- The product is with flexible configuration, easy to install and maintain, convenient to manage.

- It is the necessary device in termination of fiber optic network, and can realize the distribution at the intermediate route.

- The fiber optic distribution Unit is designed to use in the standard 19 inch fiber optic distribution frame.






Dimension:

P/N Capacity Dimension Weight
KCO-ODFU-12 12 cores 485x300x45mm 3.9kg
KCO-ODFU-24 24 cores 485x300x75mm 4.7kg
KCO-ODFU-48 48 cores 485x300x140mm 6.9kh
KCO-ODFU-72 72 cores 485x300x198mm 9.2kg
KCO-ODFU-96 96 cores 485x300x252mm 11kg
KCO-ODFU-144 144 cores 485x300x340mm 14kg



Main Technical Parameters:

- Environment temperature: -5 ~+45°C
- Relatively humidity:≤85% (+30°C)
- Atmospheric pressure:70~166 KPa
- Connector attenuation (Interchangeable and repeat): ≤0.5dB
- Insertion loss: ≤ 0.3dB
- Return loss: APC ≥ 60dB; UPC ≥ 50dB; PC ≥ 45dB
- Pressure between high voltage protection place and distribution frame: ≥ 3000V (DC), 1min no breakdown, no arc
- Isolation resistance between high voltage protection place and distribution frame: ≥ 100MΩ/ 500V (DC)
- By cascading 12 port splice integration module, configurable 12-144 core, 12 core per tray
- Clamping FC/SC/ST/LC adapter, the adapter was 30 degrees arrangement, ensure the jumping fiber bending radius≥40mm, but also can avoid the laser burns eyes.



Structure features:

- Made of high quality cold-rolled plate and the surface electrostatic spray, beautiful appearance
- The downward and the side door use imported lock
- The bar adapter panel can be installed adapters like: FC, SC, ST, LC,etc
- Configure reinforced core and cable fixed seat,complete accessories



Performance advantage:

- Good sealing performance, flexible configuration, quick installation
- Set three functions: the optical fiber splice, cable storage, cable distribution in one set
- Easy operation, reliable grounding, protect the safety
- The full protection of the jumping fiber, ensure the bending radius ≥ 40mm









Rackmount ODF series:



FC SC LC Patch Panel Fiber Optic Terminal Box 72 Core Rack Mount ODF Unit 0



Relation product:



FC SC LC Patch Panel Fiber Optic Terminal Box 72 Core Rack Mount ODF Unit 1



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

FC SC LC Patch Panel Fiber Optic Terminal Box 72 Core Rack Mount ODF Unit 2



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
