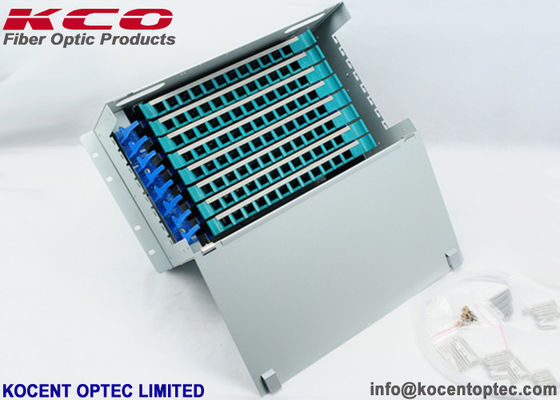

96 Core 19'' Standard Rack Mount Fiber Optic Terminal Box with 48 Fibers Capacity

  • 96 Core 19'' Standard Rack Mount Fiber Optic Terminal Box with 48 Fibers Capacity
  • 96 Core 19'' Standard Rack Mount Fiber Optic Terminal Box with 48 Fibers Capacity
  • 96 Core 19'' Standard Rack Mount Fiber Optic Terminal Box with 48 Fibers Capacity
  • 96 Core 19'' Standard Rack Mount Fiber Optic Terminal Box with 48 Fibers Capacity
  • 96 Core 19'' Standard Rack Mount Fiber Optic Terminal Box with 48 Fibers Capacity
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODFU-96
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC, FC, ST, LC, E2000, Etc Application 19' Fiber Optic Distribution Frame
Capacity 48 Fibers Type Distribution Unit
Material Steel Thickness 1.0mm
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
96 Core Rack Mount Fiber Optic Terminal Box ODF Unit / 96fo Steel Material
Product Description
96core Rack Mount ODF Unit / 96fo Fiber Optic Patch Panel / 19'' Optical Distribution Box
Key Features
  • Constructed with cold-roll steel box, splicing unit, distribution unit and panel
  • Compatible with various panel plates to accommodate different adapter interfaces
  • Supports multiple adapter types: FC, SC, ST, LC
  • Suitable for both single fiber and ribbon & bundle fiber cables
  • Specialized design maintains organization of excess fiber cords and pigtails
  • Streamlined layout for easy management and operation
Detailed Specifications
The ODF Unit is designed for rack-mountable installation in fiber optic distribution frames (also called fiber optic cabinets). Following 19" standard installation for universal compatibility.
Available in multiple configurations:
  • Height options: 1U, 2U, 3U, 4U or 6U
  • Core capacity options: 12, 24, 48, 72, 96, and 144 cores
  • Can be supplied fully loaded with adapters and pigtails
  • Supports various fiber optic adapters including SC, LC, FC square, ST, E2000
Technical Specifications
P/N Capacity Dimension Weight
KCO-ODFU-12 12 cores 485x300x45mm 3.9kg
KCO-ODFU-24 24 cores 485x300x75mm 4.7kg
KCO-ODFU-48 48 cores 485x300x140mm 6.9kg
KCO-ODFU-72 72 cores 485x300x198mm 9.2kg
KCO-ODFU-96 96 cores 485x300x252mm 11kg
KCO-ODFU-144 144 cores 485x300x340mm 14kg
Operating Conditions
  • Temperature range: -45°C to +85°C
  • Relative humidity: ≤85% at +30°C
  • Atmospheric pressure: 70KPa to 106KPa
Performance Qualifications
  • Nominal work wavelength: 850nm, 1310nm, 1550nm
  • Connectors loss: ≤0.2dB
  • Insert loss: ≤0.2dB
  • Return loss: ≥50dB (UPC), ≥60dB (APC)
  • Insulation resistance: >1000MΩ/500V (DC) between frame and protection grounding
Product Images
96 Core 19'' Standard Rack Mount Fiber Optic Terminal Box with 48 Fibers Capacity 0 96 Core 19'' Standard Rack Mount Fiber Optic Terminal Box with 48 Fibers Capacity 1
OEM/ODM Services
We offer custom branding services for your logo on products, packaging, labels, or any visible location. Contact our sales team for personalized support.
Packaging
  • Standard export packaging
  • Options include carton box, wooden box, or wooden pallet
96 Core 19'' Standard Rack Mount Fiber Optic Terminal Box with 48 Fibers Capacity 2
Shipping Options
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • Sea freight
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
96 Core 19'' Standard Rack Mount Fiber Optic Terminal Box with 48 Fibers Capacity 3
