19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection

  • 19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection
  • 19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection
  • 19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection
  • 19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODFU-144
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC, FC, ST, LC, E2000, Etc Application 19' Fiber Optic Distribution Frame
Capacity 144 Fibers Type Distribution Unit
Material Steel Thickness 1.0mm
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description
19" Fiber Optic Distribution Box 144 Core ODF Unit / 144fo Patch Panel For Cabinet
144core ODF Unit / 144fo Fiber Optic Patch Panel / 144fiber 19" Optical Distribution Box For Cabinet
Product Description
  • Specially designed for optical fiber communication equipment rooms
  • Provides cable fixation, fiber cable terminating protection, wiring, distribution, and fiber core protection
  • Metal plate unit box structure with attractive appearance
  • 19" standard installation for excellent versatility
  • Complete modular design with front operation capability
  • Integrated unit box combines fiber fusion, splicing, wiring, and distribution
  • Each splice tray can be pulled out separately for convenient operation
Key Features
  • Integrated tray with cable fiber and pigtail fiber fusion protection
  • Fiber connector plug adjustment and transmission line marking
  • Supports optical cable grounding unit with introduction fixed protection
  • Optical cable metal and frame insulation with high voltage protective grounding
  • Ideal for wiring connections in industry or communication cabinets
  • Suitable for both indoor and outdoor watertight environments
  • Cold-roll steel box construction with splicing, distribution units and panel
  • Various panel plates to accommodate different adapter interfaces
  • Supports adapter types: FC, SC, ST, LC
Functions & Applications
  • Pigtail + adaptor terminating type ODF patch panel
  • Supports high-performance optical cable grounding unit
  • Can support 12 ST/SC/FC pigtails fusing or 24 LC pigtails
  • 12 optical cable clamp splitter with duplex LC adaptors terminating
  • Integrates optical cable grounding and high voltage protection functions
Dimensions
P/N Capacity Dimension Weight
KCO-ODFU-12 12 cores 485x300x45mm 3.9kg
KCO-ODFU-24 24 cores 485x300x75mm 4.7kg
KCO-ODFU-48 48 cores 485x300x140mm 6.9kg
KCO-ODFU-72 72 cores 485x300x198mm 9.2kg
KCO-ODFU-96 96 cores 485x300x252mm 11kg
KCO-ODFU-144 144 cores 485x300x340mm 14kg
Product Images

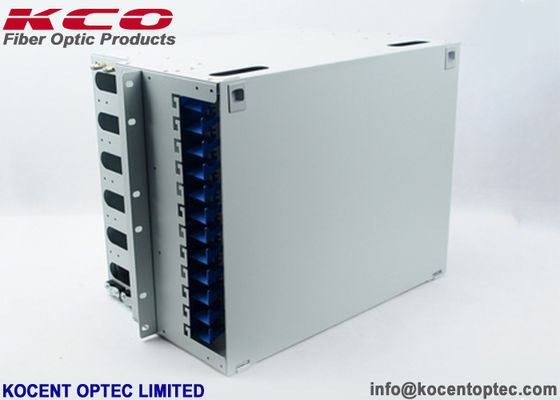

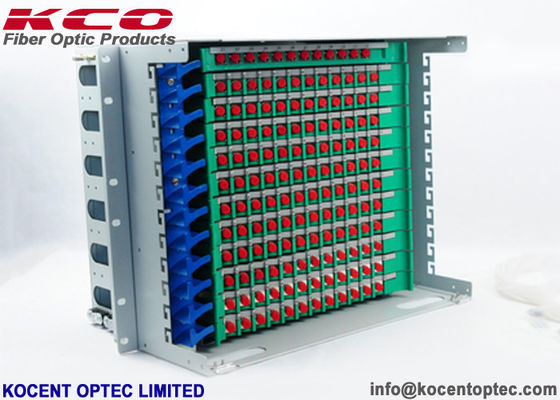

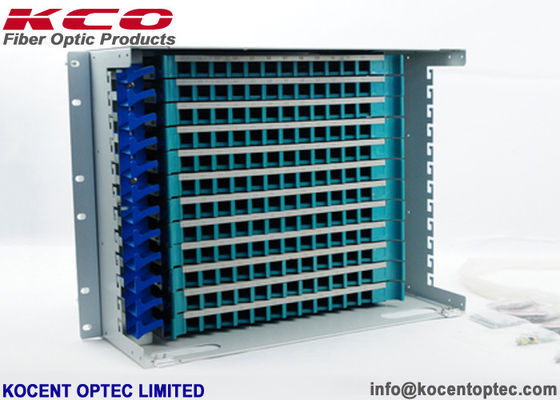

19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 0
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 1
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 2
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 3
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 4
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 5
Operating Conditions
Temperature: -45°C ~ +85°C
Relative humidity: ≤85%(+30°C)
Atmospheric pressure: 70KPa~106KPa
Technical Specifications
Nominal work wavelength: 850nm, 1310nm, 1550nm
Connectors loss: ≤0.2dB
Insert loss: ≤0.2dB
Return loss: ≥50dB(UPC), ≥60dB(APC)
Insulation resistance (between frame and protection grounding): >1000MΩ/500V(DC)
ODF Unit Series
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 6
ODF Cabinet
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 7
19'' 144 Core Fiber Optic Distribution Box with Steel Material for Secure Fiber Protection 8
OEM/ODM Service
We offer custom branding options for cables, packaging, labels, and other components. Contact our sales team for personalized support.
Packing & Shipping
Packing: Standard export packing with carton box, wooden box, or wooden pallet
Shipping options: International express (UPS, TNT, DHL), air freight, or sea freight
Standard export ports: Shenzhen, Hongkong, Ningbo
Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
