19'' Fiber Optic Distribution Box 144 Core ODF Unit / 144fo Patch Panel For Cabinet

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODFU-144
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector SC, FC, ST, LC, E2000, Etc Application 19' Fiber Optic Distribution Frame
Capacity 144 Fibers Type Distribution Unit
Material Steel Thickness 1.0mm
High Light

optical termination box

,

fibre termination box

Leave a Message
Product Description

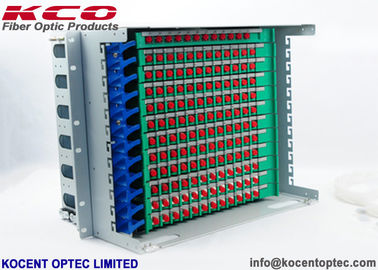

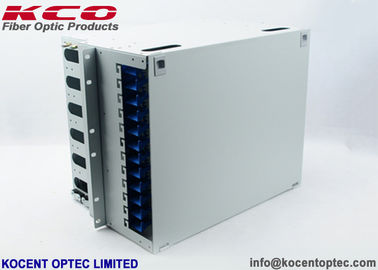

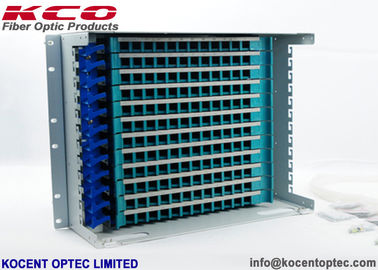

144core ODF Unit / 144fo Fiber Optic Patch Panel / 144fiber 19'' Optical Distribution Box For Cabinet



Description:

- ODF Unit is specially designed for optical fiber communication equipment room.

- It has the function of cable fixation, protecting fiber cable terminating, wiring, distribution and protection of fiber cores and pigtails.
- Metal plate unit box structure, beautiful appearance
- 19"standard installation has good versatility.
- Complete modular design and front operation.

- The unit box integrates fiber fusion, splicing, wiring, distribution, into one every single splice tray can be pulled out separately, satisfying the operation in or out of the box.



Feature:

- The full configuration of it includes an integrated tray, with cable fiber and pigtail fiber fusion protection, fiber connector plug adjustment, and transmission line marking function.
- Supporting accessing optical cable grounding unit, with optical cable introduction fixed protection, optical cable metal and frame insulation, high voltage protective grounding function
- It is especially suitable for the wiring connection between optical cable and optical communication equipment or between optical communication equipment in industry cabinet or communication cabinet;Used in indoor or outdoor watertight environment.

- With cold-roll steel box, splicing unit, distribution unit and panel

- Various panel plate to fit different adapter interface

- Adapters can be installed: FC, SC, ST, LC





Function & application
​- Pigtail + adaptor terminating type ODF patch e Supporting high-performance optical cable grounding unit - panel,can support 12 ST/SC/FC pigtails fusing, 12 optical cable clamp splitter, integrating optical cable grounding ST/SC/FC adaptors terminating or 24 LC pigtails and high voltage protection functions in one fusing +12 duplex LC adaptors terminating.
- Supporting accessing optical cable grounding unit, with optical cable introduction fixed protection, optical cable metal and frame insulation, high voltage protective grounding function

- The full configuration of it includes an integrated tray, with cable fiber and pigtail fiber fusion protection, fiber connector plug adjustment, and transmission line marking function.

- It is especially suitable for the wiring connection between optical cable and optical communication equipment or between optical communication equipment in industry cabinet or communication cabinet;Used in indoor or outdoor watertight environment.



Dimension:

P/N Capacity Dimension Weight
KCO-ODFU-12 12 cores 485x300x45mm 3.9kg
KCO-ODFU-24 24 cores 485x300x75mm 4.7kg
KCO-ODFU-48 48 cores 485x300x140mm 6.9kh
KCO-ODFU-72 72 cores 485x300x198mm 9.2kg
KCO-ODFU-96 96 cores 485x300x252mm 11kg
KCO-ODFU-144 144 cores 485x300x340mm 14kg




Product picutures:













Operating Conditions:
- Temperature: -45°C ~ +85°C
- Relative humidity: 85%(+30°C)
- Atmospheric pressure: 70KPa~106KPa

Qualification:
- Nominal work wave-length: 850nm,1310nm,1550nm
- Connectors loss: 0.2dB
- Insert loss: 0.2dB
- Return loss: >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection grounding): >1000MΩ/500V(DC)



ODF Unit series:
