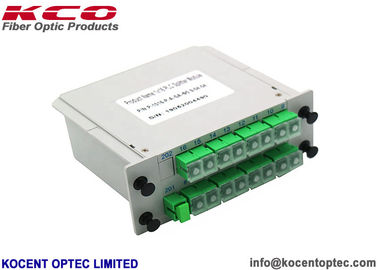

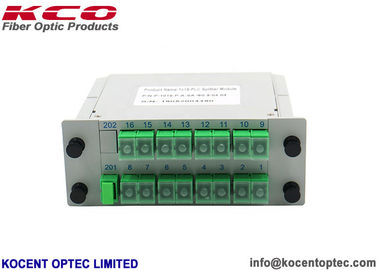

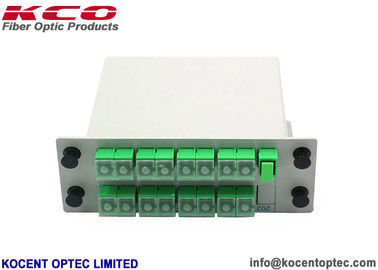

High Reliability 1*16 Fiber Optic Splitter 1x16 LGX Moduler Casette For 19'' Patch Panel

  • High Reliability 1*16 Fiber Optic Splitter 1x16 LGX Moduler Casette For 19'' Patch Panel
  • High Reliability 1*16 Fiber Optic Splitter 1x16 LGX Moduler Casette For 19'' Patch Panel
  • High Reliability 1*16 Fiber Optic Splitter 1x16 LGX Moduler Casette For 19'' Patch Panel
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LGX-1x16-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type LGX Box Length 0.3m
Splitter Type 1*16 1x16 Split Way 1 Way Input & 16 Way Output
Connector SC/APC Cable 0.9mm
P/N KCO-LGX-1x16-SCA MOQ 1pc
High Light

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description



1*16 Fiber Splitter / 1x16 Fiber Optical PLC Splitter LGX Moduler Casette For 19'' Patch Panel



Introduction:

- Planar optical waveguide Splitter (PLC Splitter) is a planar optical waveguide integrated optical device based on planar optical waveguide.

- It can realize the predetermined distribution of light power within the wavelength range of 1260nm ~ 1650nm, which covers the wavelength range of 1310nm, 1490nm and 1550nm used by EPON technology.

- The core raw materials are mainly imported from the mainstream, and the actual performance and reliability are guaranteed.

- 1x16 SplitterPlanar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology.

- The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risks during installation.

- It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployement.

- LGX cassttle module fiber optic plc splitte is also called 1*64 LGX module optical fiber plc splitter, plc fiber optic splitter, plc optical fiber splitter, fiber optical splitter, plc fiber splitter, plc optical splitter.

- It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.

- The insert splitter can be directly installed in the built-in boxes, such as splitter box, fiber optic cable transfer box, ODF frame, etc., which can be used with the guide fiber device.

- Kocent Optec Limited supply full series of fiber optic PLC Splitter such as: mini tube type, ABS Box modular Type, LGX box type, Rackmount type, Wall mount type, ....

- With more than 10 years of experience in passive fiber optic production, and closed of QC process, we promise that 100% of goods are tested and pass tested before shipment.

- Our company's production of the chip packaging optical divider adopts the compact arrangement method, at the same time convenient operation.

- We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications.

- All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirment.



Features:

- Adopt 100% new raw material, ROHS compliance
- Low Insertion loss
- Low PDL Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: from 1260nm to 1650nm
- Wide Operating Temperature: from -40℃ to 85℃​

- Ultra-end insertion loss and associated loss of polarization
- Good spectral uniformity
- Wide wavelength bandwidth
- Wide range of working environment
- High reliability
- Compact Size



Applications:

- FTTX Systems

- G/EPON Networks

- CATV

- Optical Signal Distribution

- Fiber Optic System

- Fiber Optic Test



Product photo:

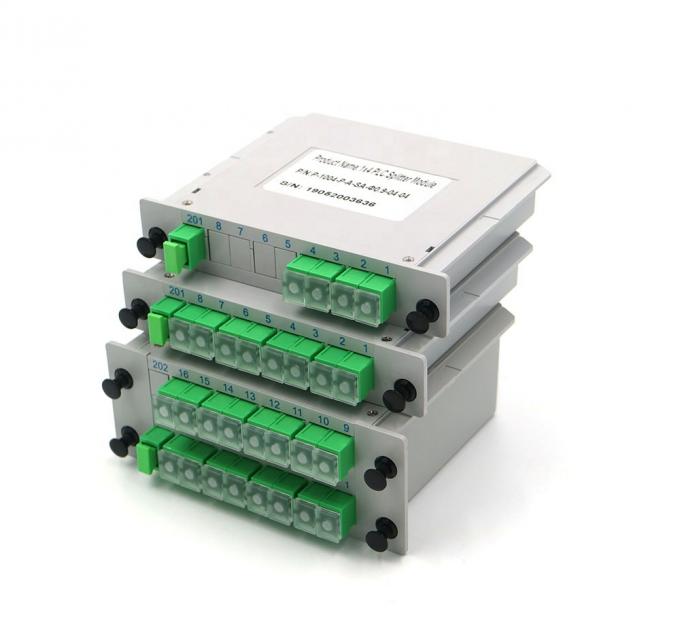

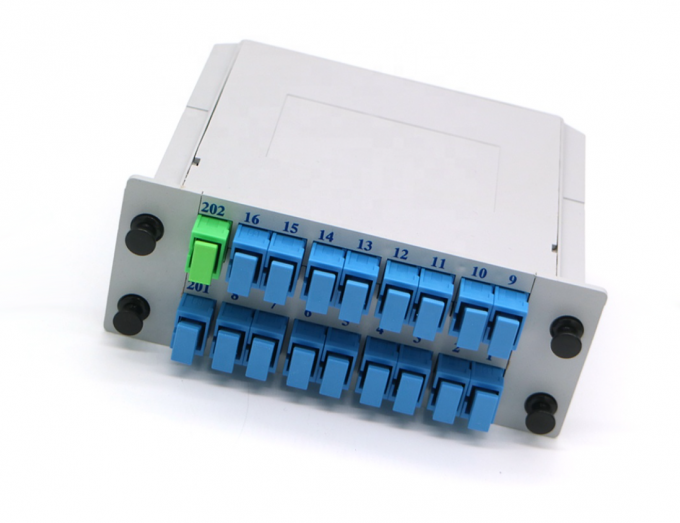

High Reliability 1*16 Fiber Optic Splitter 1x16 LGX Moduler Casette For 19'' Patch Panel 0

High Reliability 1*16 Fiber Optic Splitter 1x16 LGX Moduler Casette For 19'' Patch Panel 1

High Reliability 1*16 Fiber Optic Splitter 1x16 LGX Moduler Casette For 19'' Patch Panel 2





Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1



Relation products:

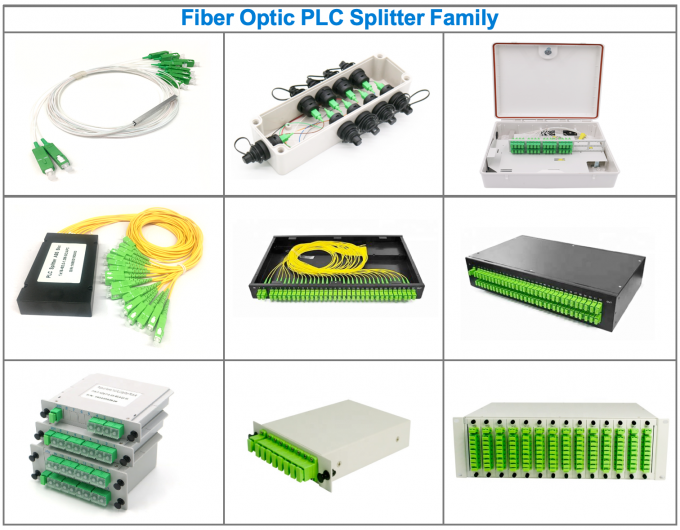

High Reliability 1*16 Fiber Optic Splitter 1x16 LGX Moduler Casette For 19'' Patch Panel 3
