Small Size 1x4 Fiber Optical Splitter Modular SC APC Connector 2.0mm High Reliability

  • Small Size 1x4 Fiber Optical Splitter Modular SC APC Connector 2.0mm High Reliability
  • Small Size 1x4 Fiber Optical Splitter Modular SC APC Connector 2.0mm High Reliability
  • Small Size 1x4 Fiber Optical Splitter Modular SC APC Connector 2.0mm High Reliability
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ABS-1x4-2.0-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type ABS Box Modular Length 1.0m
Splitter Type 1*4 1x4 Split Way 1 Way Input & 4 Way Output
Connector SC/APC P/N KCO-ABS-1x4-2.0-SCA
High Light

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description



1*4 ABS Box PLC Splitter 1x4 Fiber Optical Splitter Modular SC APC Connector 2.0mm



Descriptions:
- The fiber optic splitter is also referred to as optical splitter, which is an integrated waveguide optical power distribution device.
- It plays an important role in passive optical network (EPON, GPON, BPON, FTTX, FTTH and so on) by allowing a single PON interface to be shared among many subscribers.
- To achieve this, it is designed to split an incident light beam into two or more light beams and couple the light beams to the branch distribution as an optical fiber tandem device, which has the function to maximize the performance of network circuits.
- PLC optical splitters reduce insertion loss and deliver high performance.
- They are available as components, in our quick connect cassettes, or in custom modules and rack-mount designs.
- It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.



Introduction:

- Kocent Optec Limited supply full series of fiber optic PLC Splitter such as: mini tube type, ABS Box modular Type, LGX box type, Rackmount type, Wall mount type, ....

- We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications.

- All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirment.

- With more than 10 years of experience in passive fiber optic production, and closed of QC process, we promise that 100% of goods are tested and pass tested before shipment.

- Our company's production of the chip packaging optical divider adopts the compact arrangement method, at the same time convenient operation.


Applications:
- FTTx (FTTB, FTTH, FTTC)
- Passive optical networks (PON)
- Local area networks (LAN)
- CATV systems
- Test equipments


Features:

- Custom and Rugged Packaging Available
- Telcordia GR-1209/1221 Qualified
- Low-Input Polarization Sensitivity
- High-Quality Connector Fan-outs

- Compact Size

- Wide Operating Wavelength: from 1260nm to 1650nm
- Wide Operating Temperature: from -40℃ to 85℃​

- Adopt 100% new raw material, ROHS compliance



Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1



Product photos:

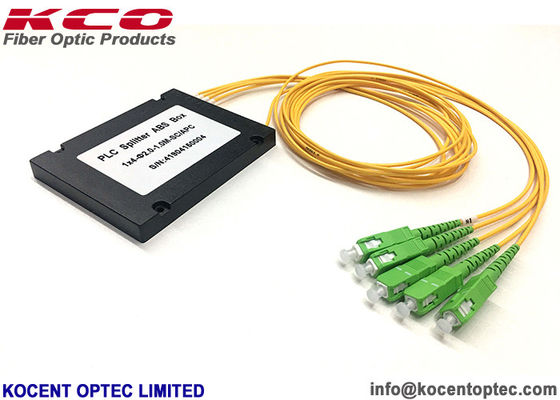

Small Size 1x4 Fiber Optical Splitter Modular SC APC Connector 2.0mm High Reliability 0

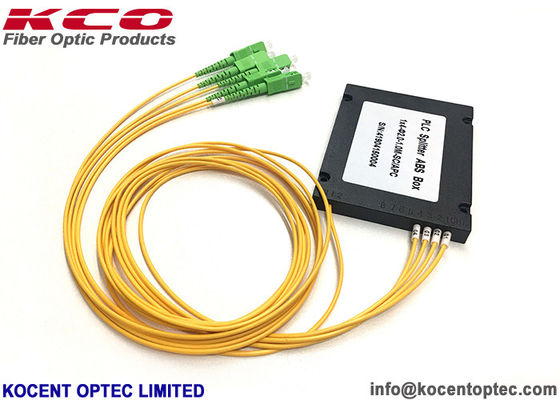

Small Size 1x4 Fiber Optical Splitter Modular SC APC Connector 2.0mm High Reliability 1

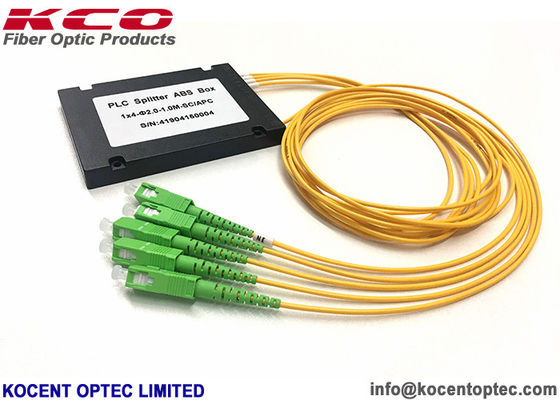

Small Size 1x4 Fiber Optical Splitter Modular SC APC Connector 2.0mm High Reliability 2



Relation products:



Small Size 1x4 Fiber Optical Splitter Modular SC APC Connector 2.0mm High Reliability 3





OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Small Size 1x4 Fiber Optical Splitter Modular SC APC Connector 2.0mm High Reliability 4



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
