2*2 Mini PLC Fiber Optic Splitter SC/APC Connector For FTTH FTTA 0.9mm 1.0m

  • 2*2 Mini PLC Fiber Optic Splitter SC/APC Connector For FTTH FTTA 0.9mm 1.0m
  • 2*2 Mini PLC Fiber Optic Splitter SC/APC Connector For FTTH FTTA 0.9mm 1.0m
  • 2*2 Mini PLC Fiber Optic Splitter SC/APC Connector For FTTH FTTA 0.9mm 1.0m
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-Mini-2*2-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Length 1.0m Splitter Type 2*2 2x2
Connector SC/APC Cable 0.9mm
P/N KCO-Mini-2*2-SCA MOQ 1pc
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description



2*2 Mini PLC Splitter SC/APC Fiber Optical Splitter For FTTH FTTA 0.9mm 1.0m



Descriptions:

- PLC splitter, also called Planar Waveguide Circuit splitter, is used to divide one or two light beams to multiple light beams uniformly or combine multiple light beams to one or two light beams.

- Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

- Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets.

- Fiber PLC splitter provides a low cost light distribution solution with high stability and reliability.

- The blockless splitter features small size, which is an intermediate choice between volume miniaturization and reliable fiber protection. It is suitable for installation in your system design and manufacturing.

- 2x N Planar Light wave Circuit (PLC) Splitters are based on the Plasma Chemical Vapor Deposition (P-CVD) technology and its patented fabrication process for providing stable optical character.



PLC Splitter Construction:



2*2 Mini PLC Fiber Optic Splitter SC/APC Connector For FTTH FTTA 0.9mm 1.0m 0



Features:

- 2x2blockless PLC Splitter, SC/APC connector
- 900µm ITU G.657A1 for fiber input/output
- Low insertion loss
- Low polarization dependent loss (PDL)
- Operating bandwidth: 1260 - 1650nm
- Compact design, suitable for installation in optical equipments
- Wide Operating Temperature: -40 - 85°C, support industry standard applications
- High reliability and stability, Telecordia GR-1221/1209 compliant





Applications:
- It is a passive optical device with many input and output terminals, especially applicable to PON (EPON, GPON, BPON, FTTX, etc.) to connect the MDF (main distribution frame) and the terminal equipment and to branch the optical signal.



Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1



Product photos:

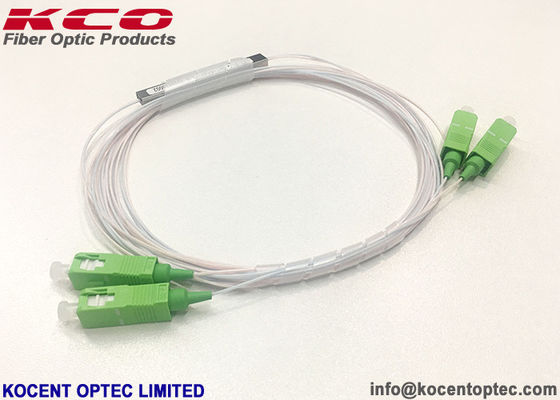

2*2 Mini PLC Fiber Optic Splitter SC/APC Connector For FTTH FTTA 0.9mm 1.0m 1

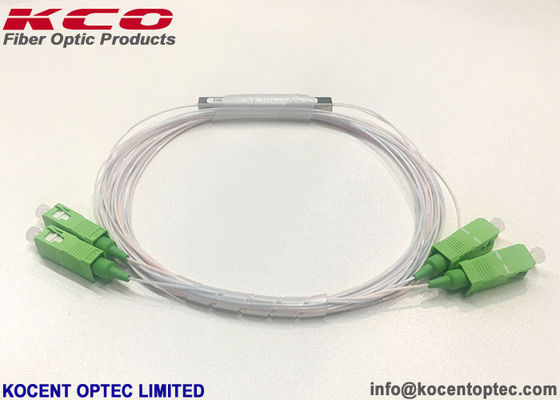

2*2 Mini PLC Fiber Optic Splitter SC/APC Connector For FTTH FTTA 0.9mm 1.0m 2

2*2 Mini PLC Fiber Optic Splitter SC/APC Connector For FTTH FTTA 0.9mm 1.0m 3

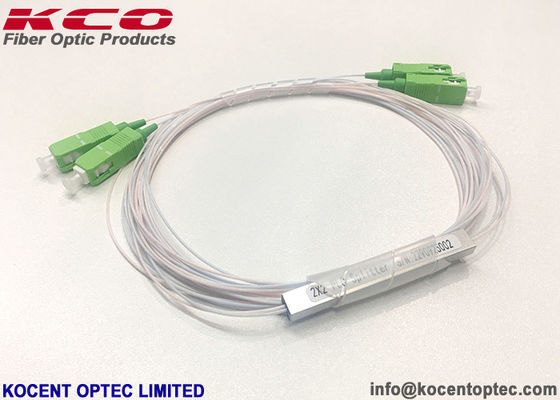

2*2 Mini PLC Fiber Optic Splitter SC/APC Connector For FTTH FTTA 0.9mm 1.0m 4







Relation products:

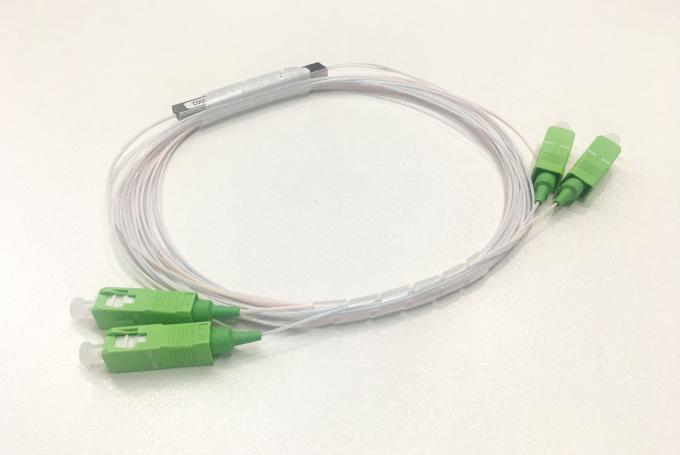

2*2 Mini PLC Fiber Optic Splitter SC/APC Connector For FTTH FTTA 0.9mm 1.0m 5



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



2*2 Mini PLC Fiber Optic Splitter SC/APC Connector For FTTH FTTA 0.9mm 1.0m 6



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
