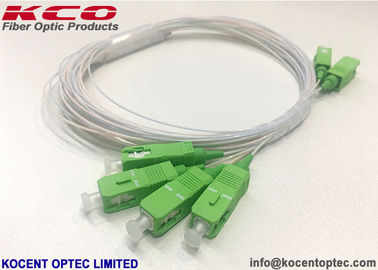

Mini Blockless Tube Type 2x4 PLC Splitter with 0.9mm Cable and 1260-1650nm Wavelength for FTTX Deployment

  • Mini Blockless Tube Type 2x4 PLC Splitter with 0.9mm Cable and 1260-1650nm Wavelength for FTTX Deployment
  • Mini Blockless Tube Type 2x4 PLC Splitter with 0.9mm Cable and 1260-1650nm Wavelength for FTTX Deployment
  • Mini Blockless Tube Type 2x4 PLC Splitter with 0.9mm Cable and 1260-1650nm Wavelength for FTTX Deployment
  • Mini Blockless Tube Type 2x4 PLC Splitter with 0.9mm Cable and 1260-1650nm Wavelength for FTTX Deployment
  • Mini Blockless Tube Type 2x4 PLC Splitter with 0.9mm Cable and 1260-1650nm Wavelength for FTTX Deployment
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-Mini-2*4-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type Mini Blockless Tube Type Length 1.0m, 1.5m, 2.0m
Splitter Type 2*4 2x4 Split Way 2 Way Input & 4 Way Output
Connector SC/APC, LC/APC Cable 0.9mm
P/N KCO-Mini-2*4-SCA MOQ 1pc
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
Mini Tube Optical Fibre PLC Splitter 2:4 2*4 2x4 SC APC UPC
Product Description
2*4 Mini PLC Fiber Optic Splitter SC/APC Optics Fibre Splitters Green Connector 900um 0.9mm
In FTTx and PON architectures, fiber optic splitter is an important component to share the optic network with multiple users. The basic principle of fiber optic splitter is to split one optic light beam into several parts at a certain ratio.
Fiber Optic PLC splitters are characterized as uniform broadband power splitters featuring exceptional uniformity of insertion loss throughout all channels resulting in practical wavelength independency over all transmission range from 1260 to 1650 nm.
Mini Blockless Tube Type 2x4 PLC Splitter with 0.9mm Cable and 1260-1650nm Wavelength for FTTX Deployment 0
Applications
  • Optical Signal Distribution
  • Data Communications
  • Lan and CATV System
  • FTTX Deployment
  • FTTH Network
  • Passive Fiber Optical Networks (PON)
  • Measuring System and Laser System
  • DWDM and CWDM Systems
PLC Splitter Construction
Mini Blockless Tube Type 2x4 PLC Splitter with 0.9mm Cable and 1260-1650nm Wavelength for FTTX Deployment 1
Advantages of PLC Splitter
  • Suitable for multiple operating wavelengths (1260nm – 1650nm); unstinted
  • Equal splitter ratios for all branches
  • Compact configuration; smaller size; small occupation space
  • Good stability across all ratios
  • High quality; low failure rate
Specifications
Fiber length: 1m or custom length
Connector Type: Custom specified
Optical Fiber Type: Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min: 55
Return Loss (dB) Min: 55 (50)
Power Handling (mW): 300
Operating Wavelength (nm): 1260 ~ 1650
Operating Temperature(°C): -40~ +85
Storage Temperature(°C): -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5

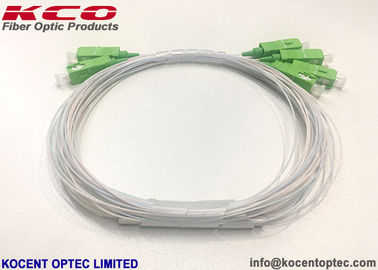

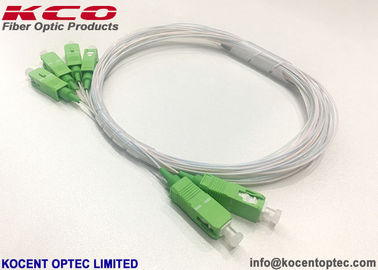

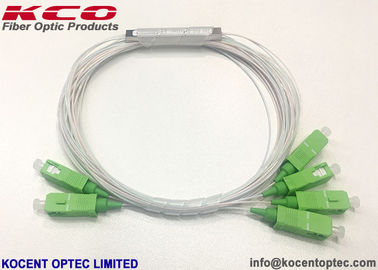

Product Photos
Mini Blockless Tube Type 2x4 PLC Splitter with 0.9mm Cable and 1260-1650nm Wavelength for FTTX Deployment 2 Mini Blockless Tube Type 2x4 PLC Splitter with 0.9mm Cable and 1260-1650nm Wavelength for FTTX Deployment 3 Mini Blockless Tube Type 2x4 PLC Splitter with 0.9mm Cable and 1260-1650nm Wavelength for FTTX Deployment 4
OEM/ODM Service
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.
Mini Blockless Tube Type 2x4 PLC Splitter with 0.9mm Cable and 1260-1650nm Wavelength for FTTX Deployment 5
Packing
  • According to Standard Export Packing
  • Carton box, wooden box, wooden pallet
Shipping
  • International express such as UPS, TNT, DHL, etc
  • International air: CA, AA, EA, etc
  • By sea
  • Standard export sea port: Shenzhen, Hongkong, Ningbo
  • Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
