FTTH 2x16 Fiber Optic Cable Splitter 2*16 Low PDL With SC/APC LC/APC Connector

  • FTTH 2x16 Fiber Optic Cable Splitter 2*16 Low PDL With SC/APC LC/APC Connector
  • FTTH 2x16 Fiber Optic Cable Splitter 2*16 Low PDL With SC/APC LC/APC Connector
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-Mini-2*16-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Length 1.0m, 1.5m, 2.0m Split Way 2 Way Input & 16 Way Output
Connector SC/APC, LC/APC Cable 0.9mm
P/N KCO-Mini-2*16-SCA MOQ 1pc
High Light

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description



FTTH 2x16 Optical Fiber Mini PLC Splitter SC/APC LC/APC 2*16 Fibre Optics Splitter SCA LCA



Descriptions:

- PLC stands for Planar Lightwave Circuit. PLC splitters are used to distribute or combine optical signals. It is based on planar lightwave circuit technology and provides a low cost light distribution solution with small form factor and high reliability.

- 1xN PLC Splitter features guaranteed performance specifications and high reliability that surpass Telcordia requirements and is tailored for different applications and markets.

- 2xN Planar Light wave Circuit (PLC) Splitters are based on the Plasma Chemical Vapor Deposition (P-CVD) technology and its patented fabrication process for providing stable optical character.

- PLC Splitters provide a cost effective and space saving product suitable to the ever changing networking requirements. With it's compact size, these splitters can be utilized in in-ground and aerial pedestals as well as rack mount systems.

- Installation is simple using a variety of connector types or fusion splicing.

- For different applications, PLC splitters can be further categorized into different types including bare PLC splitters, blockless PLC splitters, ABS PLC splitters, LGX box PLC splitters, mini plug-in type PLC splitters, tray type PLC splitters and 1U rack mount PLC splitters.


Applications:
  • - FTTX Systems
  • - PON Networks
  • - CATV Links
  • - Optical Signal Distribution
  • - Compliance:
    •       - Telcordia GR-1209-CORE
    •       - Telcordia GR-1221-CORE
    •       - RoHS

Features:
  • - Low Insertion Loss
  • - Low PDL (Polarization Dependent Loss)
  • - Compact Design
  • - High Reliability and Stability
  • - Good channel-to-channel uniformity
  • - Wide Operating Wavelength:
    From 1260nm to 1650nm
  • - Wide Operating Temperature:
    From -40°C to 85°C



Product photos:

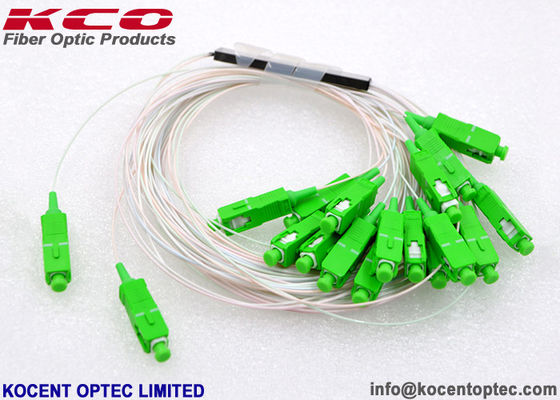

FTTH 2x16 Fiber Optic Cable Splitter 2*16 Low PDL With SC/APC LC/APC Connector 0

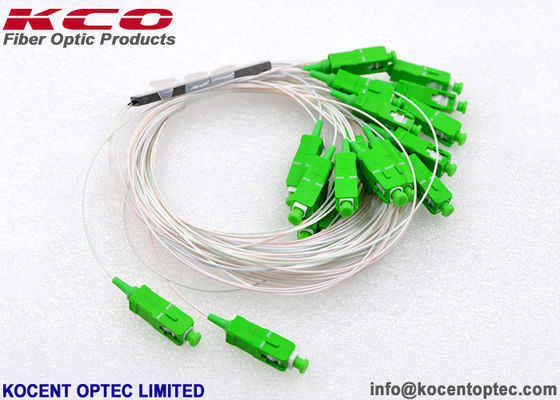

FTTH 2x16 Fiber Optic Cable Splitter 2*16 Low PDL With SC/APC LC/APC Connector 1



Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



FTTH 2x16 Fiber Optic Cable Splitter 2*16 Low PDL With SC/APC LC/APC Connector 2



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
