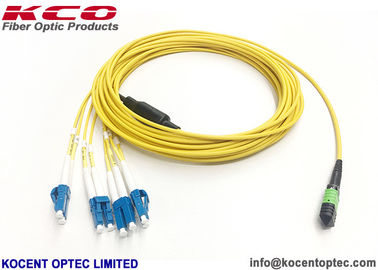

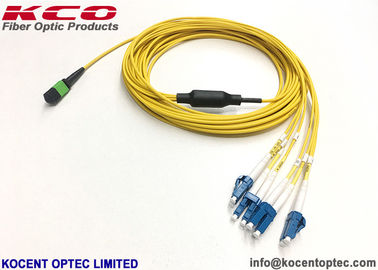

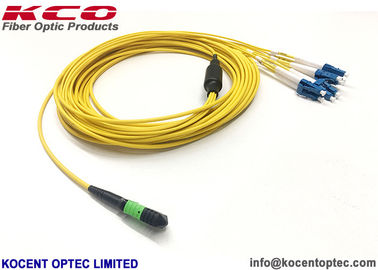

MPO/APC - LC/UPC 8fo Fiber Optic Patch Cord SM G657A LSZH Cover Customized

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MPO/F-LC/UPC-G657A-xm-LSZH
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Fiber Mode Single Mode & Multi Mode Cover LSZH
Insertion Loss 0.35dB Connector MPO/APC
Fiber SM Length 1, 3, 5, 7, 10, 15, 20, 40...
Fiber Count 8fibers Material PVC/LSZH,LSZH Jacket
High Light

qsfp breakout cable


breakout fiber optic cable

Leave a Message
Product Description


MPO/APC - LC/UPC 8fo Fiber Optic Patch Cord SM G657A 3.0mm LSZH Standard Insertion Loss


Quick Details:

- Name: MPO-LC Single Mode 8 Core Optical Fiber Patch Cord

- Ferrule End-face: PC, UPC, APC

- Fiber type: OS1, OS2, OM1, OM2, OM3, OM4, OM5

- Cable core: 8core, 12core, 24core, 48core, 72core, 96cores, 144cores

- Cable Type: Flat, Round



- MTP and MPO trunk cable reliable high-density interconnections for data communications networks.

- MTP and MPO can be 8 to 144 fibers, in round or flat ribbon.

- Support method A, B, C and option make and female for MTP and MPO connectors.

- We provide complete solution of high-density MTP and MPO multi fiber connectors products for high-speed broadband and data networks.

- MTP and MPO trunk cable optimizes cable routing to guarantee efficient use of pathway space and reduce installation time and cost.

- The single-mode and multi-mode by low loss for MTP and MPO connectors deliver the performance and reliabilities.

- MTP and MPO maximize the capacity in data center, increasing fiber density on fiber shelves and also improving and simplifying fiber routing.

- MTP and MPO can be 8 to 144 fibers, further assemblies, fan-out length and cable length available on request.

- Kocent Optec Limited is one of leading company in developing and manufacturing advanced fiber optic products, mainly offer CPRI waterproof jumper, MPO/MTP patch cord, standard fiber optic patch cord, fast connector, PLC Splitter, fiber optic box, and cable.

- We provide OEM/ODM service with all type length of MPO/MTP patch cable.

- Our MPO/MTP patch cable are available in Single mode and Multimode ( OM1, OM2, OM3, OM4, and OM5).

- Connector can be MPO/MTP and other type of connector such as LC, FC, ST, SC, E2000, MU, DIN, MTRJ, ...



- Single mode and Multimode (Flat/Round) available
- High fiber density (maximum 24 fibers)
- Fiber in single connector: 4, 8, 12 24
- Insert/Pull latching connector
- High reflection loss with APC
- Small Form Factor, 12 Fiber or 24 Fiber push/pull optical connectors.




- Metro,

- Test Equipment,

- Premise installations,

- Active device termination,

- Telecommunication networks,

- Local Area Networks(LANs),

- Data Processing networks,

- Wide Area Networks(WANs),





Relation Products:


MPO/APC - LC/UPC 8fo Fiber Optic Patch Cord SM G657A LSZH Cover Customized 0


Single Mode Single Mode Multi Mode
(APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Maximum Insertion Loss Elite Standard Elite Standard Elite Standard
Low Loss Low Loss Low Loss
≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310nm 1310nm 1310nm


Polarity type:

MPO/APC - LC/UPC 8fo Fiber Optic Patch Cord SM G657A LSZH Cover Customized 1

OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

MPO/APC - LC/UPC 8fo Fiber Optic Patch Cord SM G657A LSZH Cover Customized 2

According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
