1:8 Modular Type Fiber Optical PLC Splitter with 2.0mm Cable and 1.5m Length for FTTX Deployment

  • 1:8 Modular Type Fiber Optical PLC Splitter with 2.0mm Cable and 1.5m Length for FTTX Deployment
  • 1:8 Modular Type Fiber Optical PLC Splitter with 2.0mm Cable and 1.5m Length for FTTX Deployment
  • 1:8 Modular Type Fiber Optical PLC Splitter with 2.0mm Cable and 1.5m Length for FTTX Deployment
  • 1:8 Modular Type Fiber Optical PLC Splitter with 2.0mm Cable and 1.5m Length for FTTX Deployment
  • 1:8 Modular Type Fiber Optical PLC Splitter with 2.0mm Cable and 1.5m Length for FTTX Deployment
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ABS-1x8-2.0-1.5M-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type ABS Box Modular Length 1.0m
Splitter Type 1*16 1x16 Connector SC/APC
Cable 0.9mm/ 2.0mm/ 3.0mm P/N KCO-ABS-1x8-2.0-1.5M-SCA
Highlight

SC APC Optical Fiber Splitter

,

1x8 Passive PLC Splitter
Leave a Message
Product Description
1:8 Modular Type SC/APC 2.0mm 1.5m ABS Box 1x8 1*8 Fiber Optical PLC Splitter
Product Description

1*8 ABS Box Modular Optical PLC Splitter SC/APC 2.0mm 1.5m With Testing Report

PLC splitter, also called Planar Waveguide Circuit splitter, is used to divide one or two light beams to multiple light beams uniformly or combine multiple light beams to one or two light beams. It is a passive optical device with many input and output terminals, especially applicable to PON (EPON, GPON, BPON, FTTX, etc.) to connect the MDF (main distribution frame) and the terminal equipment and to branch the optical signal.

Fiber PLC splitter provides a low cost light distribution solution with high stability and reliability. Kocent Optec Limited supplies all types of optical PLC splitters.

Key Features
  • FTTX Deployment
  • FTTH Network
  • LAN
  • CATV System
  • Optical Signal Distribution
  • Passive Optical Network (PON)
  • Measuring System and Laser System
  • DWDM and CWDM System
  • Data Communications
Applications
  • FTTx (FTTB, FTTH, FTTC)
  • Passive optical networks (PON)
  • CATV systems
  • Local area networks (LAN)
  • Test equipment
Technical Specifications
Parameter Value
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Performance Specifications
Port Configuration Insertion Loss(dB) Typical Insertion Loss (dB) Max Loss Uniformity (dB) PDL(dB) Wavelength Dependent Loss(dB) Temp. Dependent Loss (-40~85°C) (dB)
1x2 3.6 4.0 0.6 0.2 0.3 0.4
1x4 7.1 7.3 0.6 0.2 0.3 0.4
1x8 10.2 10.5 0.8 0.2 0.3 0.4
1x16 13.5 13.7 1.2 0.25 0.5 0.5
1x32 16.5 16.9 1.5 0.3 0.5 0.5
1x64 20.5 21.0 2 0.35 0.5 0.5
Product Images

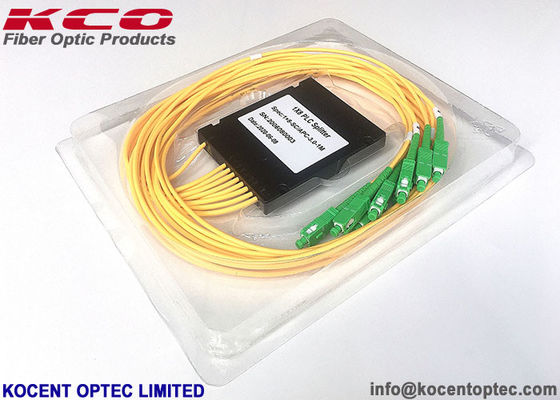

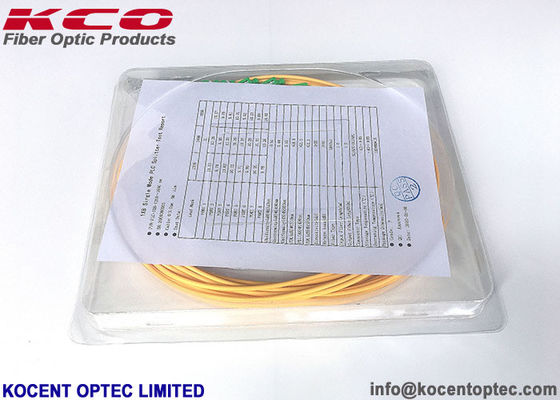

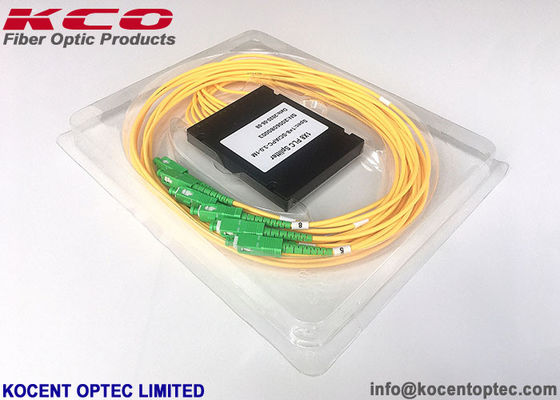

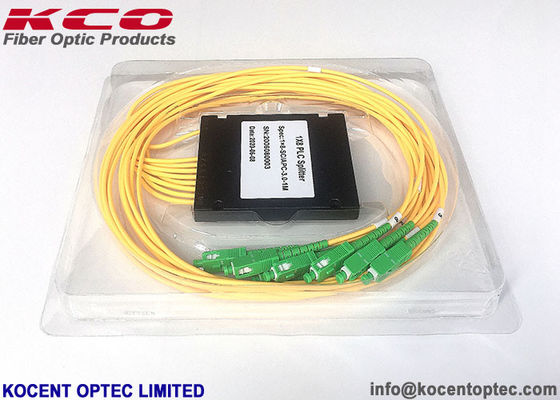

1:8 Modular Type Fiber Optical PLC Splitter with 2.0mm Cable and 1.5m Length for FTTX Deployment 0
1:8 Modular Type Fiber Optical PLC Splitter with 2.0mm Cable and 1.5m Length for FTTX Deployment 1
1:8 Modular Type Fiber Optical PLC Splitter with 2.0mm Cable and 1.5m Length for FTTX Deployment 2
1:8 Modular Type Fiber Optical PLC Splitter with 2.0mm Cable and 1.5m Length for FTTX Deployment 3
Packing Information
1:8 Modular Type Fiber Optical PLC Splitter with 2.0mm Cable and 1.5m Length for FTTX Deployment 4
  • According to Standard Export Packing
  • Carton box, wooden box, wooden pallet
OEM/ODM Service

We offer custom branding services for your products including cable, package bag, label or any other location. Please contact our sales team for support.

1:8 Modular Type Fiber Optical PLC Splitter with 2.0mm Cable and 1.5m Length for FTTX Deployment 5
Shipping Options
  • International express: UPS, TNT, DHL, etc
  • International air: CA, AA, EA, etc
  • By sea
  • Standard export sea ports: Shenzhen, Hongkong, Ningbo
  • Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
