16 Port Capacity Outdoor IP65 Fiber Optic Terminal Box with 1x8 Splitter for FTTH Applications

  • 16 Port Capacity Outdoor IP65 Fiber Optic Terminal Box with 1x8 Splitter for FTTH Applications
  • 16 Port Capacity Outdoor IP65 Fiber Optic Terminal Box with 1x8 Splitter for FTTH Applications
  • 16 Port Capacity Outdoor IP65 Fiber Optic Terminal Box with 1x8 Splitter for FTTH Applications
  • 16 Port Capacity Outdoor IP65 Fiber Optic Terminal Box with 1x8 Splitter for FTTH Applications
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-TK-208
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS, ABS+PC P/N KCO-TK-208
Color Grey/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor IP65 Capacity 16 Port
Splitter 1*8 Adaptre SC/UPC
Highlight

ABS Fiber Optic Terminal Box

,

Telkom Fiber Optic Distribution Box
Leave a Message
Product Description
FTTH ABS 8fo 16fo Telkom Fiber Optic Terminal Box
Indonesia Telecom ODP OTD FDP Fiber Distribution Point Pole-mount Terminal Box 16fo SCUPC designed for outdoor applications with IP65 waterproof standard.
Key Features
  • Special design for outdoor applications with IP65 waterproof standard
  • Connects feeder/distribution cable to subscriber's drop cable using PLC Splitter in FTTx networks
  • 2 input ports for outdoor cable and 16 output ports for FTTH drop cable
  • Pole or wall mountable design
  • Supports up to 16 FTTH drops
  • Accommodates two 1×8 splitters or one 1×16 splitter
  • UV resistant and rain resistant construction
  • 16 adapter ports compatible with SC or LC non-flange adapters
Applications
  • PON networks and FTTX systems
  • Telecom projects and CATV networks
  • Fiber optic termination for indoor/outdoor applications
  • Data communications and telecommunication networks
  • FTTD (Fiber To The Desk) interfaces
Operating Conditions
Temperature range: -45°C to +85°C
Relative humidity: ≤85% at +30°C
Atmospheric pressure: 70KPa to 106KPa
Technical Specifications
Item KCO-TK-208
Dimension 345×300×95mm
Net Weight 1.8kg
Splice tray 1 piece
Adapter ports 16 port
Splitter Mini Tube PLC Splitter 1×8
Maximum splitters 2 pieces
Color Grey
Working Temperature -25°C to 60°C (5 to 95% relative humidity)
Performance Qualifications
Connectors loss: ≤0.2dB
Insert loss: ≤0.2dB
Return loss: ≥50dB (UPC), ≥60dB (APC)
Nominal work wavelength: 850nm, 1310nm, 1550nm
Insulation resistance: >1000MΩ/500V(DC)
Product Images

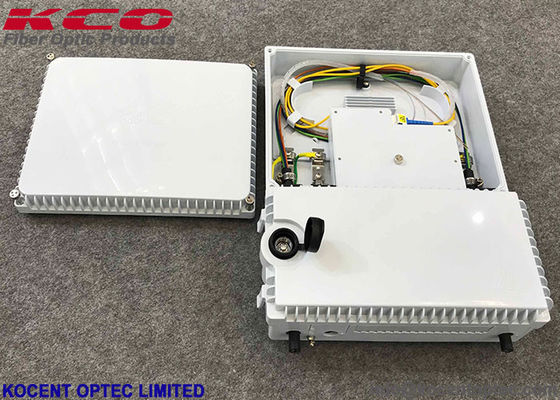

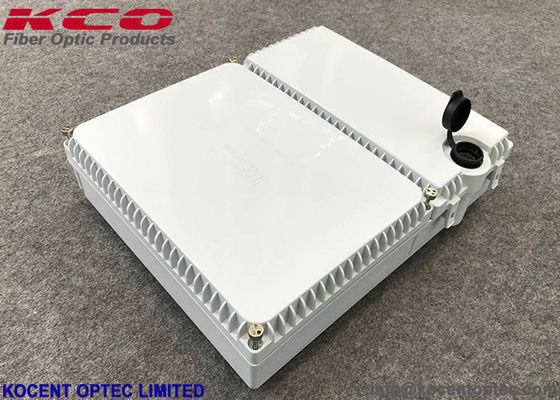

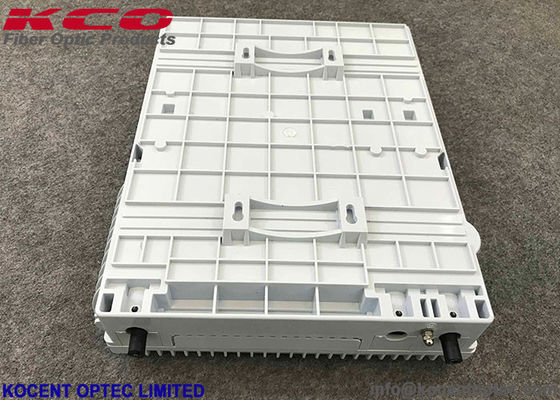

16 Port Capacity Outdoor IP65 Fiber Optic Terminal Box with 1x8 Splitter for FTTH Applications 0 16 Port Capacity Outdoor IP65 Fiber Optic Terminal Box with 1x8 Splitter for FTTH Applications 1 16 Port Capacity Outdoor IP65 Fiber Optic Terminal Box with 1x8 Splitter for FTTH Applications 2
OEM/ODM Services
Custom branding available for cables, packaging, labels, or any visible surface. Our OEM and ODM services can accommodate your specific requirements.
Packing & Shipping
Standard export packing options include carton boxes, wooden boxes, and wooden pallets.

Shipping methods available:
  • International express (UPS, TNT, DHL)
  • International air freight (CA, AA, EA)
  • Sea freight (COSCO, HUYNDAI)
Standard shipping ports: Shenzhen, Hongkong, Ningbo
