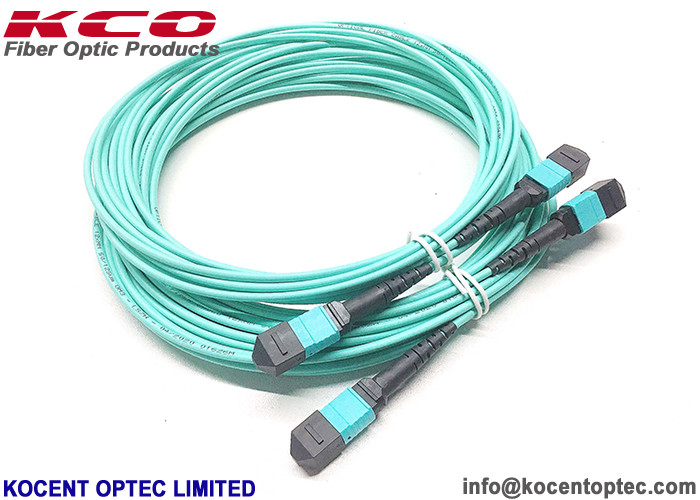

12fo 24fo MM OM3 OM4 50/125 MPO MTP Optical Fibre Patch Cable

  • 12fo 24fo MM OM3 OM4 50/125 MPO MTP Optical Fibre Patch Cable
  • 12fo 24fo MM OM3 OM4 50/125 MPO MTP Optical Fibre Patch Cable
  • 12fo 24fo MM OM3 OM4 50/125 MPO MTP Optical Fibre Patch Cable
  • 12fo 24fo MM OM3 OM4 50/125 MPO MTP Optical Fibre Patch Cable
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MPOF-MPOF-OM3-150-12fo-xxM
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector MPO Fiber MM, OM1, OM2, OM3, OM4, OM5
Cover PVC, LSZH Insertion Loss 0.35dB
Return Loss 55dB Diameter 2.0mm, 3.0mm
Length 1, 3, 5, 7, 10, 15, 20, ... Core 50/125
Fiber Count 4fibers, 8fibers, 12 Fibers, 24 Fibers Color Aqua, Pink, Violet, Customized
Highlight

OM4 Optical Fibre Patch Cable

,

96fiber Optical Fibre Patch Cable

,

48fiber MPO MTP Patch Cable
Leave a Message
Product Description



4fo 8fo 12fo 24fo Multimode OM3-300 Elite IL MPO MTP Female Optical Patch Cable 3m 5m



Descriptions:

- MPO connector is a connector for ribbon cables with at least 8 fibers, which is designed to provide multi-fiber connectivity in one connector to support high bandwidth and high-density cabling system applications. It is compliant with the IEC 61754-7 standard and the U.S. TIA-604-5 Standard.

- Industry standards call out three different polarity methods for MPOs—Method A, Method B and Method C. And each method uses different types of MPO cables.

- The MPO connector relies on the pins and holes to align the ferrules for the entire row(s) of fibers between the pins. As shown in the drawing below, the MPO connector can have 1 to 6 rows of 12 fibers each, although only two versions, 12 or 24 fibers, have gained significant market acceptance.

- 24-fiber MTP/MPO cable is commonly used to establish 100GBASE-SR10 links between CFP to CFP transceivers. It allows the use of the ratified 100GBASE-SR10 20-fiber technology today, maximizing the infrastructure investment in the event of 4×25 Gb/s ratification.

- OM4 fiber is designed to enhance the system cost benefits enabled by 850nm VCSELs for existing 1 Gb/s and 10 Gb/s applications as well as future 40 Gb/s and 100 Gb/s systems.

- OM4 fiber supports Ethernet, Fibre Channel, and OIF applications, allowing extended reach upwards of 550 meters at 10 Gb/s for ultra long building backbones and medium length campus backbones.



12fo 24fo MM OM3 OM4 50/125 MPO MTP Optical Fibre Patch Cable 0



Application

- Metro

- Bank Data center

- Communication center rooms

- Builing communication center
- FTTH (Fiber to The Home)

- FTTA (Fiber to the attena)
- LAN (Local Area Network)
- Fiber optic testing
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment

- Defense combat readiness



Features:

- High density cable

- Optimized performance

- Available in Elite insertion loss and standarad insertion loss.

- Ulitize MPO/MTP connectors

- With 8-fibers, 12-fiber, 16-fiber and 24-fiber MPO/MTO connector standard

- Available in OS1/2, OM1, OM2, OM3 and OM4, OM5

- Telcordia’s GR-326-Core, IEC Standard
- Green Production, RoHS Standard

- Interface polished type has PC, UPC and APC

- Support use in attaching directly to 40/100G transceivers

- 100% factory tested, with test results included for each assembly



MPO MTP Polarity:



12fo 24fo MM OM3 OM4 50/125 MPO MTP Optical Fibre Patch Cable 1





Product photo:



12fo 24fo MM OM3 OM4 50/125 MPO MTP Optical Fibre Patch Cable 2

12fo 24fo MM OM3 OM4 50/125 MPO MTP Optical Fibre Patch Cable 3

12fo 24fo MM OM3 OM4 50/125 MPO MTP Optical Fibre Patch Cable 4



Specification:

Type		 Single Mode Single Mode Multi Mode
(APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Maximum Insertion Loss Elite Standard Elite Standard Elite Standard
Low Loss Low Loss Low Loss
≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310nm 1310nm 1310nm



Relation products:



12fo 24fo MM OM3 OM4 50/125 MPO MTP Optical Fibre Patch Cable 5



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

12fo 24fo MM OM3 OM4 50/125 MPO MTP Optical Fibre Patch Cable 6



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
