OD0.9mm LC UPC Optical Fiber Connector FTTH Field Installable

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-OFC-LCA-0.9
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-OFC-LCA-0.9 Color Green
Insertion Loss 0.5dB Return Loss 50dB
3D Pass Length 35mm
Polishing Type APC Conner 8 Degree
Highlight

LC UPC Optical Fiber Connector

,

OD0.9mm Optical Fiber Connector

,

FTTH Fiber Optic Cable Connector

Leave a Message
Product Description



FTTH 0.9mm Optical Fiber LC/UPC Fast Connector



Description:

- The LC/APC fast connector are factory pre-polished, field-installable connectors that completely eliminate the need for hand
polishing in the field.

- Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical
fibers.



Product advantage
- The 1 ferrule without on-site grinding, can be directly connected with 0.9mm indoor fiber optic cable
- Can achieve high optical performance, the average insertion loss of less than -0.50dB, the return loss is more than 45dB.
- Products in the use of the process is not affected by the environment, the basic optical properties no change, no failure rate, long service life, reduce the cost of late maintenance.
- Tail specific optical fiber "micro bend" structure can be when the tail cable is subjected to violent tension to protect the effective.
- Splice inside the connector on the protection of the heat shrinkable tube, effective to splice protection, ensuring product safety performance and service life
- The rear end of the special stepped up structure, the product of tensile strength is greater than 60N.
- The operation is simple and quick, the operator needs no professional skills.



Applications:

- Fiber to the building (FTTB)

- Fiber To The Office (FTTO)

- Fiber to The Home (FTTH)

- Cable Television (CATV)

- Metro

- Test Equipment

- Asynchronous Transmission Mode (ATM)

- Passive optical networks (PON)

- Local Area Networks (LAN)



Features

- No special assembly tool

- Can be reconnected in the field

- No epoxy or polishing required

- Compatible with both 3mm drop cable and 3x2mm flat cable

- Fast and easy installation.
- Field-termination connector with no epoxy or polishing required
- No matching gel enables low reflection and high reliability
- Splicing point is inside of the connector. No additional splicing work required
- Easily assembled with one-touch, push-pull system
- Used for φ3.0mm,φ2.0mm cable and 3x2mm drop cable etc
- The fusion splice position can be protected by the heat shrinkable tube inside, not easy broken
- 100% qualified, prolong use life, reduce the Maintenance cost
- The operator can confirm if the splicing is successful by the monitor of fusion splicing machine, to make it have more stability





Technical Data:

Item KCO-OFC-LCA-0.9
Suitable Cable OD 0.9mm
Optical fiber diameter 125μm
Tight buffer diameter (μm) 900μm
Fiber mode Single & multi mode
Operation time About 120s ( no fiber cut )
Insert loss ≤ 0.5dB(1310nm & 1550nm)
Return loss > 40dB
Tensile strength >50 N
Using temperature -40~+75°C
On-line tensile strength (20 N) IL ≤ 0.2dB
Mechanical durability (500 times) IL ≤ 0.2dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times) IL ≤ 0.2dB

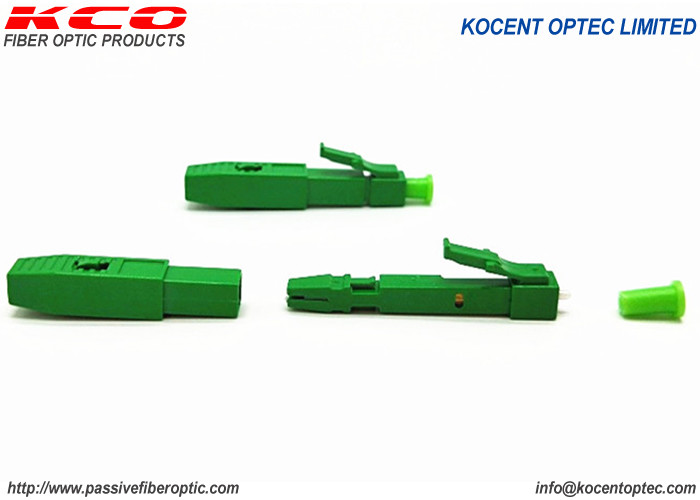

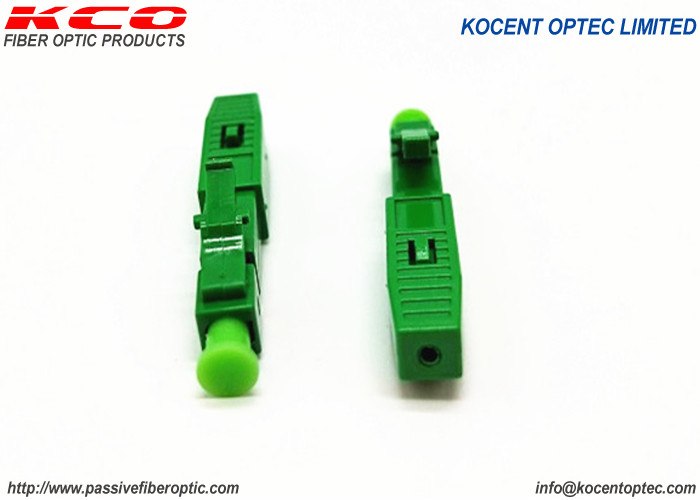

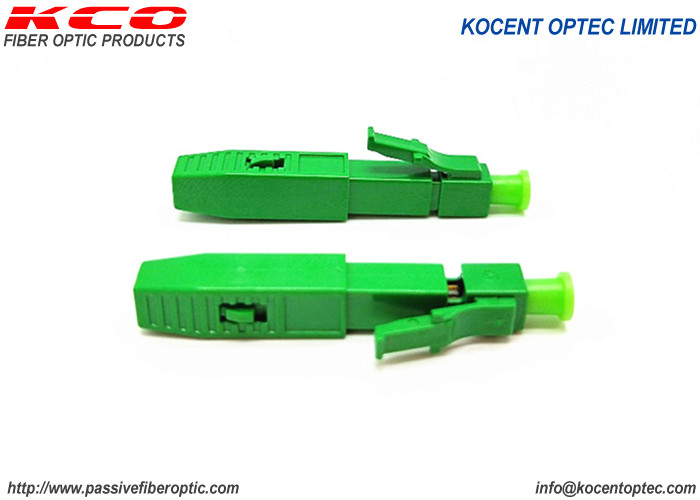

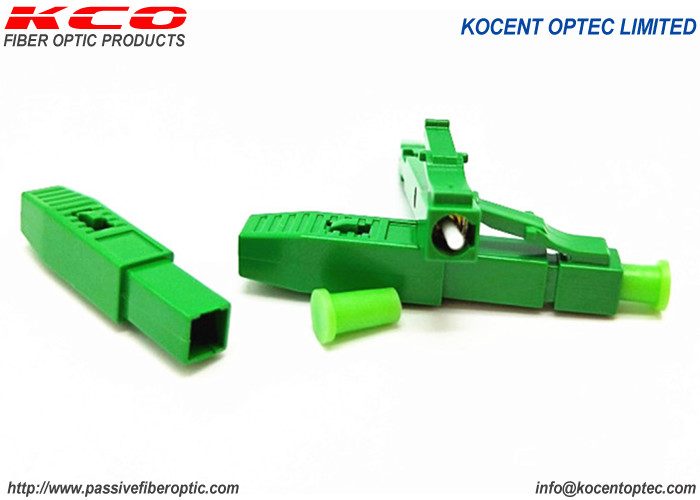

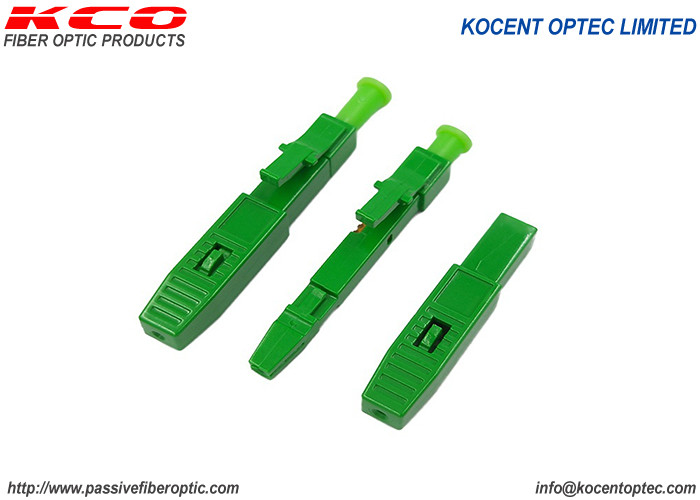

Products photo:



OD0.9mm LC UPC Optical Fiber Connector FTTH Field Installable 0







Delivery Time:

- Material Preparation Time: 3 days (or inventory)

- Production & Assembly Time 7 days

- Testing & Packaging Time: 2 days

- Total Delivery Time: 12 days in 50,000pcs for safe delivery lead time.

- The faster delivery could be negotiable.



Factory photo:

Kocent Optec Limited is one of leader supplier of fiber optic fast connector in China.
Most of our fast connector meet Telecom requirement as Viettel, VNPT, ...

Logo print is free for quantity more than 10k (pcs).

Logo Lettering is free for quantity more than 100k (pcs)

Contact with our sales team for your OEM and ODM order.

OD0.9mm LC UPC Optical Fiber Connector FTTH Field Installable 1



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
