Payment & Shipping Terms:
|Insertion Loss:||0.5dB||Return Loss:||50dB|
|Polishing Type:||APC||Conner:||8 Degree|
ONU Optical Fiber Connector,
SC APC Optical Fiber Connector,
FTTH Fiber Optic Sc Connector

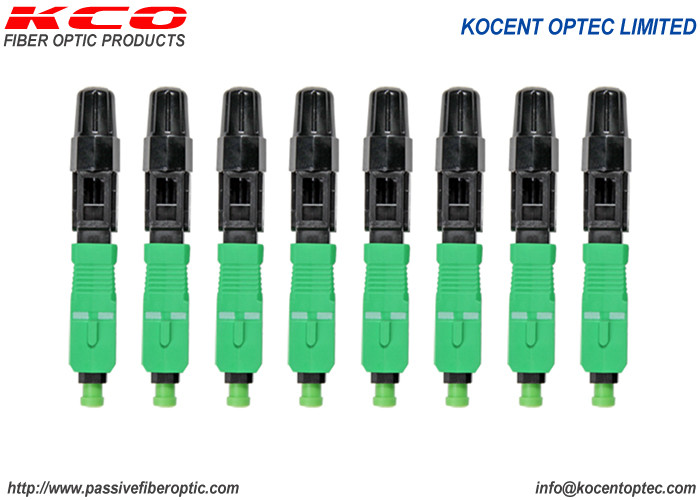

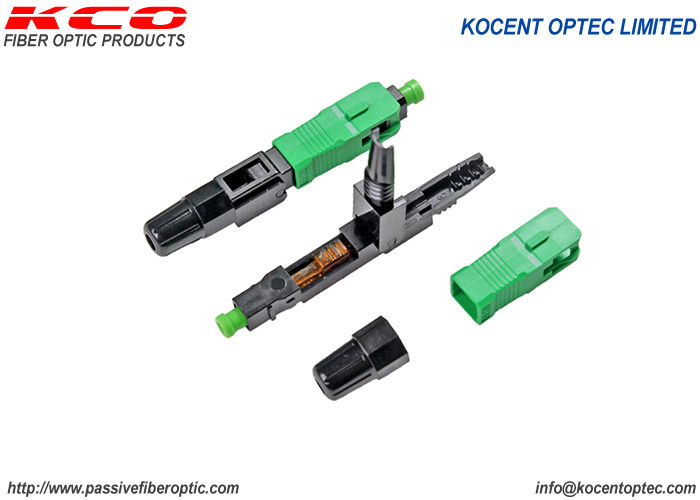

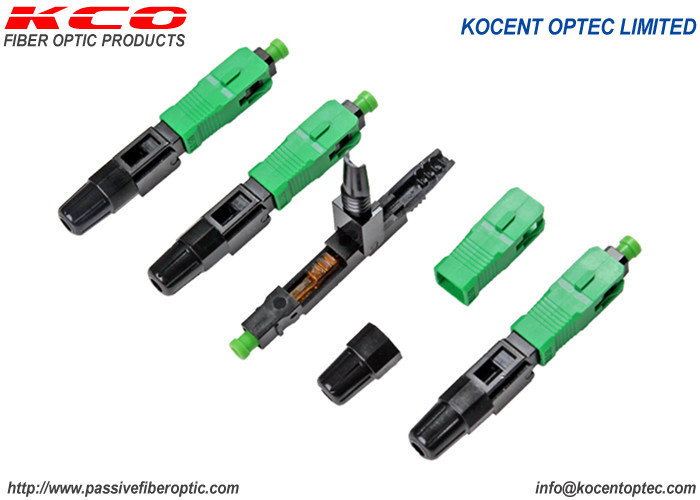

KCO-SCA-6001 FTTH ONU 60mm Green Optical Fiber SC/APC Fast Connector
- The SC/APC fast connector is the most popular type of fast connector in the market, which features a pre-polished ferrule that couples to the fiber being terminated by precision mechanical alignment, insuring low loss with a proprietary gel.
- This SC/APC Fast Connector offers convenience in assembling and strong stability.
- It allows simple optical core connection without any additional practices, or adhesives.
- It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole.
- It reconnects the cables and reduces the connection defect rate by an installer error in the field.
- It is using large in Telecom FTTH.
- Test Equipment
- Fiber to the building (FTTB)
- Fiber To The Office (FTTO)
- Fiber to The Home (FTTH)
- Cable Television (CATV)
- Asynchronous Transmission Mode (ATM)
- Passive optical networks (PON)
- Local Area Networks (LAN)
- No special assembly tool
- Can be reconnected in the field
- No epoxy or polishing required
- Compatible with both 3mm drop cable and 3x2mm flat cable
- Fast and easy installation.
- Field-termination connector with no epoxy or polishing required
- No matching gel enables low reflection and high reliability
- Splicing point is inside of the connector. No additional splicing work required
- Easily assembled with one-touch, push-pull system
- Used for φ3.0mm,φ2.0mm cable and 3x2mm drop cable etc
- The fusion splice position can be protected by the heat shrinkable tube inside, not easy broken
- 100% qualified, prolong use life, reduce the Maintenance cost
- The operator can confirm if the splicing is successful by the monitor of fusion splicing machine, to make it have more stability
|Suitable Cable OD||2*3 ftth drop cable, 2.0mm indoor cable|
|Optical fiber diameter||125μm|
|Tight buffer diameter (μm)||900μm|
|Fiber mode||Single & multi mode|
|Operation time||About 120s ( no fiber cut )|
|Insert loss||≤ 0.5dB(1310nm & 1550nm)|
|Return loss||> 40dB|
|Tensile strength||>50 N|
|On-line tensile strength (20 N)||IL ≤ 0.2dB|
|Mechanical durability (500 times)||IL ≤ 0.2dB|
|Drop-off test (drop-off height 4m, once per direction, totally 3 times)||IL ≤ 0.2dB|
- Material Preparation Time: 3 days (or inventory)
- Production & Assembly Time 7 days
- Testing & Packaging Time: 2 days
- Total Delivery Time: 12 days in 50,000pcs for safe delivery lead time.
- The faster delivery could be negotiable.
Kocent Optec Limited is one of leader supplier of fiber optic fast connector in China.
Most of our fast connector meet Telecom requirement as Viettel, VNPT, ...
Logo print is free for quantity more than 10k (pcs).
Logo Lettering is free for quantity more than 100k (pcs)
Contact with our sales team for your OEM and ODM order.
