60mm Length UPC SC Fiber Optic Connector FTTH GPON KCO-SCU-6001

large.img.alt
large.img.alt

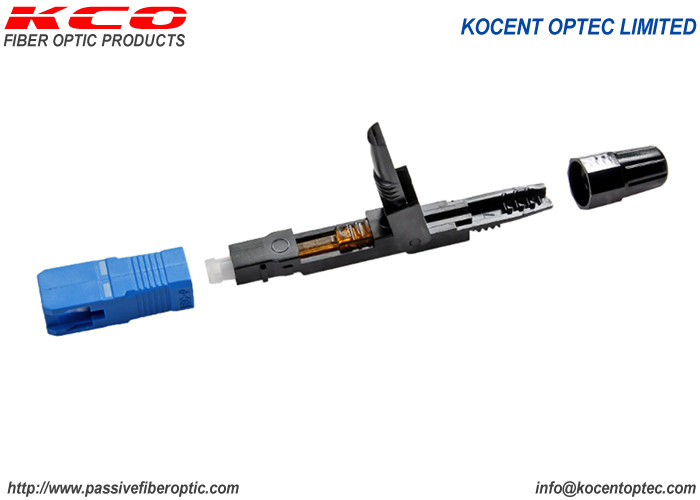

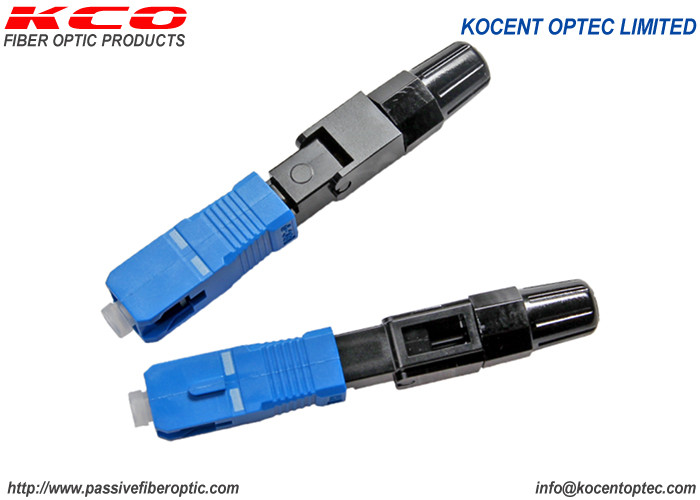

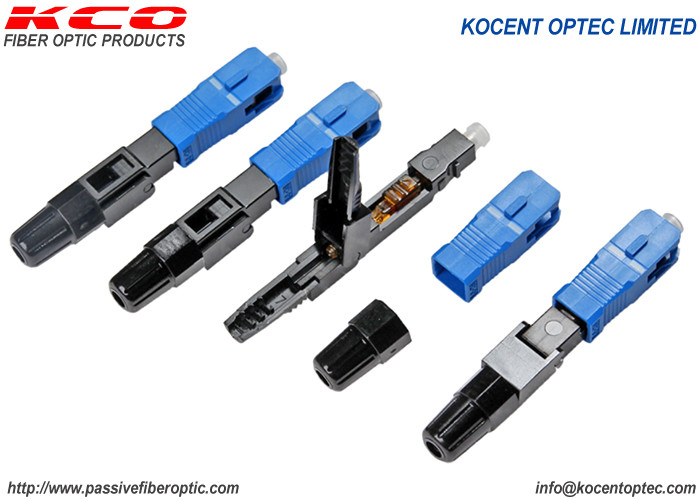

Large Image :  60mm Length UPC SC Fiber Optic Connector FTTH GPON KCO-SCU-6001

Product Details:
Place of Origin: Guangdong, China
Brand Name: KCO
Certification: ISO9001, RoHS
Model Number: KCO-SCU-6001
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: PE bag, carton box, wooden pallet
Delivery Time: 2~5 days after get payment
Payment Terms: Western Union, T/T, L/C
Supply Ability: 100,000pcs/month
Detailed Product Description
P/N: KCO-SCU-6001 Color: Blue
Insertion Loss: 0.5dB Return Loss: 40dB
3D: Pass Length: 60mm
Polishing Type: UPC Conner: Degree
High Light:

UPC SC Fiber Optic Connector

,

60mm Length Fiber Optic Connector

,

GPON Fiber Optic Quick Connector



KCO-SCU-6001 FTTH GPON 60mm Blue Fiber Optic UPC SC Fast Connector



Description:

- The SC Fast Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers.

- The single-mode versions are available with UPC or APC ferrules.

- The SC/UPC fast connector is the most popular type of fast connector in the market, which features a pre-polished ferrule that couples to the fiber being terminated by precision mechanical alignment, insuring low loss with a proprietary gel.

- This SC/UPC Fast Connector offers convenience in assembling and strong stability.

- It allows simple optical core connection without any additional practices, or adhesives.

- It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole.

- It reconnects the cables and reduces the connection defect rate by an installer error in the field.

- It is using large in Telecom FTTH.





Features

Fast and easy installation.

- No special assembly tool

- Can be reconnected in the field

- No epoxy or polishing required

- Easily assembled with one-touch, push-pull system

- Compatible with both 3mm drop cable and 3x2mm flat cable
- Field-termination connector with no epoxy or polishing required
- No matching gel enables low reflection and high reliability
- Splicing point is inside of the connector.

- No additional splicing work required
- The fusion splice position can be protected by the heat shrinkable tube inside, not easy broken
- 100% qualified, prolong use life, reduce the Maintenance cost
- The operator can confirm if the splicing is successful by the monitor of fusion splicing machine, to make it have more stability



Applications:

- Fiber to the building (FTTB)

- Fiber To The Office (FTTO)

- Fiber to The Home (FTTH)

- Cable Television (CATV)

- Passive optical networks

- PON & GPON

- Metro

- Test Equipment

- Asynchronous Transmission Mode (ATM)

- Local Area Networks (LAN)









Technical Data:

Item KCO-SCU-6001
Suitable Cable OD 2*3 ftth drop cable, 2.0mm indoor cable
Optical fiber diameter 125μm
Tight buffer diameter (μm) 900μm
Fiber mode Single & multi mode
Operation time About 120s ( no fiber cut )
Insert loss ≤ 0.5dB(1310nm & 1550nm)
Return loss > 40dB
Tensile strength >50 N
Using temperature -40~+75°C
On-line tensile strength (20 N) IL ≤ 0.2dB
Mechanical durability (500 times) IL ≤ 0.2dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times) IL ≤ 0.2dB


Delivery Time:

- Material Preparation Time: 3 days (or inventory)

- Production & Assembly Time 7 days

- Testing & Packaging Time: 2 days

- Total Delivery Time: 12 days in 50,000pcs for safe delivery lead time.

- The faster delivery could be negotiable.



Factory photo:

Kocent Optec Limited is one of leader supplier of fiber optic fast connector in China.
Most of our fast connector meet Telecom requirement as Viettel, VNPT, ...

Logo print is free for quantity more than 10k (pcs).

Logo Lettering is free for quantity more than 100k (pcs)

Contact with our sales team for your OEM and ODM order.

60mm Length UPC SC Fiber Optic Connector FTTH GPON KCO-SCU-6001 0



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
