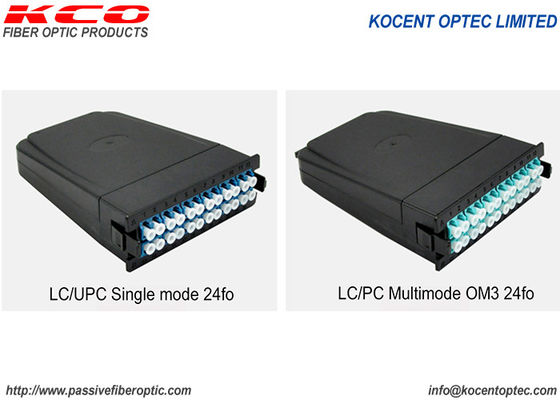

12fo 24fo MPO Cassette MTP Module for Patch Panel with 480x245x1U Rack Mountable Design

  • 12fo 24fo MPO Cassette MTP Module for Patch Panel with 480x245x1U Rack Mountable Design
  • 12fo 24fo MPO Cassette MTP Module for Patch Panel with 480x245x1U Rack Mountable Design
  • 12fo 24fo MPO Cassette MTP Module for Patch Panel with 480x245x1U Rack Mountable Design
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-MPO-Module
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 MPO, MTP Connector 2 LC Duplex
Size 480x245x1U Capacity 24 Cores
Color Black Length 0.2m, 0.3m
Module Type Fix Type Module Core No. 12fo, 24fo
Logo Print Customized OEM Service Yes
Highlight

24fo MPO Cassette

,

SM OM3 MPO Cassette

,

Patch Panel MTP Modules
Leave a Message
Product Description
12fo 24fo MPO Cassette SM OM3 OM4 OM5 MTP Modules For Patch Panel
Product Description

MTP/MPO Cassette Modules provide secure transition between MTP/MPO and LC or SC discrete connectors, designed for interconnecting MTP/MPO backbones with LC or SC patching.

  • Modular system enables rapid deployment of high-density data center infrastructure with improved troubleshooting and reconfiguration capabilities
  • Mountable in 1U, 2U or 3U 19" multislot chassis for flexible installation
  • Factory-controlled and tested MTP/MPO-LC fanouts ensure optimal optical performance and reliability
  • Available in Low Loss MTP/MPO Elite and LC/SC Premium versions for demanding high-speed networks
  • Front cassette features 12-port LC duplex adapter, rear cassette includes 2-port MPO adapter
  • Supports up to 24 fibers with multiple polarity options
  • Plug-and-play architecture simplifies data center fiber infrastructure deployment and maintenance
  • Factory-terminated and rigorously tested to ensure minimal insertion loss
Key Features
  • Constructed with high-strength steel tape for durability
  • Standard 19" size compatible with rack-type cabinets for easy installation
  • Hyperdense design - 1U rack accommodates 96 fibers for space efficiency
  • Generous internal space maintains proper fiber bend radius
  • Comprehensive system solution for complete connectivity
  • Effective cable management system for easy identification
  • Lightweight yet strong construction with excellent shock and dust resistance
  • High patch field density reduces required rack units
  • Simplifies network deployment, moves, adds, and changes

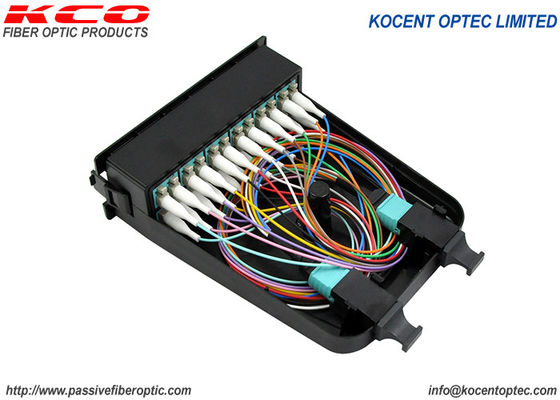

12fo 24fo MPO Cassette MTP Module for Patch Panel with 480x245x1U Rack Mountable Design 0
MTP/MPO Connector Specifications
Type Single Mode (APC Polish) Single Mode (UPC Polish) Multi Mode (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Max. Insertion Loss Elite Low Loss ≤0.35 dB
Standard ≤0.75dB		 Elite Low Loss ≤0.35 dB
Standard ≤0.75dB		 Elite Low Loss ≤0.35 dB
Standard ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull test 1000 times＜0.5 dB
Interchange ＜0.5 dB
Anti-tensile force 15kgf
Technical Specifications
Fiber Capacity of panel Max 96fo
Panel Connector LC duplex
Type Drawting
Dimension 19''1U
Material Cold Rolled Steel or Aluminum
Storage Temperature -45~+65℃
Thickness 0.6 0.8 1.0 1.2 1.5mm
Accessories Cable ties, mounting ear screws, and spiral wrap tube
MPO type SM: G652D, G657A1, G657A2
MM: OM1, OM2, OM3, OM4, OM5
Cable Cover LSZH
Length 0.3m, 0.5m
Related Products
12fo 24fo MPO Cassette MTP Module for Patch Panel with 480x245x1U Rack Mountable Design 1 12fo 24fo MPO Cassette MTP Module for Patch Panel with 480x245x1U Rack Mountable Design 2
OEM/ODM Service

We offer custom branding services for your products including cables, packaging, labels, and more. Contact our sales team for personalized support.

Packing & Shipping

Packing: Standard export packing options including carton boxes, wooden boxes, and pallets.

Shipping Methods:

  • International express: UPS, TNT, DHL
  • International air: CA, AA, EA
  • Sea freight: Huyndai, COSCO
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
