8CH 1U 19'' Rack Mountable CWDM Patch Panel for 3G 4G 5G Telecom Tower with LC UPC Connectors

  • 8CH 1U 19'' Rack Mountable CWDM Patch Panel for 3G 4G 5G Telecom Tower with LC UPC Connectors
  • 8CH 1U 19'' Rack Mountable CWDM Patch Panel for 3G 4G 5G Telecom Tower with LC UPC Connectors
  • 8CH 1U 19'' Rack Mountable CWDM Patch Panel for 3G 4G 5G Telecom Tower with LC UPC Connectors
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-CDWM-MD-PN-8CH-LCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Steel Tape Patch Panel Channel No. 8CH
Fiber Type Single Mode Pigtail Length 0.3m
Cable Dia. 0.9mm Terminal Connector LC/UPC
IL ≤2.0dB RL ≥45dB
Fiber No. Dual Fiber (mux + Demux) Size 1U
Highlight

8CH CWDM Rack Mountable Patch Panel

,

1U 19'' Rack Mountable Patch Panel

,

LC UPC CWDM Multiplexer
Leave a Message
Product Description
8CH CWDM 1U 19'' Rack Mountable Patch Panel LC UPC 3G 4G 5G Telecom Tower
Dual Fiber 8CH CWDM LC/UPC 1U 19'' Rack Mountable Patch Panel for 3G, 4G, and 5G Telecom Tower applications. CWDM (Coarse Wavelength Division Multiplexing) is a standardized WDM technology that uses up to 20 different wavelengths for data transmission over a single fiber.

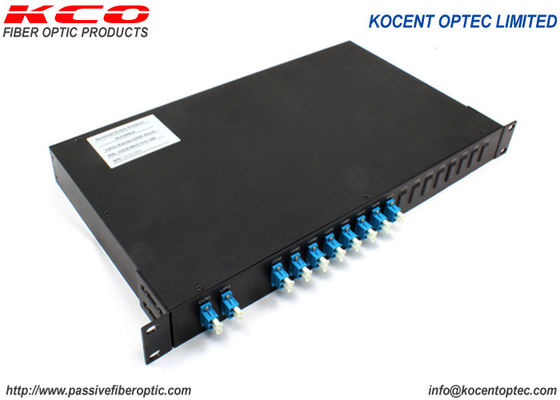

8CH 1U 19'' Rack Mountable CWDM Patch Panel for 3G 4G 5G Telecom Tower with LC UPC Connectors 0
Key Features
  • Channel options: 4CH, 8CH, 16CH (maximum 18CH)
  • Standard 19-inch design fits data center cabinets
  • Customizable pigtail length and terminal connectors
  • Low Insertion Loss and PDL (Polarization Dependent Loss)
  • High Isolation and excellent channel-to-channel uniformity
  • Compact design with wide operating wavelength (1260nm to 1620nm)
Applications
  • WDM systems
  • Passive Fiber Optic Networks
  • 3G, 4G, 5G Mobile Fronthaul
  • Data Center connectivity
  • Metro/Access networks
  • Fiber optical amplifier systems
  • CATV systems
Technical Specifications
Parameter 4 Channel 8 Channel 18 Channel
Channel Wavelength (nm) 1270~1610
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Insertion Loss (dB) ≤1.6 ≤2.5 ≤3.0
Channel Uniformity (dB) ≤0.6 ≤1.0 ≤1.5
Isolation (dB) Adjacent: >30 | Non-adjacent: >40
Return Loss (dB) >45
Operating Temperature (°C) -5~+75
OEM/ODM Services
Custom branding available for cables, packaging, labels, and products. Contact our sales team for personalized solutions.
Packaging & Shipping
Standard export packing options include carton boxes, wooden boxes, and pallets. Shipping methods: International express (UPS, TNT, DHL), Air freight (CA, AA, EA), Sea freight from major Chinese ports.

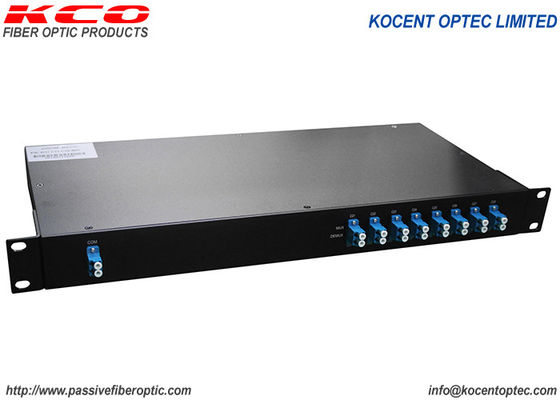

8CH 1U 19'' Rack Mountable CWDM Patch Panel for 3G 4G 5G Telecom Tower with LC UPC Connectors 1
