8CH CWDM 1U 19'' Rack Mountable Patch Panel LC UPC 3G 4G 5G Telecom Tower

  • 8CH CWDM 1U 19'' Rack Mountable Patch Panel LC UPC 3G 4G 5G Telecom Tower
  • 8CH CWDM 1U 19'' Rack Mountable Patch Panel LC UPC 3G 4G 5G Telecom Tower
  • 8CH CWDM 1U 19'' Rack Mountable Patch Panel LC UPC 3G 4G 5G Telecom Tower
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-CDWM-MD-PN-8CH-LCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Steel Tape Patch Panel Channel No. 8CH
Fiber Type Single Mode Pigtail Length 0.3m
Cable Dia. 0.9mm Terminal Connector LC/UPC
IL ≤2.0dB RL ≥45dB
Fiber No. Dual Fiber (mux + Demux) Size 1U
High Light

8CH CWDM Rack Mountable Patch Panel

,

1U 19'' Rack Mountable Patch Panel

,

LC UPC CWDM Multiplexer
Leave a Message
Product Description

Dual Fiber 8CH CWDM LC/UPC 1U 19'' Rack Mountable Patch Panel 3G 4G 5G Telecom Tower



Descriptions:

- CWDM(Coarse Wavelength Division Multiplexing) is a standardized WDM technology that uses up to 20 different wavelengths for data transmission over a single fiber.

- CWDM maximum can multiplex 18 channel of wavelength.

- In contrast to Dense WDM(DWDM), CWDM uses only a "coarse" wavelength grid, so the underlying optical component technology is simpler. This makes CWDM systems very cost-effective, but also limits them in terms of total capacity.

- 19 inch CWDM patch panel can fit with standard 19 inch cabinet for data center.

- CWDM can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost low power consumption and small compact, it is widely used in metro aggregation and access layer to do transmission on a short time.

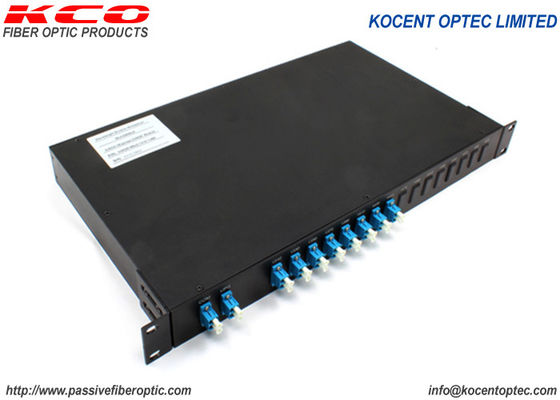

8CH CWDM 1U 19'' Rack Mountable Patch Panel LC UPC 3G 4G 5G Telecom Tower 0



Features:

- Channel number: 4CH, 8CH, 16CH, maximum 18CH.

- Standard 19 inch, fit with data center cabinet

- Pigtail length: customized

- Teminal connector: customized

- Low Insertion Loss
- Low PDL

- High Isolation
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength
- From 1260nm to 1620nm or 1261nm to 1621nm.



Applications:

- WDM system

- Passive Fiber Optic Networks

- 3G, 4G, 5G Mobile Fronthaul

- Data Center

- Metro/Access networks
- Fiber optical amplifier
- CATV system









Specifications:

Parameter 4 Channel 8 Channel 18 Channel
Mux Demux Mux Demux Mux Demux
Channel Wavelength (nm) 1270~1610
Center wavelength Accuracy (nm) ±0.5
Channel Spacing (nm) 20
Channel Passband (@-0.5dB bandwidth (nm) >13
Insertion Loss (dB) ≤1.6 ≤2.5 ≤3.0
Channel Uniformity (dB) ≤0.6 ≤1.0 ≤1.5
Channel Ripple (dB) 0.3
Isolation (dB) Adjacent N/A >30 N/A >30 N/A >30
Non-adjacent N/A >40 N/A >40 N/A >40
Inertion Loss Temperature Sensitivity (dB/°C) <0.005
Wavelength Temperature Shifting (nm/°C) <0.002
Polarization Dependent Loss (dB) <0.1
Polarization Mode Dispersion <0.1
Directivity (dB) >50
Return Loss (dB) >45
Maximum Power Handling (mW) 300
Opterating Temperature (°C) -5~+75
Storage Temperature (°C) -40~85
Package dimension (mm) 19'' 1U



Relation products:

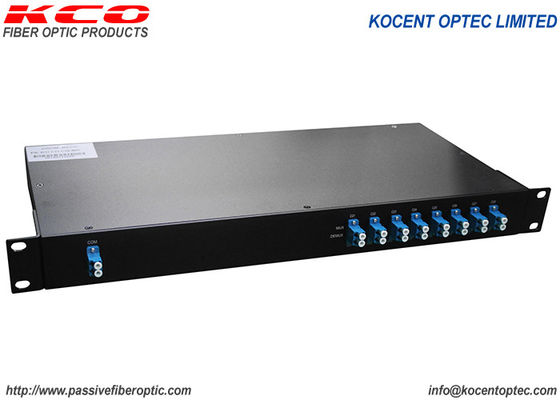

8CH CWDM 1U 19'' Rack Mountable Patch Panel LC UPC 3G 4G 5G Telecom Tower 1



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
