14 Slot 19'' 3U PLC Fiber Optics Splitter Rack Mountable Patch Panel 1*2 1*4 1*8 1*16
Place of Origin | Guangdong, China |
---|---|
Brand Name | KCO, Kocent Optec Limited |
Certification | ISO9001, RoHS |
Model Number | KCO-3U-LGX-Splitter-14-4SCU |
Minimum Order Quantity | Negotiation |
Price | Negotiation |
Packaging Details | Carton box, wooden pallet |
Delivery Time | 5~8 days |
Payment Terms | Western Union, T/T, L/C |
Supply Ability | 20,000 set/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMaterial | Steel Tape | High | 3U |
---|---|---|---|
Splitter Type | Mini Tube Type | Split Way | 1x4 1*4 Or Customized |
Connector | SCUPC SCAPC | Cable | 0.9mm |
Size | 19'' | Application | Indoor For Cabinet |
Highlight | 3U PLC Fiber Optic Splitter,19'' Fiber Optic Splitter,3U Rack Mount Patch Panel |
14 Slot 19'' 3U PLC Fiber Optic Splitter Rack Mount Patch Panel
Description:
- PLC splitter, also called Planar Waveguide Circuit splitter, is a device used to divide one or two light beams into multiple light beams uniformly or combine multiple light beams to one or two light beams. It is a passive optical device with many input and output terminals, especially applicable to PON (EPON, GPON, BPON, FTTX, etc.) to connect the MDF (main distribution frame) and the terminal equipment and to branch the optical signal.
- PLC splitter provides a low-cost light distribution solution with high stability and reliability. PLC splitters can offer a splitting ratio of up to 1x64, which is generally higher than the splits of FBT splitter that another common type of optical splitter.
- Fiber Optic Distribution Frame is a high-capacity, high-density fiber distribution frame, suitable composition and distribution of fibers in the optical access network to achieve the fiber optic lines connection, distribution and scheduling, the 19” rack-mounted patch panel, and fiber optic splitter can be loaded inside.
- This 16 slot LGX Fiber Optical Splitter is special design for our 3U Splitter Chassic Patch Panel.
- With small size design, it can save more space for your cabinet.
- Standard 19'' Rack Mount Type Chassis Box, it copy design from Media Converter Chassis Box to save more space and easier to operate.
- Each Splitter Chassic Box can install maximum 16 pcs of small LGX box.
OEM Service:
- The box can make by steel tape with thickness 0.8mm, 1.0mm and 1.2mm.
- Paint color can choose grey, white or black or as customer's request.
- OEM service is available.
- Splitter and adapter installation charging is free if you buy all patch panel, splitter and adapter from us.
- Logo printing is free for all of order with quantity more than 100pcs.
Features:
- Low insertion loss.
- Low Polarization Dependent Loss.
- Excellent Environmental Stability.
- Excellent Mechanical Stability.
Applications:
- Fiber to The Point (FTTX).
- Fiber to The Home (FTTH).
- Passive Optical Networks (PON).
- Gigabit Passive Optical Networks (GPON).
- Local Area Networks (LAN).
- Cable Television (CATV).
- Test Equipment.

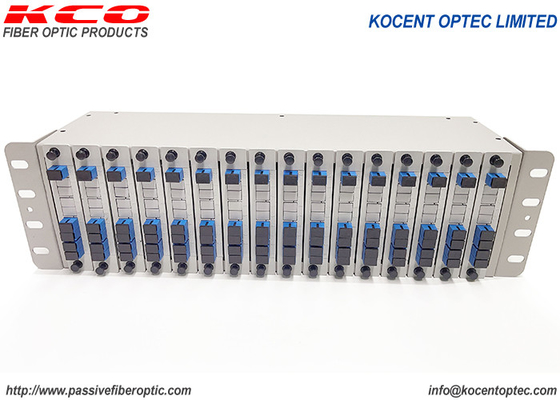

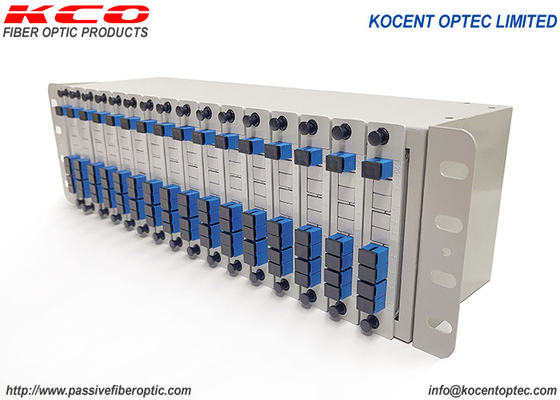

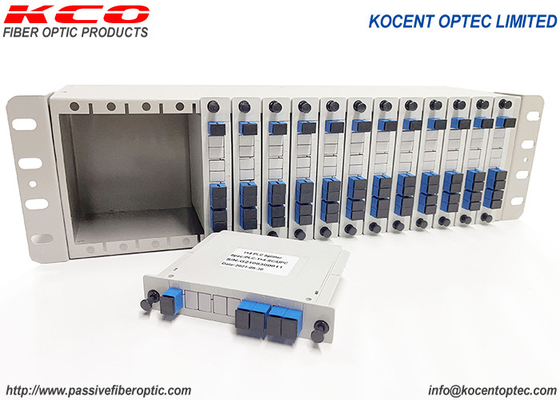

Product picture:
Specifications:
Fiber length | 1m or custom length | |||||
Connector Type | Custom specified | |||||
Optical Fiber Type | Corning SMF-28e fiber, G657A1 or as customized | |||||
Directivity (dB) Min * | 55 | |||||
Return Loss (dB) Min * | 55 (50) | |||||
Power Handling (mW) | 300 | |||||
Operating Wavelength (nm) | 1260 ~ 1650 | |||||
Operating Temperature(°C) | -40~ +85 | |||||
Storage Temperature(°C) | -40 ~ +85 | |||||
Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 |
Insertion Loss(dB) Typical | 3.6 | 7.1 | 10.2 | 13.5 | 16.5 | 20.5 |
Insertion Loss (dB) Max | 4.0 | 7.3 | 10.5 | 13.7 | 16.9 | 21.0 |
Loss Uniformity (dB) | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2 |
PDL(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 |
Temp. Dependent Loss (-40~85 ) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 |
Port Configuration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
Insertion Loss(dB) Typical | 3.8 | 7.4 | 10.8 | 14.2 | 17 | 21 |
Insertion Loss (dB) Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.5 | 21.5 |
Loss Uniformity (dB) | 1 | 1.4 | 1.5 | 2 | 2.5 | 2.5 |
PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 |
Wavelength Dependent Loss(dB) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 |
Temp. Dependent Loss(-40~+85°C) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1 |
Packing information:
- 1pc/small carton box/ 45*15*14cm/1.85kg
(full loaded 1*4 PLC Splitter: 3.3kg)
(full loaded 1*8 PLC Splitter: 3.5kg)
- 8pcs/carton box/ 46*30*59cm/16kg
