FTTH Optical Fiber OTDR Launch Cable Box Single Mode G657A2 Test Extension Line 500m

  • FTTH Optical Fiber OTDR Launch Cable Box Single Mode G657A2 Test Extension Line 500m
  • FTTH Optical Fiber OTDR Launch Cable Box Single Mode G657A2 Test Extension Line 500m
  • FTTH Optical Fiber OTDR Launch Cable Box Single Mode G657A2 Test Extension Line 500m
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-LB-1000D-SCU
Minimum Order Quantity 1pc
Price 10$-80$
Packaging Details carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 200,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-LB-500A2-SCU Application OTDR Testing, Cable Testing
Core Number Simplex Connector SC/UPC, SC/APC
Length 1000m, 1km Fiber Single Mode G652D
High Light

Optical Fiber OTDR Launch Cable Box

,

FTTH OTDR Launch Cable Box

,

500m otdr launch box
Leave a Message
Product Description

FTTH Optical Fiber OTDR Launch Cable Box Single Mode G657A2 Test Extension Line 500m



OTDR Launch Cable Box Descriptions:
- Mini type launch cable designed to aid in the testing of fiber optic cable when using an OTDR.

- OTDR Launch Cable Box is designed to aid in the testing of fiber optic cable when using an OTDR Launch Cable Box is used with Optical Time Domain Reflectometers (OTDRs) to help minimize the effects of the OTDRs launch pulse on measurement uncertainty.

- Standard boxes along with custom configurations for OTDR applications.
- Compact and rugged packaging.
- Portable for field use.
- Prevents fiber damage and ensures accurate results.
- Pulse suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.
- Compound latch for positive seal and easy opening with locking feature.
- Water and dust prove allowing the unit to be taken into almost any environment.
- Case can house up to 2,000 meters of fiber.
- Auto Purge Valve for changes in altitude and temperature.



Features:
- Case can hold up to 20000 meters of fiber.

- Many kinds of connectors are available, such as: SC/UPC, SC/APC, FC/UPC, FC/APC, E2000/UPC, E2000/APC, ect

- Handy, lightweight, powerful, tablet-inspired design, small volume, easy to carry.
- Help to make a more precise measurement with an OTDR.

- Compound Latch for positive seal and easy opening with locking feature.

- Non­metal construction will not dent, corrode, or conduce electricity.

- Water resistant, crushproof and dust proof.

- Discloses the insertion loss and reflectance of the near-end connection.
- Built-in Cable Management Helps to reduce cable stress and save space.

- Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.



Specifications:



Product Name
LC/UPC-FC/UPC 1KM OTDR Launch Cable Box, OTDR Dead Zone Eliminator,
Fiber ring otdr launch cable 1000M
Fiber Type
9/125 Singlemode
Length
1KM
Box Material
Plastic
Connector
SC/UPC-SC/UPC
Typical Loss
< 0.5dB@1310nM for 1000 meters
Dimension
238x141x66mm
Weight
600gram



Informations:

- Connector type: SC, LC, ST, FC, E2000 etc.
- Length: from 300m to 20000m.
- Box Material: Plastic.
- Box Color: Yellow.
- Operating temperature -40°C to +80°C
- Type of fiber: Single mode, Multimode, customized
- Back Reflection(RL) < -55 DB

(1) Apex offset: 0 - 50 um
(2) Radius of curvature 7 – 25 nm
(3) Fiber roughness: 0 – 25 nm
(4) Ferrule roughness: 0-50 nm

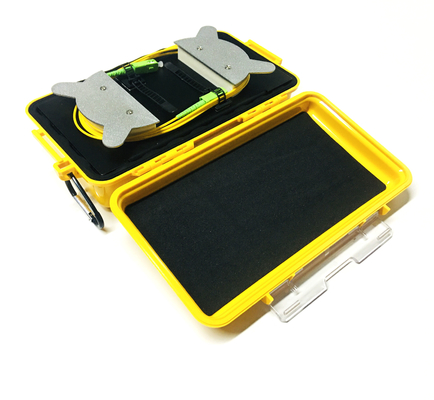

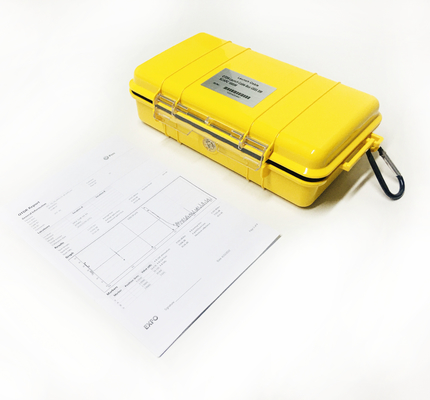

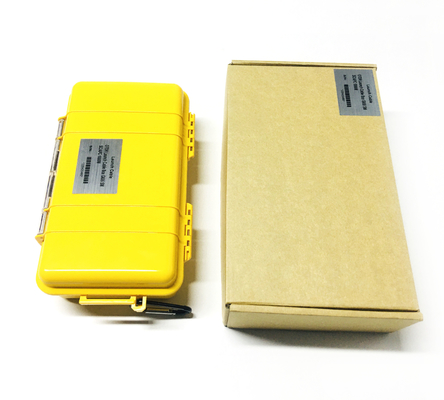

Product pictures:

FTTH Optical Fiber OTDR Launch Cable Box Single Mode G657A2 Test Extension Line 500m 0





OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
